SPI调试指南
SPI硬件支持
X5共支持7路SPI控制器，其中6路(spi0-spi5)位于LSIO子系统，1路(spi6)位于DSP子系统。 所有SPI控制器均支持主/从模式。
Linux SPI驱动框架介绍
- spi driver层：主要实现对SPI硬件IP的操作，另外还实现了spi framework定义的接口。
- spi framework层：可以理解为spi driver的适配层，对下层定义了一组driver层需要实现的接口，对上提供了通用接口屏蔽了硬件细节。
- spi char device层：为用户空间提供节点，方便用户空间与内核空间进行数据交换。
代码路径
X5使用新思的ssi控制器，驱动代码位于：drivers/spi目录下，主要有三个文件：
drivers/spi/spi-dw-core.c
drivers/spi/spi-dw-mmio.c
drivers/spi/spi-dw-dma.c
控制器硬件说明
X5的所有SPI均控制器可以运行Master/Slave模式。Master及Slave的运行限制如下：
- SPI-Master：最高频率50MHz
- SPI-Slave：最高频率32MHz
X5的所有SPI控制器均可以运行在中断/DMA模式。中断模式运行限制如下：
- SPI-Slave：
- Rx：CPU定频在1.5GHz时，可以达到32MHz
- Tx：CPU定频在1.5GHz时，可以达到16MHz
- SPI-Master：均可正常通讯。
DTS配置说明
X5 SPI控制器的设备树定义位于SDK包的kernel文件夹下的arch/arm64/boot/dts/hobot/x5.dtsi文件内。
注意：x5.dtsi中的节点主要声明SoC共有特性，和具体电路板无关，一般情况下不用修改。
X5 SPI控制器默认关闭，请根据实际硬件情况，在对应的DTS文件内使能相应的SPI控制器。
以使能SPI2为例：
&spi2 {
status = "okay";
pinctrl-names = "default";
pinctrl-0 = <&pinctrl_spi2>;
};
DTS配置SPI使用DMA
如果需要使用DMA，则需要在对应的DTS文件内绑定对应的DMA握手，以SPI2为例：
&spi2 {
status = "okay";
pinctrl-names = "default";
pinctrl-0 = <&pinctrl_spi2>;
dma-names = "tx", "rx";
dmas = <&axi_dmac 25>, <&axi_dmac 24>;
};
SPI6绑定时需要指定dsp_axi_dma，如下所示：
&spi6 {
status = "okay";
pinctrl-names = "default";
pinctrl-0 = <&pinctrl_dsp_spi>;
dma-names = "tx", "rx";
dmas = <&dsp_axi_dma 21>, <&dsp_axi_dma 20>;
};
SPI DMA握手列表如下：
| SPI | DMA TX | DMA RX |
|---|---|---|
| SPI0 | 20 | 21 |
| SPI1 | 22 | 23 |
| SPI2 | 24 | 25 |
| SPI3 | 26 | 27 |
| SPI4 | 28 | 29 |
| SPI5 | 30 | 31 |
| SPI6 | 21 | 22 |
SPI功能验证
本小节主要介绍X5 SPI的功能验证，主要包括环境配置，测试命令执行及测试代码等。
测试环境准备
确认内核的CONFIG_SPI_SPIDEV为使能状态:
/* arch/arm64/configs/hobot_x5_soc_defconfig */
...
CONFIG_SPI_SPIDEV=m
...
确认在当前硬件的DTS内需要测试的SPI控制器节点下创建了一个dummy从设备：
&spi2 {
spidev@2 {
compatible = "dr,x5-spidev";
spi-max-frequency = <32000000>;
reg = <0>;
};
}
SPI 内部回环测试
SPI内部回环测试仅SPI Master支持，其原理是SPI硬件IP的tx fifo将数据发给rx fifo从而形成回环。
测试命令及结果参考如下：
# modprobe spidev
# ./spidev_tc -D /dev/spidev2.0 -v -s 1000000 -m 3 -l -e 10 -t 1
spi mode: 0x20
bits per word: 8
max speed: 1000000 Hz (1000 KHz)
userspace spi read and write test, len=10 times=1
test, times=0
TX | 67 C6 69 73 51 FF 4A EC 29 CD __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __
RX | 67 C6 69 73 51 FF 4A EC 29 CD __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __
SPI 外部回环测试

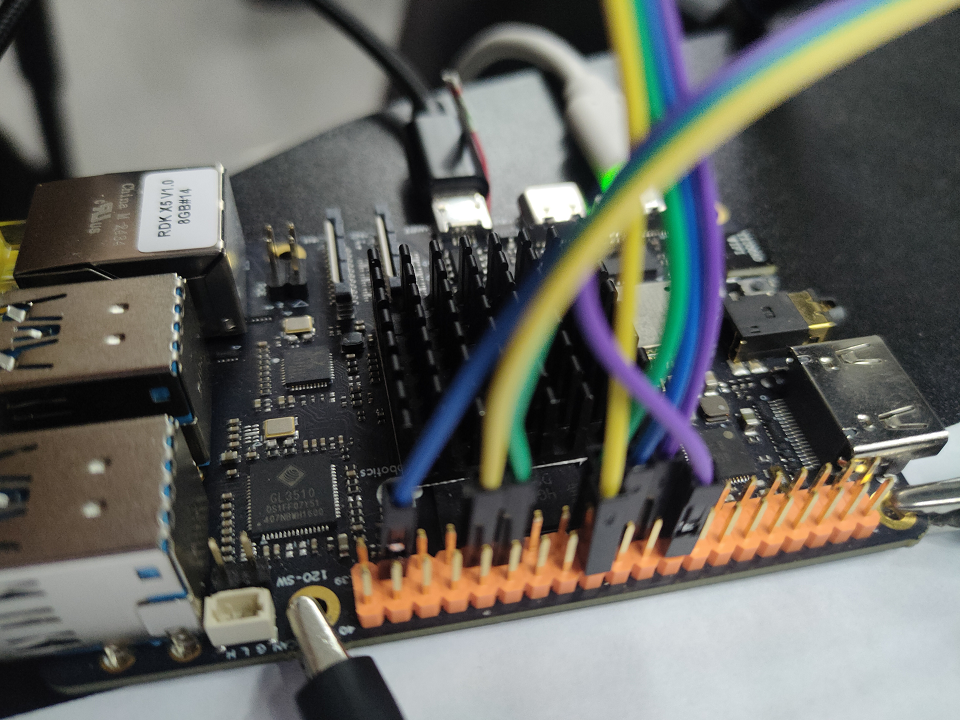

SPI 外部回环测试是指定一个SPI Slave，一个SPI Master，对应线连接进行的测试。 以SPI2作为Slave，SPI4作为Master为例： 修改SPI2 DTS以支持Slave功能：
&spi2 {
status = "okay";
pinctrl-names = "default";
pinctrl-0 = <&pinctrl_spi2>;
spi-slave;
slave@0 {
compatible = "dr,x5-spidev";
spi-max-frequency = <32000000>;
reg = <0>;
};
}
修改SPI4 DTS以支持Master功能：
&spi4 {
status = "okay";
pinctrl-names = "default";
pinctrl-0 = <&pinctrl_spi4>;
spidev@0 {
compatible = "dr,x5-spidev";
spi-max-frequency = <32000000>;
reg = <0>;
};
}
测试命令及结果参考如下(以SPI2为Slave，SPI4为Master)：
# ./spidev_tc -D /dev/spidev2.0 -v -s 1000000 -m 2 -e 10 -t 1&
bits per word: 8
max speed: 1000000 Hz (1000 KHz)
userspace spi write test, len=10 times=1
test, times=0
TX | 67 C6 69 73 51 FF 4A EC 29 CD __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __
# ./spidev_tc -D /dev/spidev4.0 -v -s 1000000 -m 1 -e 10 -t 1&
spi mode: 0x0
bits per word: 8
max speed: 1000000 Hz (1000 KHz)
userspace spi read test, len=10 times=1
test, times=0
RX | 67 C6 69 73 51 FF 4A EC 29 CD __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __
[2]+ Done ./spidev_tc -D /dev/spidev2.0 -v -s 1000000 -m 1 -e 10 -t 1
[1]+ Done ./spidev_tc -D /dev/spidev4.0 -v -s 1000000 -m 2 -e 10 -t 1
备注
在进行外部回环测试时，需要先执行SPI Slave程序，再执行SPI Master程序。假如先执行SPI Master程序，后执行SPI Slave程序，可能会由于Master与Slave不同步导致SPI接收数据出现丢失。同理，spidev_tc的-t参数最好只指定一次，如果想进行多次测试，可以写脚本多次执行测试程序，来保证Master与Slave之间的同步。
附录
附录1 测试用例源码：spidev_tc.c
/*
* SPI testing utility (using spidev driver)
*
* Copyright (c) 2007 MontaVista Software, Inc.
* Copyright (c) 2007 Anton Vorontsov <avorontsov@ru.mvista.com>
*
* This program is free software; you can redistribute it and/or modify
* it under the terms of the GNU General Public License as published by
* the Free Software Foundation; either version 2 of the License.
*
* Cross-compile with cross-gcc -I/path/to/cross-kernel/include
*/
#include <stdint.h>
#include <unistd.h>
#include <stdio.h>
#include <stdlib.h>
#include <string.h>
#include <getopt.h>
#include <fcntl.h>
#include <time.h>
#include <sys/ioctl.h>
#include <linux/ioctl.h>
#include <sys/stat.h>
#include <linux/types.h>
#include <linux/spi/spidev.h>
#define ARRAY_SIZE(a) (sizeof(a) / sizeof((a)[0]))
static void pabort(const char *s)
{
perror(s);
abort();
}
static const char *device = "/dev/spidev1.1";
static uint32_t mode;
static uint8_t bits = 8;
static char *input_file;
static char *output_file;
static uint32_t speed = 500000;
static uint16_t delay;
static int verbose;
static int transfer_size;
static int iterations;
static int interval = 5; /* interval in seconds for showing transfer rate */
static int rw_mode = 0; //1: read, 2: write, 3: write and read
static int rw_len = 4;
static int rw_times = 5;
static int frameid_flag = 0;
static int crc_flag = 0;
static int heart_flag = 0;
static uint32_t tx_frameid = 0, rx_frameid = 0;
static uint32_t heart_interval = 5; // 5s
uint8_t default_tx[] = {
0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF,
0x40, 0x00, 0x00, 0x00, 0x00, 0x95,
0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF,
0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF,
0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF,
0xF0, 0x0D,
};
uint8_t heart_pack[] = {
0xAA, 0x55, 0xAA, 0x55,
0xAA, 0x55, 0xAA, 0x55,
0xAA, 0x55, 0xAA, 0x55,
0xAA, 0x55, 0xAA, 0x55,
};
uint8_t default_rx[ARRAY_SIZE(default_tx)] = {0, };
char *input_tx;
/** CRC table for the CRC-16. The poly is 0x8005 (x^16 + x^15 + x^2 + 1) */
static uint16_t const crc16_table[256] = {
0x0000, 0xC0C1, 0xC181, 0x0140, 0xC301, 0x03C0, 0x0280, 0xC241,
0xC601, 0x06C0, 0x0780, 0xC741, 0x0500, 0xC5C1, 0xC481, 0x0440,
0xCC01, 0x0CC0, 0x0D80, 0xCD41, 0x0F00, 0xCFC1, 0xCE81, 0x0E40,
0x0A00, 0xCAC1, 0xCB81, 0x0B40, 0xC901, 0x09C0, 0x0880, 0xC841,
0xD801, 0x18C0, 0x1980, 0xD941, 0x1B00, 0xDBC1, 0xDA81, 0x1A40,
0x1E00, 0xDEC1, 0xDF81, 0x1F40, 0xDD01, 0x1DC0, 0x1C80, 0xDC41,
0x1400, 0xD4C1, 0xD581, 0x1540, 0xD701, 0x17C0, 0x1680, 0xD641,
0xD201, 0x12C0, 0x1380, 0xD341, 0x1100, 0xD1C1, 0xD081, 0x1040,
0xF001, 0x30C0, 0x3180, 0xF141, 0x3300, 0xF3C1, 0xF281, 0x3240,
0x3600, 0xF6C1, 0xF781, 0x3740, 0xF501, 0x35C0, 0x3480, 0xF441,
0x3C00, 0xFCC1, 0xFD81, 0x3D40, 0xFF01, 0x3FC0, 0x3E80, 0xFE41,
0xFA01, 0x3AC0, 0x3B80, 0xFB41, 0x3900, 0xF9C1, 0xF881, 0x3840,
0x2800, 0xE8C1, 0xE981, 0x2940, 0xEB01, 0x2BC0, 0x2A80, 0xEA41,
0xEE01, 0x2EC0, 0x2F80, 0xEF41, 0x2D00, 0xEDC1, 0xEC81, 0x2C40,
0xE401, 0x24C0, 0x2580, 0xE541, 0x2700, 0xE7C1, 0xE681, 0x2640,
0x2200, 0xE2C1, 0xE381, 0x2340, 0xE101, 0x21C0, 0x2080, 0xE041,
0xA001, 0x60C0, 0x6180, 0xA141, 0x6300, 0xA3C1, 0xA281, 0x6240,
0x6600, 0xA6C1, 0xA781, 0x6740, 0xA501, 0x65C0, 0x6480, 0xA441,
0x6C00, 0xACC1, 0xAD81, 0x6D40, 0xAF01, 0x6FC0, 0x6E80, 0xAE41,
0xAA01, 0x6AC0, 0x6B80, 0xAB41, 0x6900, 0xA9C1, 0xA881, 0x6840,
0x7800, 0xB8C1, 0xB981, 0x7940, 0xBB01, 0x7BC0, 0x7A80, 0xBA41,
0xBE01, 0x7EC0, 0x7F80, 0xBF41, 0x7D00, 0xBDC1, 0xBC81, 0x7C40,
0xB401, 0x74C0, 0x7580, 0xB541, 0x7700, 0xB7C1, 0xB681, 0x7640,
0x7200, 0xB2C1, 0xB381, 0x7340, 0xB101, 0x71C0, 0x7080, 0xB041,
0x5000, 0x90C1, 0x9181, 0x5140, 0x9301, 0x53C0, 0x5280, 0x9241,
0x9601, 0x56C0, 0x5780, 0x9741, 0x5500, 0x95C1, 0x9481, 0x5440,
0x9C01, 0x5CC0, 0x5D80, 0x9D41, 0x5F00, 0x9FC1, 0x9E81, 0x5E40,
0x5A00, 0x9AC1, 0x9B81, 0x5B40, 0x9901, 0x59C0, 0x5880, 0x9841,
0x8801, 0x48C0, 0x4980, 0x8941, 0x4B00, 0x8BC1, 0x8A81, 0x4A40,
0x4E00, 0x8EC1, 0x8F81, 0x4F40, 0x8D01, 0x4DC0, 0x4C80, 0x8C41,
0x4400, 0x84C1, 0x8581, 0x4540, 0x8701, 0x47C0, 0x4680, 0x8641,
0x8201, 0x42C0, 0x4380, 0x8341, 0x4100, 0x81C1, 0x8081, 0x4040
};
static inline uint16_t crc16_byte(uint16_t crc, const uint8_t data)
{
return (crc >> 8) ^ crc16_table[(crc ^ data) & 0xff];
}
static uint16_t crc16(uint16_t crc, uint8_t const *buffer, size_t len)
{
while (len--)
crc = crc16_byte(crc, *buffer++);
return crc;
}
static void hex_dump(const void *src, size_t length, size_t line_size,
char *prefix)
{
int i = 0;
const unsigned char *address = src;
const unsigned char *line = address;
unsigned char c;
printf("%s | ", prefix);
while (length-- > 0) {
printf("%02X ", *address++);
if (!(++i % line_size) || (length == 0 && i % line_size)) {
if (length == 0) {
while (i++ % line_size)
printf("__ ");
}
printf(" | "); /* right close */
while (line < address) {
c = *line++;
printf("%c", (c < 33 || c == 255) ? 0x2E : c);
}
printf("\n");
if (length > 0)
printf("%s | ", prefix);
}
}
}
static void hex_dump2(const void *src, size_t length, size_t line_size,
char *prefix)
{
int i = 0;
const unsigned char *address = src;
printf("%s | ", prefix);
while (length-- > 0) {
printf("%02X ", *address++);
if (!(++i % line_size) || (length == 0 && i % line_size)) {
if (length == 0) {
while (i++ % line_size)
printf("__ ");
}
printf("\n");
if (length > 0)
printf("%s | ", prefix);
}
}
printf("\n");
}
/*
* Unescape - process hexadecimal escape character
* converts shell input "\x23" -> 0x23
*/
static int unescape(char *_dst, char *_src, size_t len)
{
int ret = 0;
int match;
char *src = _src;
char *dst = _dst;
unsigned int ch;
while (*src) {
if (*src == '\\' && *(src+1) == 'x') {
match = sscanf(src + 2, "%2x", &ch);
if (!match)
pabort("malformed input string");
src += 4;
*dst++ = (unsigned char)ch;
} else {
*dst++ = *src++;
}
ret++;
}
return ret;
}
static void transfer(int fd, uint8_t const *tx, uint8_t const *rx, size_t len)
{
int ret;
int out_fd;
struct spi_ioc_transfer tr = {
.tx_buf = (unsigned long)tx,
.rx_buf = (unsigned long)rx,
.len = len,
.delay_usecs = delay,
.speed_hz = speed,
.bits_per_word = bits,
};
struct timespec currentTime;
struct timespec currentTime1;
if (mode & SPI_TX_QUAD)
tr.tx_nbits = 4;
else if (mode & SPI_TX_DUAL)
tr.tx_nbits = 2;
if (mode & SPI_RX_QUAD)
tr.rx_nbits = 4;
else if (mode & SPI_RX_DUAL)
tr.rx_nbits = 2;
if (!(mode & SPI_LOOP)) {
if (mode & (SPI_TX_QUAD | SPI_TX_DUAL))
tr.rx_buf = 0;
else if (mode & (SPI_RX_QUAD | SPI_RX_DUAL))
tr.tx_buf = 0;
}
clock_gettime(CLOCK_REALTIME, ¤tTime);
long milliseconds = currentTime.tv_nsec / 1000000;
printf("before trans time: %ld ms\n", milliseconds);
ret = ioctl(fd, SPI_IOC_MESSAGE(1), &tr);
if (ret < 1)
pabort("can't send spi message");
clock_gettime(CLOCK_REALTIME, ¤tTime1);
long milliseconds1 = currentTime1.tv_nsec / 1000000;
printf("after trans time: %ld ms\n", milliseconds1);
printf("diff: %ld ms\n", (milliseconds1 - milliseconds));
if (verbose)
hex_dump(tx, len, 32, "TX");
if (output_file) {
out_fd = open(output_file, O_WRONLY | O_CREAT | O_TRUNC, 0666);
if (out_fd < 0)
pabort("could not open output file");
ret = write(out_fd, rx, len);
if (ret != len)
pabort("not all bytes written to output file");
close(out_fd);
}
if (verbose)
hex_dump(rx, len, 32, "RX");
}
static void transfer2(int fd, uint8_t const *tx, uint8_t const *rx, size_t len)
{
int ret;
int out_fd;
struct spi_ioc_transfer tr = {
.tx_buf = (unsigned long)tx,
.rx_buf = (unsigned long)rx,
.len = len,
.delay_usecs = delay,
.speed_hz = speed,
.bits_per_word = bits,
};
if (mode & SPI_TX_QUAD)
tr.tx_nbits = 4;
else if (mode & SPI_TX_DUAL)
tr.tx_nbits = 2;
if (mode & SPI_RX_QUAD)
tr.rx_nbits = 4;
else if (mode & SPI_RX_DUAL)
tr.rx_nbits = 2;
if (!(mode & SPI_LOOP)) {
if (mode & (SPI_TX_QUAD | SPI_TX_DUAL))
tr.rx_buf = 0;
else if (mode & (SPI_RX_QUAD | SPI_RX_DUAL))
tr.tx_buf = 0;
}
if (verbose && rw_mode >> 1)
hex_dump2(tx, len, 32, "TX");
ret = ioctl(fd, SPI_IOC_MESSAGE(1), &tr);
if (ret < 1) {
//pabort("can't send spi message");
printf("can't send spi message");
} else {
if (output_file) {
out_fd = open(output_file, O_WRONLY | O_CREAT | O_TRUNC, 0666);
if (out_fd < 0)
pabort("could not open output file");
ret = write(out_fd, rx, len);
if (ret != len)
pabort("not all bytes written to output file");
close(out_fd);
}
if (verbose && rw_mode&0x01)
hex_dump2(rx, len, 32, "RX");
}
if (strcmp(tx, rx) != 0) {
printf("SPI transfer failed\n");
exit(-1);
}
}
static void transfer3(int fd, uint8_t const *tx, uint8_t const *rx, size_t len)
{
int ret;
uint8_t const *p = rx;
struct spi_ioc_transfer tr = {
.tx_buf = (unsigned long)tx,
.rx_buf = (unsigned long)rx,
.len = len,
.delay_usecs = delay,
.speed_hz = speed,
.bits_per_word = bits,
};
if (mode & SPI_TX_QUAD)
tr.tx_nbits = 4;
else if (mode & SPI_TX_DUAL)
tr.tx_nbits = 2;
if (mode & SPI_RX_QUAD)
tr.rx_nbits = 4;
else if (mode & SPI_RX_DUAL)
tr.rx_nbits = 2;
if (!(mode & SPI_LOOP)) {
if (mode & (SPI_TX_QUAD | SPI_TX_DUAL))
tr.rx_buf = 0;
else if (mode & (SPI_RX_QUAD | SPI_RX_DUAL))
tr.tx_buf = 0;
}
hex_dump2(tx, len, 32, "TX");
ret = ioctl(fd, SPI_IOC_MESSAGE(1), &tr);
if (ret < 1) {
printf("can't send spi message");
} else {
hex_dump2(rx, len, 32, "RX");
if (frameid_flag) {
uint32_t *pframeid = (uint32_t *)p;
rx_frameid = *pframeid;
p += sizeof(uint32_t);
printf("device = %s, crc_val = %d", device, rx_frameid);
}
if (crc_flag) {
uint16_t crc_val_check = crc16(0, p, sizeof(heart_pack));
p += sizeof(heart_pack);
uint16_t *pcrc_val = (uint16_t *)p;
printf("device = %s, crc_val = %d, crc_val_check = %d", device, *pcrc_val, crc_val_check);
}
}
}
static void print_usage(const char *prog)
{
printf("Usage: %s [-DsbdiolHOLC3vpNR24SImetfch1]\n", prog);
puts(" -D --device device to use (default /dev/spidev1.1)\n"
" -s --speed max speed (Hz)\n"
" -d --delay delay (usec)\n"
" -b --bpw bits per word\n"
" -i --input input data from a file (e.g. \"test.bin\")\n"
" -o --output output data to a file (e.g. \"results.bin\")\n"
" -l --loop loopback\n"
" -H --cpha clock phase\n"
" -O --cpol clock polarity\n"
" -L --lsb least significant bit first\n"
" -C --cs-high chip select active high\n"
" -3 --3wire SI/SO signals shared\n"
" -v --verbose Verbose (show tx buffer)\n"
" -p Send data (e.g. \"1234\\xde\\xad\")\n"
" -N --no-cs no chip select\n"
" -R --ready slave pulls low to pause\n"
" -2 --dual dual transfer\n"
" -4 --quad quad transfer\n"
" -S --size transfer size\n"
" -I --iter iterations\n"
" -m --rw-mode 1 read, 2 write, 3 write and read\n"
" -e --rw-len read or write len\n"
" -t --rw-times read or write times\n"
" -f --frame-id support frame id\n"
" -c --crc support crc\n"
" -h --heart pack for test\n"
" -1 --heart pack interval(default: 5s)\n");
exit(1);
}
static void parse_opts(int argc, char *argv[])
{
while (1) {
static const struct option lopts[] = {
{ "device", 1, 0, 'D' },
{ "speed", 1, 0, 's' },
{ "delay", 1, 0, 'd' },
{ "bpw", 1, 0, 'b' },
{ "input", 1, 0, 'i' },
{ "output", 1, 0, 'o' },
{ "loop", 0, 0, 'l' },
{ "cpha", 0, 0, 'H' },
{ "cpol", 0, 0, 'O' },
{ "lsb", 0, 0, 'L' },
{ "cs-high", 0, 0, 'C' },
{ "3wire", 0, 0, '3' },
{ "no-cs", 0, 0, 'N' },
{ "ready", 0, 0, 'R' },
{ "dual", 0, 0, '2' },
{ "verbose", 0, 0, 'v' },
{ "quad", 0, 0, '4' },
{ "size", 1, 0, 'S' },
{ "iter", 1, 0, 'I' },
{ "rw-mode", 1, 0, 'm' },
{ "rw-len", 1, 0, 'e' },
{ "rw-times", 1, 0, 't' },
{ "frame-id", 0, 0, 'f' },
{ "crc", 0, 0, 'c' },
{ "heart", 0, 0, 'h' },
{ "interval", 0, 0, '1' },
{ NULL, 0, 0, 0 },
};
int c;
c = getopt_long(argc, argv, "D:s:d:b:i:o:lHOLC3NR24p:vS:I:m:e:t:fch1:",
lopts, NULL);
//printf("optind: %d\n", optind);
//printf("optarg: %s\n", optarg);
//printf("option: %c\n", c);
if (c == -1)
break;
switch (c) {
case 'D':
device = optarg;
break;
case 's':
speed = atoi(optarg);
break;
case 'd':
delay = atoi(optarg);
break;
case 'b':
bits = atoi(optarg);
break;
case 'i':
input_file = optarg;
break;
case 'o':
output_file = optarg;
break;
case 'l':
mode |= SPI_LOOP;
break;
case 'H':
mode |= SPI_CPHA;
break;
case 'O':
mode |= SPI_CPOL;
break;
case 'L':
mode |= SPI_LSB_FIRST;
break;
case 'C':
mode |= SPI_CS_HIGH;
break;
case '3':
mode |= SPI_3WIRE;
break;
case 'N':
mode |= SPI_NO_CS;
break;
case 'v':
verbose = 1;
break;
case 'R':
mode |= SPI_READY;
break;
case 'p':
input_tx = optarg;
break;
case '2':
mode |= SPI_TX_DUAL;
break;
case '4':
mode |= SPI_TX_QUAD;
break;
case 'S':
transfer_size = atoi(optarg);
break;
case 'I':
iterations = atoi(optarg);
break;
case 'm':
rw_mode = atoi(optarg);
break;
case 'e':
rw_len = atoi(optarg);
break;
case 't':
rw_times = atoi(optarg);
break;
case 'f':
frameid_flag = 1;
break;
case 'c':
crc_flag = 1;
break;
case 'h':
heart_flag = 1;
break;
case '1':
heart_interval = atoi(optarg);
break;
default:
print_usage(argv[0]);
break;
}
}
if (mode & SPI_LOOP) {
if (mode & SPI_TX_DUAL)
mode |= SPI_RX_DUAL;
if (mode & SPI_TX_QUAD)
mode |= SPI_RX_QUAD;
}
}
static void transfer_escaped_string(int fd, char *str)
{
size_t size = strlen(str);
uint8_t *tx;
uint8_t *rx;
tx = malloc(size);
if (!tx)
pabort("can't allocate tx buffer");
rx = malloc(size);
if (!rx)
pabort("can't allocate rx buffer");
size = unescape((char *)tx, str, size);
transfer(fd, tx, rx, size);
free(rx);
free(tx);
}
static void transfer_file(int fd, char *filename)
{
ssize_t bytes;
struct stat sb;
int tx_fd;
uint8_t *tx;
uint8_t *rx;
if (stat(filename, &sb) == -1)
pabort("can't stat input file");
tx_fd = open(filename, O_RDONLY);
if (tx_fd < 0)
pabort("can't open input file");
tx = malloc(sb.st_size);
if (!tx)
pabort("can't allocate tx buffer");
rx = malloc(sb.st_size);
if (!rx)
pabort("can't allocate rx buffer");
bytes = read(tx_fd, tx, sb.st_size);
if (bytes != sb.st_size)
pabort("failed to read input file");
transfer(fd, tx, rx, sb.st_size);
free(rx);
free(tx);
close(tx_fd);
}
static uint64_t _read_count;
static uint64_t _write_count;
static void show_transfer_rate(void)
{
static uint64_t prev_read_count, prev_write_count;
double rx_rate, tx_rate;
rx_rate = ((_read_count - prev_read_count) * 8) / (interval*1000.0);
tx_rate = ((_write_count - prev_write_count) * 8) / (interval*1000.0);
printf("rate: tx %.1fkbps, rx %.1fkbps\n", rx_rate, tx_rate);
prev_read_count = _read_count;
prev_write_count = _write_count;
}
static void transfer_buf(int fd, int len)
{
uint8_t *tx;
uint8_t *rx;
int i;
tx = malloc(len);
if (!tx)
pabort("can't allocate tx buffer");
for (i = 0; i < len; i++)
tx[i] = random();
rx = malloc(len);
if (!rx)
pabort("can't allocate rx buffer");
transfer(fd, tx, rx, len);
_write_count += len;
_read_count += len;
if (mode & SPI_LOOP) {
if (memcmp(tx, rx, len)) {
fprintf(stderr, "transfer error !\n");
hex_dump(tx, len, 32, "TX");
hex_dump(rx, len, 32, "RX");
exit(1);
}
}
free(rx);
free(tx);
}
static void transfer_read_write(int fd)
{
uint8_t *tx;
uint8_t *rx;
int i, j;
int len, times;
char str[64] = {0};
len = rw_len > 0 ? rw_len : 4;
times = rw_times > 0 ? rw_times : 4;
if (rw_mode == 2)
sprintf(str, "write");
else if (rw_mode == 3)
sprintf(str, "read and write");
else {
rw_mode = 1;
sprintf(str, "read");
}
printf("userspace spi %s test, len=%d times=%d\n", str, len, times);
tx = malloc(len + 4);
if (!tx)
pabort("can't allocate tx buffer");
rx = malloc(len + 4);
if (!rx)
pabort("can't allocate rx buffer");
for (j = 0; j < rw_times; j++) {
memset(tx, 0, len);
memset(rx, 0, len);
if (rw_mode >> 1) {
for (i = 0; i < len; i++)
tx[i] = random();
} else {
for (i = 0; i < len; i++)
tx[i] = i;
}
printf("test, times=%d\n", j);
transfer2(fd, tx, rx, len);
//sleep(2);
}
}
static void transfer_heart_pack(int fd)
{
uint8_t *p;
uint8_t *tx;
uint8_t *rx;
int len;
len = sizeof(heart_pack);
if (frameid_flag)
len += sizeof(uint32_t);
if (crc_flag)
len += sizeof(uint16_t);
tx = malloc(len);
if (!tx)
pabort("can't allocate tx buffer");
rx = malloc(len);
if (!rx)
pabort("can't allocate rx buffer");
while (1) {
memset(tx, 0 ,len);
memset(rx, 0, len);
p = tx;
if (frameid_flag) {
uint32_t *pframeid = (uint32_t *)p;
*pframeid = tx_frameid;
tx_frameid++;
p += sizeof(uint32_t);
printf("device = %s, crc_val = %d", device, *pframeid);
}
memcpy(p, heart_pack, sizeof(heart_pack));
p += sizeof(heart_pack);
if (crc_flag) {
uint16_t crc_val = crc16(0, heart_pack, sizeof(heart_pack));
uint16_t *pcrc_val = (uint16_t *)p;
*pcrc_val = crc_val;
printf("device = %s, crc_val = %d", device, crc_val);
}
transfer3(fd, tx, rx, len);
sleep(heart_interval);
}
}
int main(int argc, char *argv[])
{
int ret = 0;
int fd;
parse_opts(argc, argv);
fd = open(device, O_RDWR);
if (fd < 0)
pabort("can't open device");
/*
* spi mode
*/
ret = ioctl(fd, SPI_IOC_WR_MODE32, &mode);
if (ret == -1)
pabort("can't set spi mode");
ret = ioctl(fd, SPI_IOC_RD_MODE32, &mode);
if (ret == -1)
pabort("can't get spi mode");
/*
* bits per word
*/
ret = ioctl(fd, SPI_IOC_WR_BITS_PER_WORD, &bits);
if (ret == -1)
pabort("can't set bits per word");
ret = ioctl(fd, SPI_IOC_RD_BITS_PER_WORD, &bits);
if (ret == -1)
pabort("can't get bits per word");
/*
* max speed hz
*/
ret = ioctl(fd, SPI_IOC_WR_MAX_SPEED_HZ, &speed);
if (ret == -1)
pabort("can't set max speed hz");
ret = ioctl(fd, SPI_IOC_RD_MAX_SPEED_HZ, &speed);
if (ret == -1)
pabort("can't get max speed hz");
printf("spi mode: 0x%x\n", mode);
printf("bits per word: %d\n", bits);
printf("max speed: %d Hz (%d KHz)\n", speed, speed/1000);
if (input_tx && input_file)
pabort("only one of -p and --input may be selected");
if (input_tx)
transfer_escaped_string(fd, input_tx);
else if (input_file)
transfer_file(fd, input_file);
else if (transfer_size) {
struct timespec last_stat;
clock_gettime(CLOCK_MONOTONIC, &last_stat);
while (iterations-- > 0) {
struct timespec current;
transfer_buf(fd, transfer_size);
clock_gettime(CLOCK_MONOTONIC, ¤t);
if (current.tv_sec - last_stat.tv_sec > interval) {
show_transfer_rate();
last_stat = current;
}
}
printf("total: tx %.1fKB, rx %.1fKB\n",
_write_count/1024.0, _read_count/1024.0);
} else if (rw_mode) {
transfer_read_write(fd);
} else if (heart_flag) {
transfer_heart_pack(fd);
} else
transfer(fd, default_tx, default_rx, sizeof(default_tx));
close(fd);
return ret;
}
附录2 测试用例源码：Makefile
OUT_DIR = $(shell pwd)/_build/
.PHONY: build install clean
BIN_NAME = spidev_tc
SRCS = $(wildcard ./*.c)
OBJS = $(addprefix ${OUT_DIR}/, $(patsubst %.c, %.o, ${SRCS}))
BIN_TEST1 = ${OUT_DIR}/${BIN_NAME}
OBJECT = ${BIN_TEST1}
build: ${OBJECT}
Q:=
$(OBJECT): $(OBJS)
$(Q)mkdir -p $(abspath $(dir $@))
$(Q)echo CC $@
$(Q)${CC} ${CFLAGS} ${INCS} $^ ${LDFLAGS} $(LIBS) -o $@
${OUT_DIR}/%.o: %.c
$(Q)mkdir -p $(abspath $(dir $@))
$(Q)echo CC $@
$(Q)${CC} $(INCS) -c $< -o $@
clean :
rm -rf $(OBJS) $(OBJECT)
