1.4 Remote Login

This chapter is intended to introduce users who need to remotely access the development board through their personal computer (PC) on how to remotely login via serial port and network (VNC, SSH) methods.

tip

Before remote login via network, the development board needs to be connected to the network through wired Ethernet or wireless WiFi and configure the IP address of the development board. For the IP address information under both connection methods, refer to the following descriptions:

  • Wired Ethernet: The development board defaults to static IP mode, with an IP address of 192.168.1.10, subnet mask of 255.255.255.0, and gateway of 192.168.1.1.
  • Wireless WiFi: The development board's IP address is generally assigned by the router and can be viewed in the device command line using the ifconfig command for the wlan0 network.

Serial Port Login

Video: https://www.youtube.com/watch?v=dYV5nw_PDMw&list=PLSxjn4YS2IuFUWcLGj2_uuCfLYnNYw6Ld&index=16

Before using serial port login, it is necessary to confirm that the serial port cable of the development board is correctly connected to the computer. The connection method can refer to the Serial Port Debugging chapter. Serial port login requires a PC terminal tool. The commonly used tools are Putty, MobaXterm, etc. Users can choose according to their own habits. The port configuration process is similar for different tools. Below is an example with MobaXterm to explain the process of creating a new serial port connection:

  • When the USB-to-Serial adapter is first plugged into the computer, the serial port driver needs to be installed. The driver can be obtained from the Tools sub-column of the Resource Center. After the driver is installed, the Device Manager can recognize the serial port board port normally, as shown in the figure below:
    image-20220416105939067

  • Open the MobaXterm tool, click Session, and then select Serial.

  • Configure the port number, for example, COM3. The actual serial port number used depends on the serial port number recognized by the PC.

  • Set the serial port configuration parameters as follows:

    Configuration ItemParameter Value
    Baud rate921600
    Data bits8
    ParityNone
    Stop bits1
    Flow ControlNone

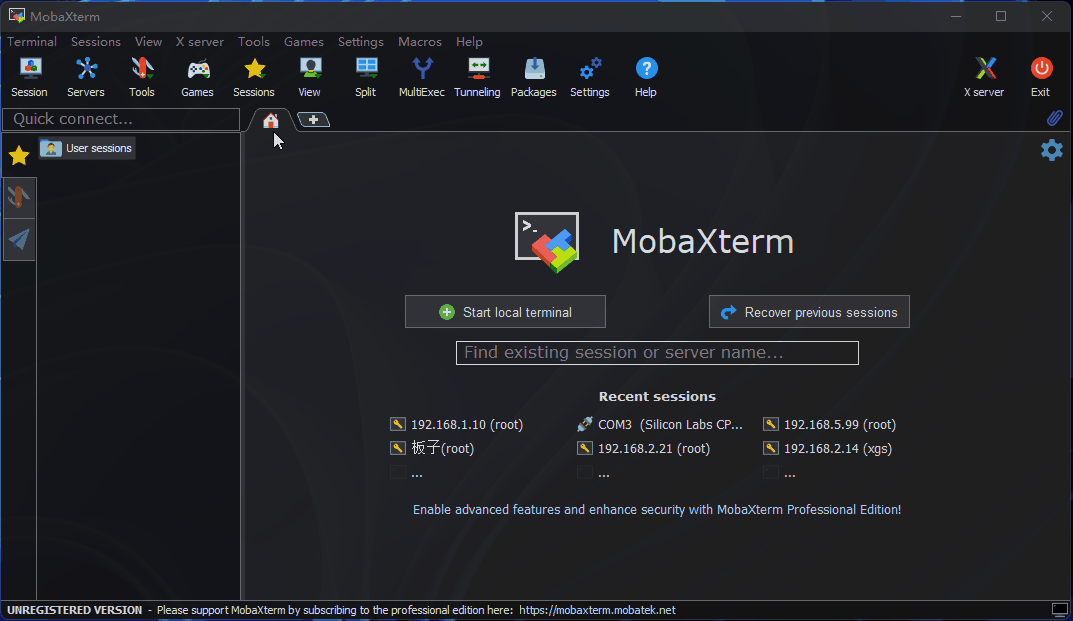

  • Click OK, enter the username: root, password: root to log in to the device
    image-Uart-Login

At this point, you can use the ifconfig command to query the IP address of the development board, where eth0 and wlan0 represent the wired and wireless networks respectively:

root@ubuntu:~# ifconfig
eth0: flags=4163<UP,BROADCAST,RUNNING,MULTICAST> mtu 1500
inet 192.168.1.10 netmask 255.255.255.0 broadcast 192.168.1.255
inet6 fe80::211:22ff:feaa:7637 prefixlen 64 scopeid 0x20<link>
ether 00:11:22:aa:76:37 txqueuelen 1000 (Ethernet)
RX packets 767 bytes 54006 (54.0 KB)
RX errors 0 dropped 0 overruns 0 frame 0
TX packets 5766 bytes 246466 (246.4 KB)
TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0
device interrupt 43 base 0xa000

lo: flags=73<UP,LOOPBACK,RUNNING> mtu 65536
inet 127.0.0.1 netmask 255.0.0.0
inet6 ::1 prefixlen 128 scopeid 0x10<host>
loop txqueuelen 1000 (Local Loopback)
RX packets 3847 bytes 339115 (339.1 KB)
RX errors 0 dropped 0 overruns 0 frame 0
TX packets 3847 bytes 339115 (339.1 KB)
TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0

wlan0: flags=4099<UP,BROADCAST,MULTICAST> mtu 1500
ether 08:e9:f6:ae:f8:8a txqueuelen 1000 (Ethernet)
RX packets 0 bytes 0 (0.0 B)
RX errors 0 dropped 0 overruns 0 frame 0
TX packets 0 bytes 0 (0.0 B)
TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0

Network Status Confirmation

Video: https://www.youtube.com/watch?v=Of4mN0MaoiU&list=PLSxjn4YS2IuFUWcLGj2_uuCfLYnNYw6Ld&index=14

tip

The IP addresses corresponding to different versions of the images are as follows:

Board SeriesImage VersionEthernet Port IP Address
X3Less than or equal to 2.0.0192.168.1.10/24
X3Greater than or equal to 2.1.0192.168.127.10/24
X53.0.0192.168.127.10/24
Board SeriesImage VersionFlash Connection Port (USB Device) IP Address
X53.0.0192.168.128.10/24

Before using remote login, it is necessary to ensure that the communication between the computer and the development board is normal. If it cannot be pinged, please follow the steps below to confirm:

  • Confirm the IP address configuration of the development board and the computer. Generally, the first three segments need to be the same. For example, the development board: 192.168.1.10 and the computer: 192.168.1.100.
  • Confirm that the subnet mask and gateway configuration of the development board and the computer are consistent.
  • Confirm whether the network firewall of the computer is turned off.

The wired Ethernet of the development board is set to use the static IP mode by default, and the IP address is 192.168.1.10. For the case where the development board and the computer are directly connected to the network, only need to configure the computer as a static IP to ensure that it is in the same network segment as the development board. Taking the WIN10 system as an example, the method to modify the static IP of the computer is as follows:

  • Find the corresponding Ethernet device in the network connection and double-click to open it.
  • Double-click to open the Internet Protocol Version 4 option.

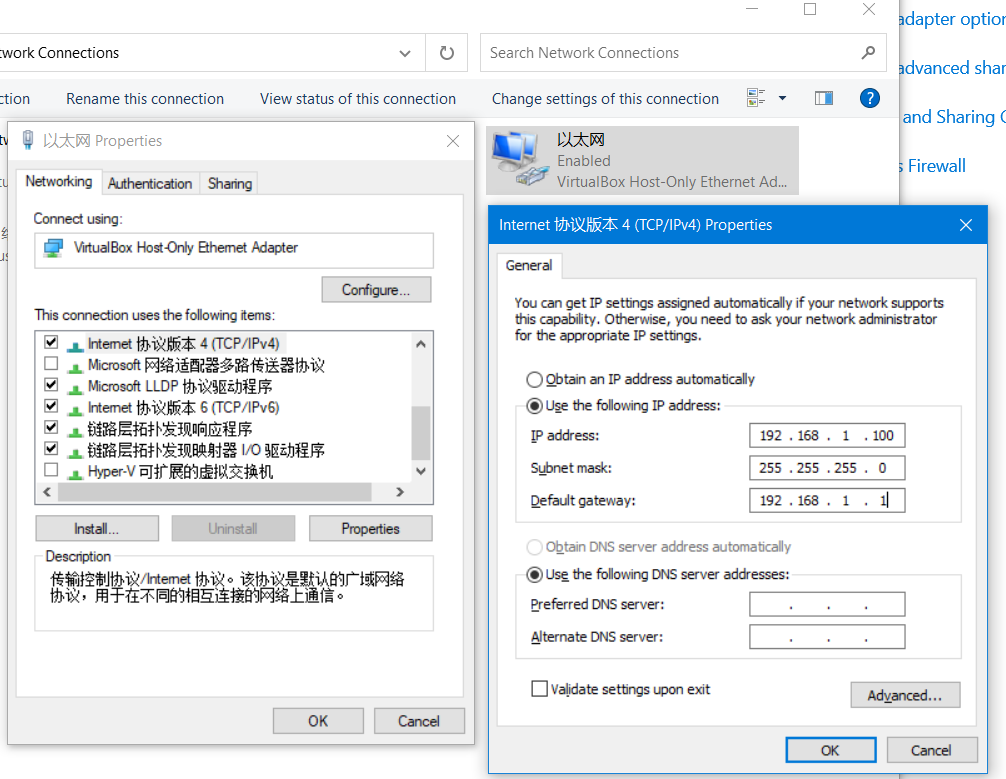

  • Enter the corresponding network parameters in the red box in the figure below and click OK.

image-20220416110242445

If you want to configure the wired network of the development board to obtain IP dynamically via DHCP mode, please refer to the Wired Network chapter for configuration.

VNC Login

Video: https://www.youtube.com/watch?v=whwi7O2XBKs&list=PLSxjn4YS2IuFUWcLGj2_uuCfLYnNYw6Ld&index=12

This section is for users using the Ubuntu Desktop system version, and it explains how to use "VNC Viewer" to achieve remote desktop login. "VNC Viewer" is a graphical desktop sharing software that allows you to remotely log in and control the desktop of the device on your computer. With this software, you can preview the system desktop of the development board on your computer screen and use your computer's mouse and keyboard for remote operation. By using VNC Viewer, you can achieve the same effect as local operation on the development board. You can download VNC Viewer from the following link: VNC Viewer.

Connect to the Development Board

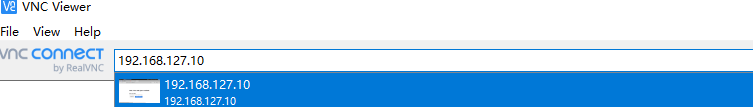

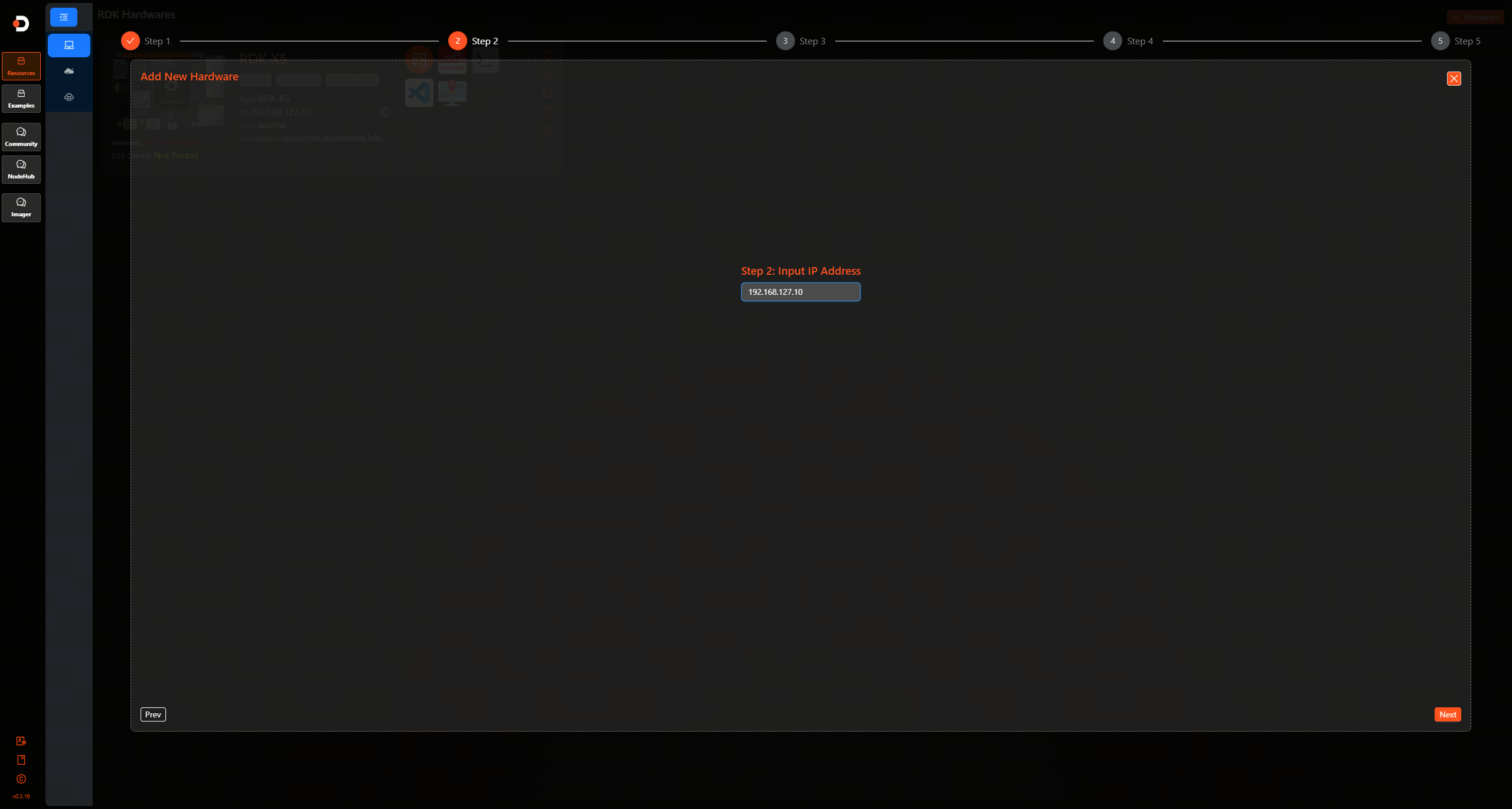

Currently, VNC supports two connection methods: direct connection and cloud connection. Users can choose according to their own needs. This article recommends using the direct connection method. The connection steps are as follows:- Enter the IP address of the input device, for example: 192.168.1.10
image-20220610160658103

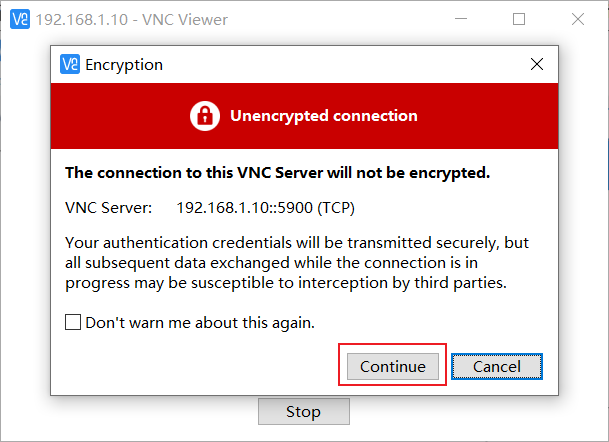

  • After entering the IP address, press Enter, a prompt for an unencrypted connection will appear, click Continue
    image-20220610160715916

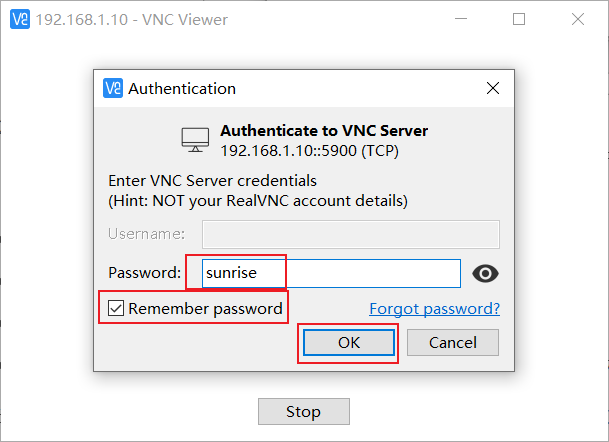

  • Enter the password sunrise, check Remember password, and click OK to connect
    image-20220610160928136

SSH Login

In addition to VNC login for remote desktop, you can also connect to the development board via SSH. The following steps describe how to create SSH connections using terminal software and terminal command line methods.

Terminal Software

Commonly used terminal tools include Putty, MobaXterm, etc. Users can choose according to their own preferences. The configuration process for different tools is similar. The following example shows how to create a new SSH connection using MobaXterm:

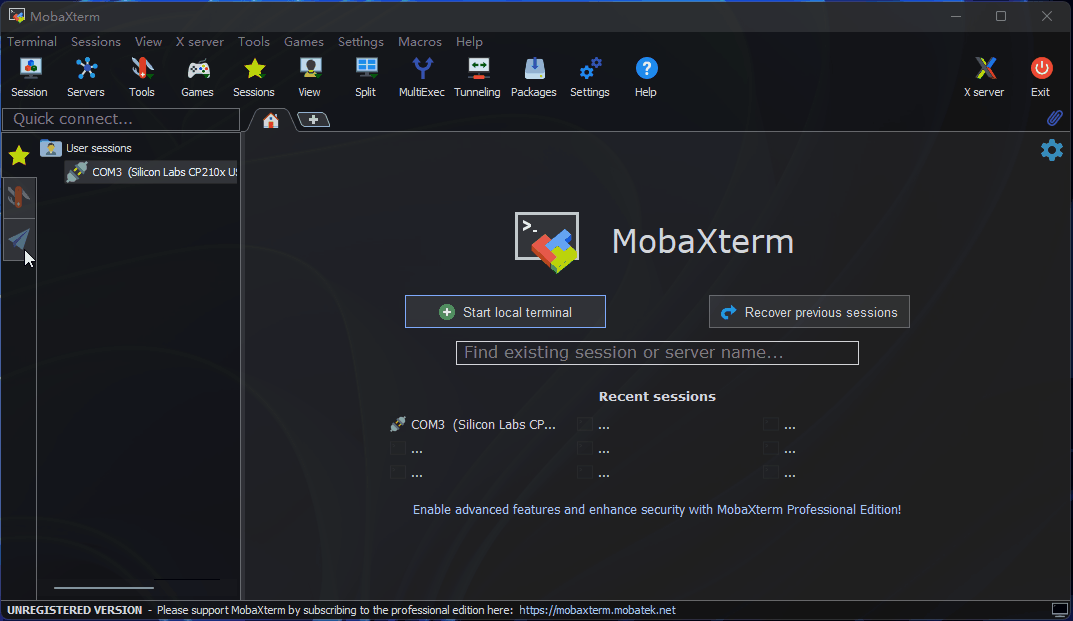

  1. Open the MobaXterm tool, click on Session, then select SSH.
  2. Enter the development board IP address, for example: 192.168.1.10.
  3. Select specify username, enter sunrise.
  4. After clicking OK, enter the username (sunrise) and password (sunrise) to complete the login.

image-Network-Login

Command Line on PC

Users can also use the command line to log in via SSH. The steps are as follows:

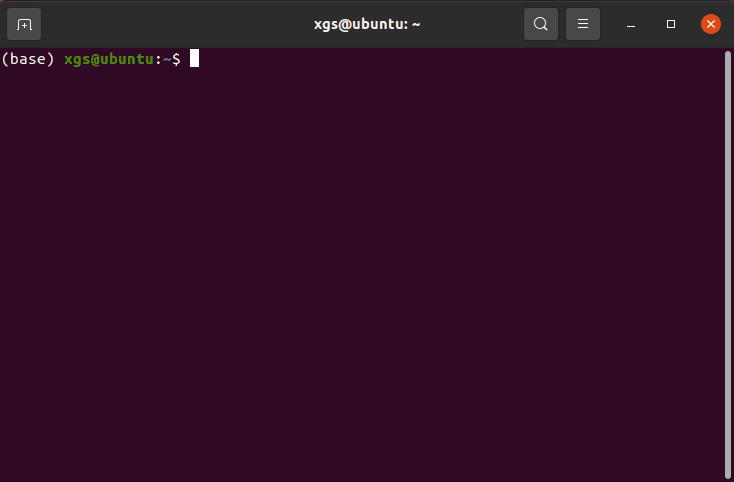

  1. Open the terminal window and enter the SSH login command, for example: ssh sunrise@192.168.1.10.
  2. A connection confirmation prompt will appear, enter YES.
  3. Enter the password (sunrise) to complete the login.

image-Cmdline-Linux

Setting Up a Local Area Network

To maintain a serial connection for the login steps mentioned earlier and to access the local area network, you can use the following commands:

sudo nmcli device wifi rescan # 扫描wifi⽹络
sudo nmcli device wifi list # 列出找到的wifi
sudo wifi_connect "SSID" "PASSWD" # 连接指定wifi

After successfully executing these commands, you should see a message starting with successfully xxx.

Finally, on the board side, you can use ifconfig to obtain the board's IP address. Once you have the IP address, you can disconnect the serial cable and use the SSH login method mentioned earlier to remotely connect.
