UART驱动调试指南

X3 芯片共有4路串口：UART0、UART1，UART2，UART3

• UART0 用作调试串口，只有 UART1 支持硬件流控
• 支持比特率 115.2Kbps，230.4Kbps，460.8Kbps，921.6Kbps，1.5Mbps，2Mbps，4Mbps。2M以上速录需要使能TOI
• 支持基于中断或基于 DMA 的模式

驱动代码

代码路径

drivers/tty/serial/hobot_serial.c
drivers/tty/serial/hobot_serial.h

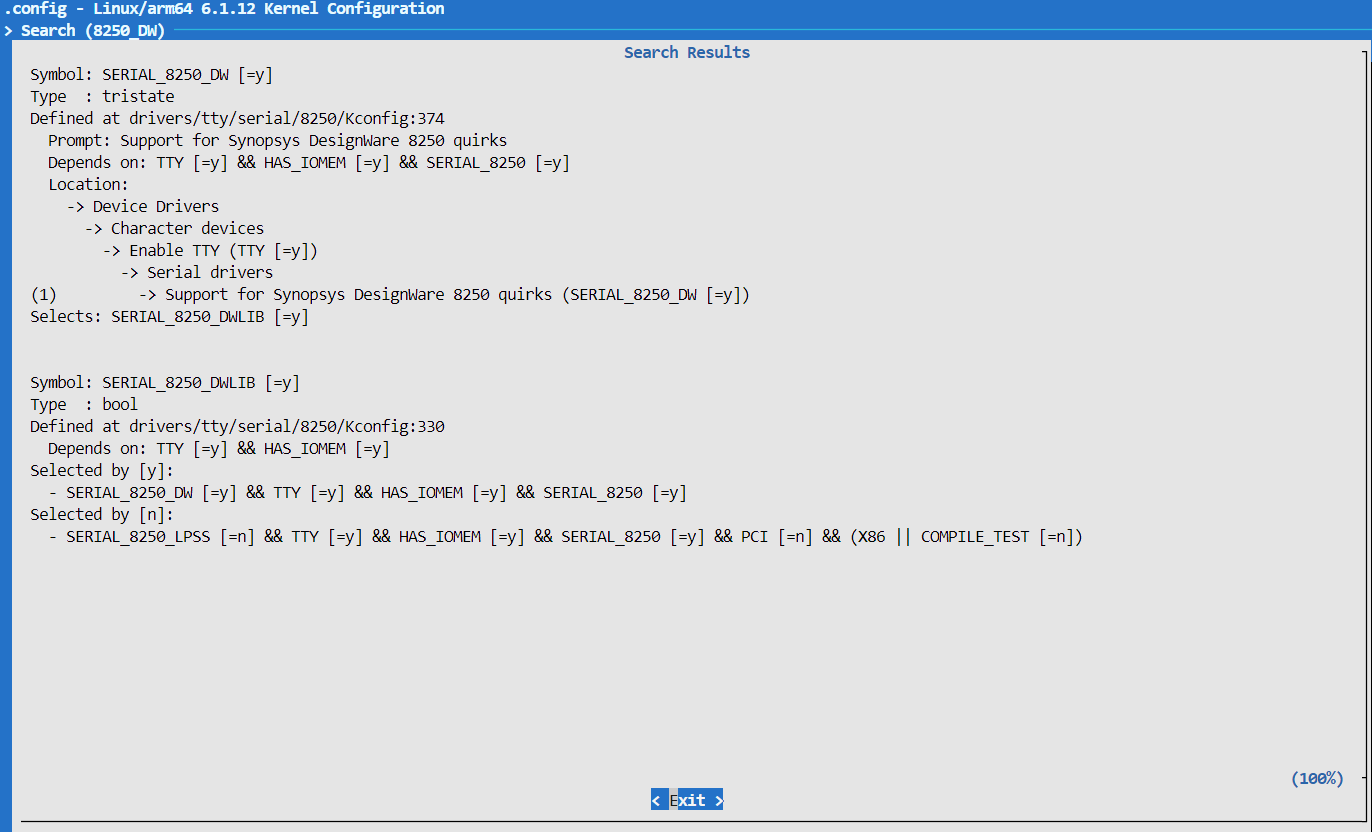

内核配置

CONFIG_SERIAL_HOBOT_UART

SERIAL_HOBOT_UART_CONSOLE

DTS设备节点配置

在 hobot-xj3.dtsi 文件中有uart0-3的通用配置，此文件内配置一般不做修改，当需要使能对应的串口时，可以到具体的板子配置设备树中修改、添加自定义配置，例如在 hobot-x3-sdb.dts 文件内使能 uart0、1、3

/* arch/arm64/boot/dts/hobot/hobot-xj3.dtsi */
uart0: serial@0xA5000000 {
    compatible = "hobot,hobot-uart";
    reg = <0 0xA5000000 0 0x1000>;
    interrupt-parent = <&gic>;
    interrupts = <0 29 4>;
    clocks = <&uart0_mclk>;
    pinctrl-names = "default";
    pinctrl-0 = <&uart0_func>;
    status = "disabled";
};

/* arch/arm64/boot/dts/hobot/hobot-x3-sdb.dts */
&uart0 {
	status = "okay";
};

&uart1 {
	status = "okay"; /* 4 wire uart for bt */
	pinctrl-0 = <&uart1_func_rtscts>; /* <&uart1_func>;  uart 1 connect to bt with rtscts*/
};

&uart3 {
	status = "okay"; /* 4 wire uart for bt */
};

UART测试

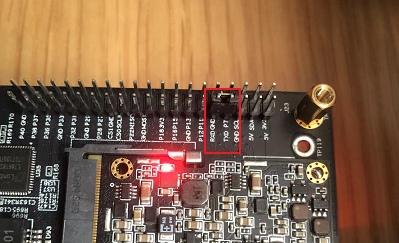

硬件上把uart3的TX和RX进行连接。

编译uart_duplex.c 代码，具体代码如附录A

/opt/gcc-ubuntu-9.3.0-2020.03-x86_64-aarch64-linux-gnu/bin/aarch64-linux-gnu-gcc -o uart_duplex uart_duplex.c  -lpthread

回环测试命令：打开/dev/ttyS3，默认波特率4Mbps，默认每轮测试1MB数据，测试100轮，读写同时进行，每发、收512字节做一轮数据校验，完整一轮测试结束后，如果没有出错则打印校验正确。

# ./uart_duplex -c 100 -d /dev/ttyS3
test size:1024 Kbytes, baud:4000000
Start receive thread
Start send thread
Start recv_check thread
This is receive test 1 times
This is uart send 1 times
receive sum:102416 bytes
receive sum:205312 bytes
...
receive sum:924164 bytes
receive sum:1027076 bytes
send 1024Kbytes,time:2700.000000ms, BPS:379259.250000
This is receive test 2 times
## Check the received data is correct ##

uart_duplex命令是测试uart的，可以阅读它的帮助信息获取更多使用方法。

附录（测试代码）

#include <stdio.h>
#include <stdint.h>
#include <stdlib.h>
#include <unistd.h>
#include <fcntl.h>
#include <termios.h>
#include <errno.h>
#include <string.h>
#include <getopt.h>
#include <sys/time.h>
#include <pthread.h>
#include <semaphore.h>
#include <stdlib.h>

#define BUFF_SIZE (20 * 1024 * 1024)
pthread_t recv_thread_id;
pthread_t recv_check_thread_id;
pthread_t send_thread_id;
char send_buffer[BUFF_SIZE] = {0};
char recv_buffer[BUFF_SIZE] = {0};
static uint32_t test_size = 1024;
static uint32_t baud = 4000000;
static uint32_t test_count = 0;
int g_fd;
uint64_t recv_total = 0;
sem_t sem_check;

#define FRAME_LEN 512
#if 1
static void dump_recv_data(uint32_t sum, uint32_t len)
{
	int ii = 0;
	printf("dump receive data:\n");
	for (ii = 0; ii < len; ii += 4) {
		printf("0x%x: 0x%x, 0x%x, 0x%x, 0x%x\n", sum + ii,
				recv_buffer[sum + ii],
				recv_buffer[sum + ii + 1],
				recv_buffer[sum + ii + 2],
				recv_buffer[sum + ii + 3]);

	}

}

static void dump_send_data(uint32_t sum, uint32_t len)
{
	int ii = 0;
	printf("dump send data:\n");
	for (ii = 0; ii < len; ii += 4) {
		printf("0x%x: 0x%x, 0x%x, 0x%x, 0x%x\n", sum + ii,
				send_buffer[sum + ii],
				send_buffer[sum + ii + 1],
				send_buffer[sum + ii + 2],
				send_buffer[sum + ii + 3]);

	}

}
#endif

static void set_baudrate(int fd, int nSpeed)
{
	struct termios newtio;

	tcgetattr(fd, &newtio);

	switch (nSpeed) {
	case 2400:
		cfsetispeed(&newtio, B2400);
		cfsetospeed(&newtio, B2400);
		break;

	case 4800:
		cfsetispeed(&newtio, B4800);
		cfsetospeed(&newtio, B4800);
		break;

	case 9600:
		cfsetispeed(&newtio, B9600);
		cfsetospeed(&newtio, B9600);
		break;

	case 19200:
		cfsetispeed(&newtio, B19200);
		cfsetospeed(&newtio, B19200);
		break;

	case 38400:
		cfsetispeed(&newtio, B38400);
		cfsetospeed(&newtio, B38400);
		break;

	case 57600:
		cfsetispeed(&newtio, B57600);
		cfsetospeed(&newtio, B57600);
		break;

	case 115200:
		cfsetispeed(&newtio, B115200);
		cfsetospeed(&newtio, B115200);
		break;
	case 230400:
		cfsetispeed(&newtio, B230400);
		cfsetospeed(&newtio, B230400);
		break;
	case 921600:
		cfsetispeed(&newtio, B921600);
		cfsetospeed(&newtio, B921600);
		break;
	case 1000000:
		cfsetispeed(&newtio, B1000000);
		cfsetospeed(&newtio, B1000000);
		break;

	case 1152000:
		cfsetispeed(&newtio, B1152000);
		cfsetospeed(&newtio, B1152000);
		break;
	case 1500000:
		cfsetispeed(&newtio, B1500000);
		cfsetospeed(&newtio, B1500000);
		break;
	case 2000000:
		cfsetispeed(&newtio, B2000000);
		cfsetospeed(&newtio, B2000000);
		break;
	case 2500000:
		cfsetispeed(&newtio, B2500000);
		cfsetospeed(&newtio, B2500000);
		break;
	case 3000000:
		cfsetispeed(&newtio, B3000000);
		cfsetospeed(&newtio, B3000000);
		break;
	case 3500000:
		cfsetispeed(&newtio, B3500000);
		cfsetospeed(&newtio, B3500000);
		break;

	case 4000000:
		cfsetispeed(&newtio, B4000000);
		cfsetospeed(&newtio, B4000000);
		break;

	default:
		printf("\tSorry, Unsupported baud rate, use previous baudrate!\n\n");
		break;
	}
	tcsetattr(fd,TCSANOW,&newtio);
}

static void set_termios(int fd)
{
	struct termios term;

	tcgetattr(fd, &term);
	term.c_cflag &= ~(CSIZE | CSTOPB | PARENB | INPCK);
	term.c_cflag |= (CS8 | CLOCAL | CREAD);
	term.c_lflag &= ~(ICANON | ECHO | ECHOE | ISIG);
	term.c_oflag &= ~(OPOST | ONLCR | OCRNL);
	term.c_iflag &= ~(ICRNL |INLCR | IXON | IXOFF | IXANY);
	term.c_cc[VTIME] = 0;
	term.c_cc[VMIN] = 1;
	tcsetattr(fd, TCSAFLUSH, &term);
}

static void *send_test(void *times)
{
	/*send thread*/
	struct timeval start, end;
	int32_t i = 0;
	uint32_t j = 0;
	uint32_t tmp = 0;
	uint32_t exe_count = 0;
	int32_t ret = 0;
	float ts = 0;

	printf("Start send thread\n");

	sleep(1);
	if (test_count == 0) {
		tmp = 10;
	} else
		tmp = test_count;
	for (j = 0; j < tmp; j++) {
		if (test_count == 0)
			j = 0;
		sleep(1);
		printf("This is uart send %d times\n", ++exe_count);
		gettimeofday(&start, NULL);
		for (i = 0; i <  test_size * 1024; i = i + FRAME_LEN) {
			ret = write(g_fd, &send_buffer[i], FRAME_LEN);
			if (ret < FRAME_LEN) {
				printf("write ttyS2 error\n");
				return NULL;
			}
		}
#if 1
		gettimeofday(&end, NULL);
		//		printf("start %ld sec, %ld usec, end %ld sec, %ld usec\n", start.tv_sec, start.tv_usec, end.tv_sec, end.tv_usec);
		ts = ((end.tv_sec * 1000000 + end.tv_usec) - (start.tv_sec * 1000000 + start.tv_usec)) / 1000;
		printf("send %dKbytes,time:%fms, BPS:%f\n", test_size, ts, test_size * 1000 / (ts / 1000));
#endif
	}
	close(g_fd);
	return NULL;
}

static void *recv_test(void *times)
{
	int32_t j = 0;
	uint32_t exe_count = 0;
	int tmp = 0;
	int size = 0;
	int sum = 0;
	int last_count = 0;
	int len = 0;
	int len_frame = 0; /*use to get correct frame len*/

	printf("Start receive thread\n");

	memset(recv_buffer, 0, sizeof(recv_buffer));

	if (test_count == 0) {
		tmp = 10;
	} else
		tmp = test_count;
	for (j = 0; j < tmp; j++) {
		sum = 0;
		last_count = 0;
		if (test_count == 0)
			j = 0;
		printf("This is receive test %d times\n", ++exe_count);
		//gettimeofday(&start, NULL);
		size = test_size * 1024;
		while (size > 0) {
			len = read(g_fd, &recv_buffer[sum], FRAME_LEN);
			if (len < 0) {
				printf("read error\n");
				return NULL;
			}
			recv_total += len;
			len_frame += len;
			if (len_frame >= FRAME_LEN) {
				len_frame -= FRAME_LEN;
				sem_post(&sem_check);
			}

#if 0
			ret = memcmp(&recv_buffer[sum], &send_buffer[sum], len);
			if (ret != 0) {
				printf("data compare error\n");
				return NULL;
			}
#endif
			sum +=len;
			size -= len;
			if ((sum - last_count) > 100 * 1024) {
				printf("receive sum:%d bytes\n", sum);
				last_count = sum;
			}
		}
#if 0
		gettimeofday(&end, NULL);
		printf("start %ld sec, %ld usec, end %ld sec, %ld usec\n", start.tv_sec, start.tv_usec, end.tv_sec, end.tv_usec);
		ts = ((end.tv_sec * 1000000 + end.tv_usec) - (start.tv_sec * 1000000 + start.tv_usec)) / 1000;

		printf("receive %dKbytes,time:%fms, BPS:%f\n", test_size, ts, test_size * 1000 / (ts / 1000));
#endif
	}
	close(g_fd);
	return NULL;
}

int32_t error_bit(uint64_t *data1, uint64_t *data2, int32_t len)
{
	uint64_t c=0;
	int32_t sum = 0;
	int i = 0;
	for(i = 0; i < len / 8; i++) {
		c = data1[i] ^ data2[i];
		while(c!=0) {
			c &= (c - 1);
			sum++;
		}
	}
	return sum;
}

static void *recv_check_test(void *times)
{
	int32_t check_pos = 0;
	uint32_t *cur_frame = NULL;
	int32_t error_bit_cnt = 0;
	printf("Start recv_check thread\n");
	while (1) {
		sem_wait(&sem_check);
		/*check data*/
		cur_frame = (uint32_t *)&recv_buffer[check_pos];
		if (*cur_frame != check_pos / FRAME_LEN) {
			printf("error: may lost frame, curruent frame is %d, expected frame is %d position: 0x%x\n",
					*cur_frame, check_pos / FRAME_LEN, check_pos);
			//dump_recv_data(check_pos, FRAME_LEN);
			//dump_send_data(check_pos, FRAME_LEN);
			error_bit_cnt = 0;
			error_bit_cnt = error_bit((uint64_t *)&recv_buffer[check_pos],
					(uint64_t *)&send_buffer[check_pos],
					FRAME_LEN / 8);
			check_pos += FRAME_LEN;
			printf("test total data: 0x%lx, error bit count:%d\n", recv_total, error_bit_cnt);
			if (check_pos == test_size * 1024) {
				//exit(1);
				printf("uart: frame head error\n");

			}
			continue;
		}
		error_bit_cnt = 0;
		error_bit_cnt = error_bit((uint64_t *)&recv_buffer[check_pos],
				(uint64_t *)&send_buffer[check_pos],
				FRAME_LEN / 8);
		if (error_bit_cnt) {
			printf("test total data: 0x%lx!!!!!!!, error bit count:%d\n", recv_total, error_bit_cnt);
			//dump_recv_data(check_pos, FRAME_LEN);
			//dump_send_data(check_pos, FRAME_LEN);
			check_pos += FRAME_LEN;
			if (check_pos == test_size * 1024) {
				//exit(1);
				printf("uart: frame data error\n");
			}
			continue;
		}
		memset(&recv_buffer[check_pos], 0, FRAME_LEN);
		check_pos += FRAME_LEN;
		if (check_pos == test_size * 1024) {
			check_pos = 0;
			printf("## Check the received data is correct ##\n");
		}
	}
	return NULL;
}

static const char short_options[] = "s:u:c:b:d:h";
static const struct option long_options[] = {
	{"size", required_argument, NULL, 's'},
	{"baudrate", required_argument, NULL, 'b'},
	{"count", required_argument, NULL, 'c'},
	{"device", required_argument, NULL, 'd'},
	{"help", no_argument, NULL, 'h'},
	{0, 0, 0, 0}};
int main(int argc, char *argv[])
{
	int ret = 0;
	char *pDevice = NULL;
	int i = 0;
	int32_t cmd_parser_ret = 0;
	uint32_t *frame_num = NULL;
	uint32_t *frame_value = NULL;

	while ((cmd_parser_ret = getopt_long(argc, argv, short_options, long_options, NULL)) != -1) {
		switch (cmd_parser_ret) {
		case 's':
			test_size = atoi(optarg);
			break;

		case 'b':
			baud = atoi(optarg);
			break;

		case 'c':
			test_count = atoi(optarg);
			break;
		case 'd':
			pDevice = optarg;
			break;

		case 'h':
			printf("**********UART STRESS TEST HELP INFORMATION*********\n");
			printf(">>> -s/--size     [test size,unit--Kbytes,default is 1M, MAX is 20M]\n");
			printf(">>> -b/--baudrate  [baud,default is 4M]\n");
			printf(">>> -c/--count  [test count,default is forever]\n");
			printf(">>> -d/--uart  [uart device, user must set this]\n");
			return 0;
		}
	}
	if (baud > 4000000) {
		printf("baud is larger than max baud\n");
		return -1;
	}
	g_fd = open(pDevice, O_RDWR | O_NOCTTY);
	if (0 > g_fd) {
		printf("open fail\n");
		return -1;
	}
	set_baudrate(g_fd, baud);
	set_termios(g_fd);
	printf("test size:%d Kbytes, baud:%d\n", test_size, baud);
	for (i = 0; i < test_size * 1024; i+=4) {
		if (i % FRAME_LEN) {
			frame_value = (uint32_t *)&send_buffer[i];
			*frame_value = rand();
		}

	}
	for (i = 0; i < test_size * 1024 / FRAME_LEN; i++) {
		frame_num = (uint32_t *)&send_buffer[i * FRAME_LEN];
		*frame_num = i;
		//        printf("pos:0x%x, value:0x%x\n", i * FRAME_LEN, *frame_num);
	}

	sem_init(&sem_check, 0, 0);
	ret = pthread_create(&recv_thread_id,
			NULL,
			recv_test,
			NULL);
	if (ret < 0) {
		printf("create uart1 test thread failed\n");
		return -1;
	}
	ret = pthread_create(&send_thread_id,
			NULL,
			send_test,
			NULL);
	if (ret < 0) {
		printf("create uart2 test thread failed\n");
		return -1;
	}
	ret = pthread_create(&recv_check_thread_id,
			NULL,
			recv_check_test,
			NULL);
	if (ret < 0) {
		printf("create receive check thread failed\n");
		return -1;
	}
	pthread_join(recv_thread_id, NULL);
	pthread_join(recv_check_thread_id, NULL);
	pthread_join(send_thread_id, NULL);
	return 0;
}
