5.4.5 Car Gesture Control

Feature Overview​

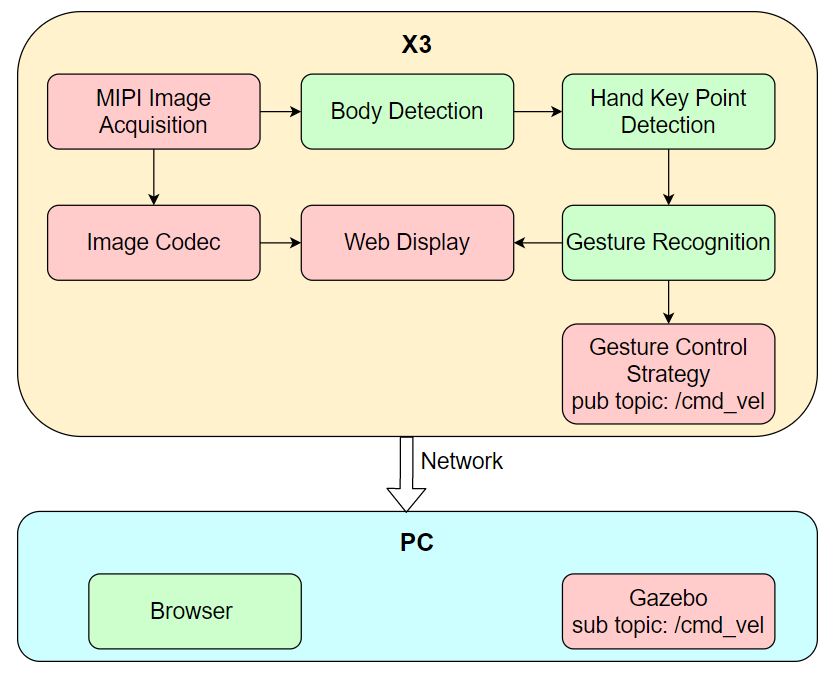

The Car Gesture Control app enables controlling a robot car's movement through hand gestures, including left/right rotation and forward/backward translation. The app consists of the following modules: MIPI image acquisition, human detection and tracking, hand keypoint detection, gesture recognition, gesture control strategy, image encoding/decoding, and a web-based visualization interface. The workflow is illustrated in the diagram below:

Supported control gestures, their corresponding functions, and example gestures are listed below:

Control GestureGesture FunctionExample Gesture
"666" Gesture / AwesomeMove Forwardimage-awesome
Yeah / VictoryMove Backwardimage-victory
Thumb RightTurn Rightimage-thumbright
Thumb LeftTurn Leftimage-thumbleft

This app uses a virtual robot car in the Gazebo simulation environment on a PC as an example. The published control commands can also be directly applied to control a physical robot car.

Code repository: (https://github.com/D-Robotics/gesture_control)

Supported Platforms​

PlatformRuntime EnvironmentExample Functionality
RDK X3, RDK X3 ModuleUbuntu 20.04 (Foxy), Ubuntu 22.04 (Humble)Launch MIPI/USB camera to capture images, perform gesture recognition and control, and visualize results in Gazebo
RDK X5, RDK X5 ModuleUbuntu 22.04 (Humble)Launch MIPI/USB camera to capture images, perform gesture recognition and control, and visualize results in Gazebo
RDK UltraUbuntu 20.04 (Foxy)Launch MIPI/USB camera to capture images, perform gesture recognition and control, and visualize results in Gazebo

Prerequisites​

RDK Platform​

  1. RDK has been flashed with Ubuntu 20.04 or Ubuntu 22.04 system image.
  2. TogetherROS.Bot has been successfully installed on the RDK.
  3. An MIPI or USB camera has been installed on the RDK.
  4. A PC on the same network segment as the RDK (either wired or connected to the same Wi-Fi; the first three segments of the IP address must match). The PC must have the following environment installed:
  • Ubuntu 20.04 system and ROS 2 Foxy Desktop
  • Gazebo and Turtlebot3-related packages. Installation commands:
sudo apt-get install ros-foxy-gazebo-*
sudo apt install ros-foxy-turtlebot3
sudo apt install ros-foxy-turtlebot3-simulations

Usage Instructions​

RDK Platform​

After launching the Car Gesture Control app, use the following gestures to control the robot car:

  • "666 Gesture / Awesome" → Move forward
  • "Yeah / Victory" → Move backward
  • "Thumb Right" → Turn right
  • "Thumb Left" → Turn left

Note: Turning left/right refers to rotating toward the user’s left/right direction (i.e., the direction indicated by the thumb).

After the app starts, you can view the images published by the sensor and corresponding algorithm results rendered in a web browser on your PC by navigating to http://IP:8000 (replace "IP" with the RDK’s actual IP address).

Launch the simulation environment on the PC:

source /opt/ros/foxy/setup.bash
export TURTLEBOT3_MODEL=burger
ros2 launch turtlebot3_gazebo empty_world.launch.py

After successful launch, the simulated robot car appears as follows in Gazebo:

Publish images using an MIPI camera

# Configure the TogetherROS.Bot environment
source /opt/tros/setup.bash

# Copy required configuration files for running the example from the TogetherROS.Bot installation path.
cp -r /opt/tros/${TROS_DISTRO}/lib/mono2d_body_detection/config/ .
cp -r /opt/tros/${TROS_DISTRO}/lib/hand_lmk_detection/config/ .
cp -r /opt/tros/${TROS_DISTRO}/lib/hand_gesture_detection/config/ .

# Configure MIPI camera
export CAM_TYPE=mipi

# Launch the launch file
ros2 launch gesture_control gesture_control.launch.py

Publish images using a USB camera

# Configure the TogetherROS.Bot environment
source /opt/tros/setup.bash

# Copy required configuration files for running the example from the TogetherROS.Bot installation path.
cp -r /opt/tros/${TROS_DISTRO}/lib/mono2d_body_detection/config/ .
cp -r /opt/tros/${TROS_DISTRO}/lib/hand_lmk_detection/config/ .
cp -r /opt/tros/${TROS_DISTRO}/lib/hand_gesture_detection/config/ .

# Configure USB camera
export CAM_TYPE=usb

# Launch the launch file
ros2 launch gesture_control gesture_control.launch.py

Result Analysis​

The RDK runtime terminal outputs the following information:

[gesture_control-7] [WARN] [1652965757.159500951] [GestureControlEngine]: frame_ts_ms: 3698315358, track_id: 2, tracking_sta: 1, gesture: 14
[gesture_control-7] [WARN] [1652965757.159660358] [GestureControlEngine]: do move, direction: 0, step: 0.500000
[gesture_control-7] [WARN] [1652965757.211420964] [GestureControlEngine]: frame_ts_ms: 3698315425, track_id: 2, tracking_sta: 1, gesture: 14
[gesture_control-7] [WARN] [1652965757.211624899] [GestureControlEngine]: do move, direction: 0, step: 0.500000
[gesture_control-7] [WARN] [1652965757.232051230] [GestureControlEngine]: frame_ts_ms: 3698315457, track_id: 2, tracking_sta: 1, gesture: 14
[gesture_control-7] [WARN] [1652965757.232207513] [GestureControlEngine]: do move, direction: 0, step: 0.500000

The log above captures a segment of processing results where the robot car is controlled via hand gestures. Here, tracking_sta value of 1 indicates that the system is in gesture control mode, while a tracking_sta value of 0 means a gesture has been recognized.

Starting from the timestamp frame_ts_ms: 3698315358, the robot car is controlled using the "666" gesture (gesture: 14) to move forward at a speed of 0.5 m/s (do move, direction: 0, step: 0.500000).

On the PC side, you can use the command ros2 topic list in the terminal to query the topics published by the RDK:

$ ros2 topic list
/camera_info
/cmd_vel
/hbmem_img04054242060426080500012020112713
/hobot_hand_gesture_detection
/hobot_hand_lmk_detection
/hobot_mono2d_body_detection
/image
/parameter_events
/rosout

Among these:

  • /image is the JPEG-encoded image published by the RDK after capturing from the MIPI sensor.
  • /hobot_hand_gesture_detection is the algorithm message published by the RDK containing hand gesture recognition results.
  • /cmd_vel is the motion control command published by the RDK.

On the PC side, you can use the command ros2 topic echo /cmd_vel in the terminal to view the motion control commands published by the RDK:

linear:
  x: -0.5
  y: 0.0
  z: 0.0
angular:
  x: 0.0
  y: 0.0
  z: 0.0
---
linear:
  x: 0.0
  y: 0.0
  z: 0.0
angular:
  x: 0.0
  y: 0.0
  z: -0.5
---

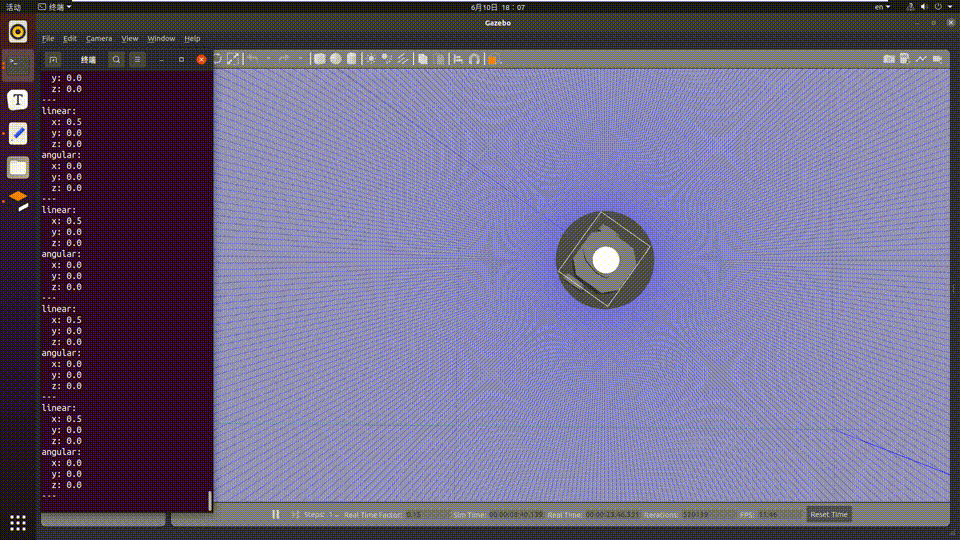

In the PC-side simulation environment, the robot car moves according to the hand gestures. The simulated motion effect is shown below:
