ICU User Guide

The ICU module is a software sub-module based on the S100 chip solution and serves as a foundational service software within the overall system. In the overall design of the S100, the ICU software primarily abstracts and uniformly manages hardware with input capture attributes within the system. The hardware layer IP involves two components: PWM and GPIO. This document focuses on the configuration and implementation of GPIO interrupts.

GPIO Interrupt User Guide

In the S100 MCU, GPIOs are organized into four IO groups, namely three PORTs: GPIO0, GPIO1, GPIO2, and GPIO_AON. Among these, the first three groups provide a total of 88 pins, while the GPIO_AON group provides 12 pins. For this part, refer to mcu/Config/McalCdd/gen_s100_sip_B_mcu1/Port/src/Port_PBcfg.c. All pins support interrupt trigger modes including rising edge, falling edge, both edges, and high/low level triggers.

ISR Function	IRQ	IRQ Define	Description
Gpio0_ExtIsr	68	MCUSYS_GPIO0_INTR	Gpio Mode
Gpio1_ExtIsr	69	MCUSYS_GPIO1_INTR	Gpio Mode
Gpio2_ExtIsr	70	MCUSYS_GPIO2_INTR	Gpio Mode
Gpio3_ExtIsr	361	AON_WAKEUP_GPIO_INTR	Gpio Mode

Port Configuration

Each pin on the S100 MCU supports at least one function. Therefore, before using GPIO interrupts, the pin's function and attributes must be configured through the Port subsystem, which is a redefinition process. Taking GPIO_MCU[20] and GPIO_MCU[21] as examples, the functions of these two pins are as follows:

FUNC0	IO TYPE0	FUNC1	IO TYPE1	FUNC2	IO TYPE2	FUNC3	IO TYPE3
SPI3_CSN0	O	DEBUG_OUT5	O	TRC_CTL	O	GPIO_MCU[20]	IO
SPI3_CSN1	IO	PPS_IN0	I	TRC_CLK	O	GPIO_MCU[21]	IO

These two pins need to be configured as FUNC3, i.e., GPIO mode. For an introduction and usage of Port, refer to the chapters Port User Guide and Port Development Guide. The specific configuration file is mcu/Config/McalCdd/gen_s100_sip_B_mcu1/Port/src/Port_PBcfg.c.

static const Port_Lld_PinConfigType Port_McuPinConfigs[PORT_MCU_MAX_NUM]=
{
    ...
    /* Pin Id,  Pin name,      IsUsed,        ModeChang,    SchmittTriger,  InputEnable,     IsUsedGpio,     DirChang,   PinMode,    Config Type,        Pull Type,       Drive Strength,         GpioDir,           GpioData*/
    {(uint8)20, "SPI3_CSN0", (boolean)TRUE, {(boolean)TRUE, (boolean)FALSE, (boolean)TRUE, (boolean)TRUE, (boolean)FALSE, GPIO, PORT_PIN_CONFIG_TYPE0, PORT_PULL_UP, PORT_DRIVE_DEFAULT, PORT_PIN_DIR_IN, PORT_PIN_LEVEL_LOW}},
    /* Pin Id,  Pin name,      IsUsed,        ModeChang,    SchmittTriger,  InputEnable,     IsUsedGpio,     DirChang,   PinMode,    Config Type,        Pull Type,       Drive Strength,         GpioDir,           GpioData*/
    {(uint8)21, "PWR_SHDN_N", (boolean)TRUE, {(boolean)TRUE, (boolean)FALSE, (boolean)TRUE, (boolean)TRUE, (boolean)FALSE, GPIO, PORT_PIN_CONFIG_TYPE0, PORT_PULL_UP, PORT_DRIVE_DEFAULT, PORT_PIN_DIR_IN, PORT_PIN_LEVEL_LOW}},
    ...
}

ICU Configuration

ICU file list:

• mcu/McalCdd/Icu/src/Icu_Lld_Gpio.c
• mcu/McalCdd/Icu/src/Icu_Lld.c
• mcu/McalCdd/Icu/src/Icu.c
• mcu/McalCdd/Icu/inc/Icu_Lld_Gpio.h
• mcu/McalCdd/Icu/inc/Icu_Lld.h
• mcu/McalCdd/Icu/inc/Icu_Types.h
• mcu/McalCdd/Icu/inc/Icu.h

GPIO interrupt functionality is uniformly managed by the ICU, and detailed attributes of its pins (such as interrupt type, callback function, etc.) must be configured through the ICU. The specific configuration file is mcu/Config/McalCdd/gen_s100_sip_B_mcu1/Icu/src/Icu_PBCfg.c, achieved by modifying structures such as Icu_ConfigType, Icu_Lld_IpConfigType, Gpio_Icu_IpConfigType, Icu_Lld_ChannelConfigType, Icu_ChannelConfigType, and Gpio_Icu_ChannelConfigType. Among these, Gpio_Icu_ChannelConfigType is the key structure responsible for defining the interrupt callback function, trigger type, and interrupt mask bit, etc.

Icu_ConfigType

#define ICU_CONF_IPS_PB 1
#define ICU_CONF_CHS_PB 2

/** @brief Array of configured Icu channels */
const Icu_ConfigType Icu_Config = {
    /** @brief Number of configured Icu ips */
    .nNumInstances = ICU_CONF_IPS_PB,
    /** @brief Number of configured Icu channels */
    .NumChannels = ICU_CONF_CHS_PB,
    /** @brief Number of configured Icu channels */
    .Icu_ChannelConfigPtr = Icu_ChConfig_PB,
    /** @brief Pointer to array of Icu channels */
    .Icu_LldConfigPtr = Icu_Lld_IpConfig_PB,
};

Parameter	Description
nNumInstances	Number of GPIO controller instances
NumChannels	Number of channels (or pins)
Icu_ChannelConfigPtr	Pointer to Icu_ChannelConfigType structure
Icu_LldConfigPtr	Pointer to Icu_Lld_IpConfigType structure

Icu_Lld_IpConfigType

#define ICU_CONF_IPS_PB 1

/** @brief Array of high level Icu channel Config Type*/
static Icu_Lld_IpConfigType Icu_Lld_IpConfig_PB[ICU_CONF_IPS_PB] = {
    /** @brief gpio module 0 */
    {
        /**< id of gpio icu module in the Icu configuration */
        .instanceNo = 0,
        /**< The IP type used. */
        .InstanceMode = ICU_GPIO_MODULE,
        /**< gpio IP configure type. */
        .GpioConfig = &Icu_Gpio_IpConfig_PB[0],
    },
};

Parameter	Description
instanceNo	Controller instance (e.g., 0 - GPIO0)
InstanceMode	GPIO or PWM mode
GpioConfig	Pointer to Icu_Lld_ChannelConfigType structure

Gpio_Icu_IpConfigType

#define ICU_GPIO_CONF_MODS_PB 1

/** @brief Array of gpio Icu ip Config Type channels */
static Gpio_Icu_IpConfigType Icu_Gpio_IpConfig_PB[ICU_GPIO_CONF_MODS_PB] = {
    /** @brief gpio module 1 */
    {
        /**< Number of gpio channels in the Icu configuration */
        .NumChannels = 2,
        /**< The Instance index used for the configuration of channel */
        .instanceNo = 0,
        /**< id of gpio icu module in the Icu configuration */
        .ChannelsConfig = Icu_Gpio_ChannelConfig_PB[0],
    },
};

Parameter	Description
NumChannels	Number of channels
instanceNo	Controller instance (e.g., 0 - GPIO0)
ChannelsConfig	Pointer to Gpio_Icu_ChannelConfigType structure

Icu_ChannelConfigType

#define ICU_CONF_CHS_PB 2

/** @brief Array of high level Icu channel Config Type*/
static Icu_ChannelConfigType Icu_ChConfig_PB[ICU_CONF_CHS_PB] = {
    /** @brief icu CH 0 */
    {
        /** Assigned ICU channel id*/
        .ChannelId = 0,
        /** @brief Pointer to the lld gpio channel pointer configuration, gpio 4 channel 0 */
        .Icu_LldChannelConfigPtr = &Icu_Lld_Gpio_ChannelConfig_PB[0][0],
    },
    /** @brief icu CH 1 */
    {
        /** Assigned ICU channel id*/
        .ChannelId = 1,
        /** @brief Pointer to the lld gpio channel pointer configuration, gpio 4 channel 1 */
        .Icu_LldChannelConfigPtr = &Icu_Lld_Gpio_ChannelConfig_PB[0][1],
    },
};

Parameter	Description
ChannelId	Channel identifier
Icu_LldChannelConfigPtr	Pointer to Icu_Lld_ChannelConfigType structure

Icu_Lld_ChannelConfigType

#define ICU_GPIO_CONF_MODS_PB 1

/** @brief Array of Gpio Channel ConfigType channels*/
static Icu_Lld_ChannelConfigType Icu_Lld_Gpio_ChannelConfig_PB[ICU_GPIO_CONF_MODS_PB][32] = {
    /** @brief gpio module 0 */
    {
        /** @brief gpio mod 0 channel 20 */
        {
            .ChannelMode = ICU_GPIO_MODULE,
            .instanceNo = 0,
            .gpioHwChannelConfig = &Icu_Gpio_ChannelConfig_PB[0][0],
        },
        /** @brief gpio mod 0 channel 21 */
        {
            .ChannelMode = ICU_GPIO_MODULE,
            .instanceNo = 0,
            .gpioHwChannelConfig = &Icu_Gpio_ChannelConfig_PB[0][1],
        },
    },
};

Parameter	Description
ChannelMode	GPIO or PWM mode
instanceNo	Controller instance (e.g., 0 - GPIO0)
gpioHwChannelConfig	Pointer to Gpio_Icu_ChannelConfigType structure

Gpio_Icu_ChannelConfigType

#define ICU_GPIO_CONF_MODS_PB 1

extern void Icu_Gpio_Channel_0_20_ISR(void);
extern void Icu_Gpio_Channel_0_21_ISR(void);

/** @brief Array of Gpio Channel ConfigType channels*/
static Gpio_Icu_ChannelConfigType Icu_Gpio_ChannelConfig_PB[ICU_GPIO_CONF_MODS_PB][32] = {
    /** @brief gpio module 0 */
    {
        /** @brief gpio mod 0 channel 20 */
        {
            /**< Assigned GPIO channel id*/
            .PinId = 20,
            /**< Assigned GPIO ip id*/
            .instanceNo = 0,
            /**< GPIO Default Start Edge */
            .DefaultStartEdge = GPIO_ICU_FALLING_EDGE,
            /**< Notification Enable.*/
            .NotificationEnable = TRUE,
            /**< The notification functions shall have no parameters and no return value.*/
            .GpioChannelNotification = Icu_Gpio_Channel_0_20_ISR,
            /**< Interrupt Enable or Disable . */
            .IntEnable = TRUE,
            /**< Interrupt Mask or Umask . */
            .IntMask = FALSE,
        },
        /** @brief gpio mod 0 channel 21 */
        {
            /**< Assigned GPIO channel id*/
            .PinId = 21,
            /**< Assigned GPIO ip id*/
            .instanceNo = 0,
            /**< GPIO Default Start Edge */
            .DefaultStartEdge = GPIO_ICU_FALLING_EDGE,
            /**< Notification Enable.*/
            .NotificationEnable = TRUE,
            /**< The notification functions shall have no parameters and no return value.*/
            .GpioChannelNotification = Icu_Gpio_Channel_0_21_ISR,
            /**< Interrupt Enable or Disable . */
            .IntEnable = IntEnable,
            /**< Interrupt Mask or Umask . */
            .IntMask = FALSE,
        },
    },
};

Parameter	Description
PinId	Pin number (or channel number)
instanceNo	Controller instance (e.g., 0 - GPIO0)
DefaultStartEdge	Interrupt trigger mode: 1. Falling edge 2. Rising edge 3. Rising or falling edge 4. High level 5. Low level
NotificationEnable	Whether to enable the callback
GpioChannelNotification	Callback function pointer (no parameters, no return value)
IntEnable	Whether to enable interrupt: - TRUE: Enable interrupt - FALSE: Disable interrupt
IntMask	Whether to mask interrupt: - TRUE: Mask interrupt - FALSE: Do not mask interrupt

Both IntEnable and IntMask are used for interrupt on/off control. The difference between them is:

• IntEnable: When FALSE, it fundamentally prevents interrupt generation, and the interrupt status register will not be set.
• IntMask: When TRUE, it only prevents the interrupt signal from being reported to the CPU, but the interrupt event still triggers and sets the bit in the status register.

Configuration suggestions:

• When enabling interrupt: IntEnable = TRUE and IntMask = FALSE.
• When disabling interrupt: IntEnable = FALSE and IntMask = TRUE.

The callback function is the final entry point after an interrupt is triggered. The complete flow is: Interrupt function -> ICU interrupt handler -> Callback function. NotificationEnable is used to control whether to execute the callback function. Setting it to FALSE will skip the callback but does not affect the occurrence of the interrupt or the generation of the status flag. To fully enable the interrupt and callback, you must ensure NotificationEnable = TRUE, IntEnable = TRUE, IntMask = FALSE, and GpioChannelNotification points to a specific callback function. It is recommended that the callback function name reflects its Instance and Channel, e.g., Icu_Gpio_Channel_0_20_ISR. The specific callback functions are defined in the file mcu/samples/Interrupt/src/gpio_Interrupt_test.c:

/** GPIO_MCU[20] interrupt callback function */
void Icu_Gpio_Channel_0_20_ISR(void)
{
	LogSync("enter Icu_Gpio_Channel_0_20_ISR!!!\r\n");
	/** Add user code here */
}

/** GPIO_MCU[21] interrupt callback function */
void Icu_Gpio_Channel_0_21_ISR(void)
{
	LogSync("enter Icu_Gpio_Channel_0_21_ISR!!!\r\n");
	/** Add user code here */
}

One important point to note is that users only need to implement business logic in the callback function; there is no need to manually clear the interrupt flag, as this operation is automatically handled by the ICU driver.

Interrupt Implementation

Before configuring an interrupt, it is necessary to identify the interrupt number (IRQ) bound to the target pin and its corresponding interrupt entry function. Based on the introduction to MCU GPIO interrupt resources earlier in this document, it can be seen that pins GPIO_MCU[20] and GPIO_MCU[21] share the interrupt entry function Gpio0_ExtIsr, which corresponds to interrupt number 68. The registration, priority configuration, and enabling process of the interrupt are defined in the source file mcu/McalCdd/Icu/src/Icu_Lld_Gpio.c.

void Icu_Gpio_Interrupt_Init(uint8 Instance, uint8 priority)
{
	uint8 cmd = Instance;

	switch (cmd) {
	case 0:
		INT_SYS_InstallHandler(MCUSYS_GPIO0_INTR, Gpio0_ExtIsr, 0);
		INT_SYS_SetPriority(MCUSYS_GPIO0_INTR, priority);
		INT_SYS_EnableIRQ(MCUSYS_GPIO0_INTR);
		break;
	case 1:
		INT_SYS_InstallHandler(MCUSYS_GPIO1_INTR, Gpio1_ExtIsr, 0);
		INT_SYS_SetPriority(MCUSYS_GPIO1_INTR, priority);
		INT_SYS_EnableIRQ(MCUSYS_GPIO1_INTR);
		break;
	case 2:
		INT_SYS_InstallHandler(MCUSYS_GPIO2_INTR, Gpio2_ExtIsr, 0);
		INT_SYS_SetPriority(MCUSYS_GPIO2_INTR, priority);
		INT_SYS_EnableIRQ(MCUSYS_GPIO2_INTR);
		break;
	case 3:
		INT_SYS_InstallHandler(AON_WAKEUP_GPIO_INTR, Gpio3_ExtIsr, 0);
		INT_SYS_SetPriority(AON_WAKEUP_GPIO_INTR, priority);
		INT_SYS_EnableIRQ(AON_WAKEUP_GPIO_INTR);
		break;
	default:
		break;
	}
}

void Icu_Gpio_Interrupt_DeInit(uint8 Instance)
{
	uint8 cmd = Instance;

	switch (cmd) {
	case 0:
		INT_SYS_DisableIRQ(MCUSYS_GPIO0_INTR);
		break;
	case 1:
		INT_SYS_DisableIRQ(MCUSYS_GPIO1_INTR);
		break;
	case 2:
		INT_SYS_DisableIRQ(MCUSYS_GPIO2_INTR);
		break;
	case 3:
		INT_SYS_DisableIRQ(AON_WAKEUP_GPIO_INTR);
		break;
	default:
		break;
	}
}

Users only need to call the Icu_Gpio_Interrupt_Init and Icu_Gpio_Interrupt_DeInit functions to enable and disable interrupts. The relevant implementation is located in mcu/samples/Interrupt/src/gpio_Interrupt_test.c.

/** init interrupt */
Icu_Gpio_Interrupt_Init(0, 30);

/** deinit interrupt */
Icu_Gpio_Interrupt_DeInit(0);

GPIO Interrupt Sample

Initialize GPIO interrupt on the MCU1 serial port terminal.

D-Robotics:/$ gpio_interrupt on
[0975.377836 0]INFO: Start gpio_interrupt test...

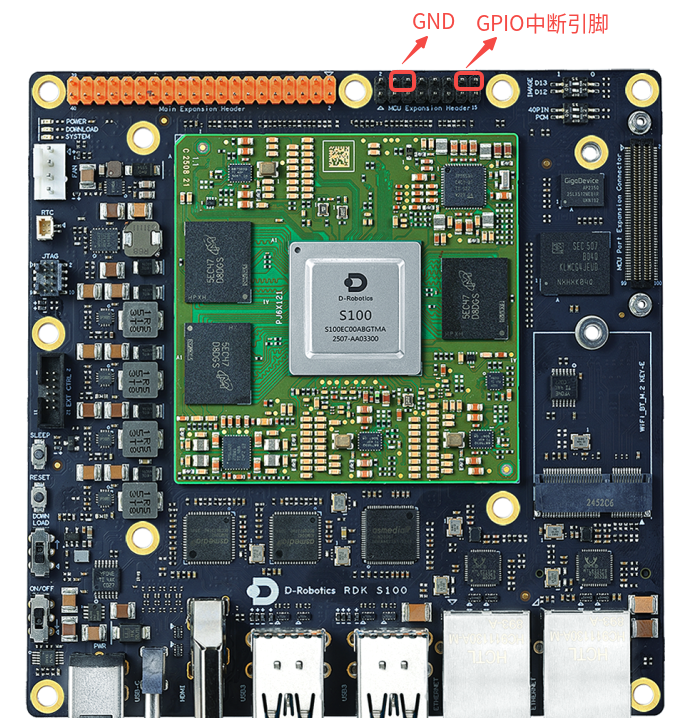

Connect one end of a jumper wire to the two GPIO pins shown in the figure below, and connect the other end to ground.

If the serial port prints the following, it indicates that the GPIO interrupt was triggered successfully.

# GPIO_MCU[20] callback function 0-instanceNo，20-PinId
[0667.710363 0]INFO: Enter Icu_Gpio_Channel_0_20_ISR!!!

# GPIO_MCU[21] callback function 0-instanceNo，21-PinId
[0593.171002 0]INFO: Enter Icu_Gpio_Channel_0_21_ISR!!!

Disable the GPIO interrupt using the following command:

D-Robotics:/$ gpio_interrupt off
[0673.558143 0]INFO: Stop gpio_interrupt test
