IPC Usage Guide

This section focuses on usage instructions related to the MCU side. For more details on IPC principles and usage, please refer to the IPC Module Introduction section.

IPC Configuration

An IPC has 8 channels but shares a single interrupt; therefore, an IPC can only be enabled on either MCU0 or MCU1, but not both simultaneously.

When using IPC on MCU1, two parts need to be configured:

Configure callback functions, which are triggered when IPC receives/sends data. Customers may also customize callback functions for handling data transmission errors. The following example uses IPC0 for illustration.

static Ipc_ChannelConfigType Ipc_ShmInstance0CfgChannel[8] = {
{
    .ChannelId = 0,
    .ChannelData   = {
        .NumPools = 1,
        .PoolCfg        = Ipc_ShmIpcInstance_0CfgIpcChannel_0BufPool,
        .RxCallback     = IpcTp_InsCan_RxCallback,
        .RxCallbackArg  = (NULL_PTR),
        .TxErrCallback    = DefaultTxErrCallback,
        .TxErrCallbackArg = (NULL_PTR),
    },
},
{
    .ChannelId = 1,
    .ChannelData   = {
        .NumPools = 1,
        .PoolCfg        = Ipc_ShmIpcInstance_0CfgIpcChannel_1BufPool,
        .RxCallback     = IpcTp_InsCan_RxCallback,
        .RxCallbackArg  = (NULL_PTR),
        .TxErrCallback    = DefaultTxErrCallback,
        .TxErrCallbackArg = (NULL_PTR),
    },
},
{
    .ChannelId = 2,
    .ChannelData   = {
        .NumPools = 1,
        .PoolCfg        = Ipc_ShmIpcInstance_0CfgIpcChannel_2BufPool,
        .RxCallback     = IpcTp_InsCan_RxCallback,
        .RxCallbackArg  = (NULL_PTR),
        .TxErrCallback    = DefaultTxErrCallback,
        .TxErrCallbackArg = (NULL_PTR),
    },
},
{
    .ChannelId = 3,
    .ChannelData   = {
        .NumPools = 1,
        .PoolCfg        = Ipc_ShmIpcInstance_0CfgIpcChannel_3BufPool,
        .RxCallback     = IpcTp_InsCan_RxCallback,
        .RxCallbackArg  = (NULL_PTR),
        .TxErrCallback    = DefaultTxErrCallback,
        .TxErrCallbackArg = (NULL_PTR),
    },
},
{
    .ChannelId = 4,
    .ChannelData   = {
        .NumPools = 1,
        .PoolCfg        = Ipc_ShmIpcInstance_0CfgIpcChannel_4BufPool,
        .RxCallback     = IpcTp_InsCan_RxCallback,
        .RxCallbackArg  = (NULL_PTR),
        .TxErrCallback    = DefaultTxErrCallback,
        .TxErrCallbackArg = (NULL_PTR),
    },
},
{
    .ChannelId = 5,
    .ChannelData   = {
        .NumPools = 1,
        .PoolCfg        = Ipc_ShmIpcInstance_0CfgIpcChannel_5BufPool,
        .RxCallback     = IpcTp_InsCan_RxCallback,
        .RxCallbackArg  = (NULL_PTR),
        .TxErrCallback    = DefaultTxErrCallback,
        .TxErrCallbackArg = (NULL_PTR),
    },
},
{
    .ChannelId = 6,
    .ChannelData   = {
        .NumPools = 1,
        .PoolCfg        = Ipc_ShmIpcInstance_0CfgIpcChannel_6BufPool,
        .RxCallback     = IpcTp_InsCan_RxCallback,
        .RxCallbackArg  = (NULL_PTR),
        .TxErrCallback    = DefaultTxErrCallback,
        .TxErrCallbackArg = (NULL_PTR),
    },
},
{
    .ChannelId = 7,
    .ChannelData   = {
        .NumPools = 1,
        .PoolCfg        = Ipc_ShmIpcInstance_0CfgIpcChannel_7BufPool,
        .RxCallback     = IpcTp_InsCan_RxCallback,
        .RxCallbackArg  = (NULL_PTR),
        .TxErrCallback    = DefaultTxErrCallback,
        .TxErrCallbackArg = (NULL_PTR),
    },
},
};

Set receive_coreid. If IPC is used on MCU1, set receive_coreid=Ipc_Receive_Core1. Ensure that the IPC configuration on MCU0 matches accordingly.

MCU0 file path: /mcu/Config/McalCdd/gen_s100_sip_B/Ipc/src/Ipc_Cfg.c
MCU1 file path: /mcu/Config/McalCdd/gen_s100_sip_B_mcu1/Ipc/src/Ipc_Cfg.c

Ipc_InstanceConfigType Ipc_ShmCfgInstances0 = {
    .Ipc_InstanceId       = 0U,
    .Ipc_ChannelNum       = 8U,
    .LocalCtlAddr         = 0xcdd9e00,
    .RemoteCtlAddr        = 0xcdd9400,
    .CtlShmSize           = 0xa00,
    .LocalDataAddr        = 0xb4080000,
    .RemoteDataAddr       = 0xb4000000,
    .DataShmSize          = 0x80000,
    .SendDmaChanIdx       = 0xffU,
    .Async                = (TRUE),
    .HwInfo               = {
        .Ipc_HwId         = CPU_IPC0,/**< the id of the Hardware */
        .RecvIrqUsed      = (TRUE),/**< Whether to use Recv interrupt */
        .SendMboxId       = 0,/**< the mailbox id */
        .RecvMboxId       = 16,/**< the mailbox id */
        .RemoteIrq        = 16,
        .LocalIrq         = 0,
        .UseMDMA          = (TRUE),
    },
    .Ipc_ChannelConfigPtr = Ipc_ShmInstance0CfgChannel,
    .receive_coreid = Ipc_Receive_Core1,
};

IPC Usage Overview

instance0

Instance	Channel	receive core id	Description
instance0	0	Ipc_Receive_Core1	CAN Reserve
instance0	1	Ipc_Receive_Core1	CAN Reserve
instance0	2	Ipc_Receive_Core1	CAN8
instance0	3	Ipc_Receive_Core1	CAN9
instance0	4	Ipc_Receive_Core1	CAN5
instance0	5	Ipc_Receive_Core1	CAN Reserve
instance0	6	Ipc_Receive_Core1	CAN6
instance0	7	Ipc_Receive_Core1	CAN7

instance1

Instance	Channel	receive core id	Description
instance1	0	Ipc_Receive_Core0	Regulatory Reserve
instance1	1	Ipc_Receive_Core0	Regulatory Reserve
instance1	2	Ipc_Receive_Core0	Regulatory Reserve
instance1	3	Ipc_Receive_Core0	Regulatory Reserve
instance1	4	Ipc_Receive_Core0	Regulatory Reserve
instance1	5	Ipc_Receive_Core0	Regulatory Reserve
instance1	6	Ipc_Receive_Core0	Regulatory Reserve
instance1	7	Ipc_Receive_Core0	Regulatory Reserve

instance2

Instance	Channel	receive core id	Description
instance2	0	Ipc_Receive_Core0	Regulatory Reserve
instance2	1	Ipc_Receive_Core0	Regulatory Reserve

instance3

Instance	Channel	receive core id	Description
instance3	0	Ipc_Receive_Core0	Crypto Reserve
instance3	1	Ipc_Receive_Core0	Crypto Reserve
instance3	2	Ipc_Receive_Core0	Crypto Reserve
instance3	3	Ipc_Receive_Core0	Crypto Reserve
instance3	4	Ipc_Receive_Core0	Crypto Reserve
instance3	5	Ipc_Receive_Core0	Crypto Reserve
instance3	6	Ipc_Receive_Core0	Crypto Reserve
instance3	7	Ipc_Receive_Core0	Crypto Reserve

instance4

Instance	Channel	receive core id	Description
instance4	0	Ipc_Receive_Core0	Customer Reserved: Reserve
instance4	1	Ipc_Receive_Core0	Customer Reserved: Reserve
instance4	2	Ipc_Receive_Core0	Customer Reserved: Reserve
instance4	3	Ipc_Receive_Core0	Customer Reserved: Reserve
instance4	4	Ipc_Receive_Core0	Customer Reserved: Reserve
instance4	5	Ipc_Receive_Core0	Customer Reserved: Reserve
instance4	6	Ipc_Receive_Core0	Customer Reserved: Reserve
instance4	7	Ipc_Receive_Core0	Customer Reserved: Reserve

instance5

Instance	Channel	receive core id	Description
instance5	0	Ipc_Receive_Core0	Customer Reserved: Reserve
instance5	1	Ipc_Receive_Core0	Customer Reserved: Reserve
instance5	3	Ipc_Receive_Core0	Customer Reserved: Reserve
instance5	4	Ipc_Receive_Core0	Customer Reserved: Reserve
instance5	5	Ipc_Receive_Core0	Customer Reserved: Reserve
instance5	6	Ipc_Receive_Core0	Customer Reserved: Reserve
instance5	7	Ipc_Receive_Core0	Customer Reserved: Reserve

instance6

Instance	Channel	receive core id	Description
instance6	0	Ipc_Receive_Core0	Customer Reserved: Reserve
instance6	1	Ipc_Receive_Core0	Customer Reserved: Reserve
instance6	2	Ipc_Receive_Core0	Customer Reserved: Reserve
instance6	3	Ipc_Receive_Core0	Customer Reserved: Reserve
instance6	4	Ipc_Receive_Core0	Customer Reserved: Reserve
instance6	5	Ipc_Receive_Core0	Customer Reserved: Reserve
instance6	6	Ipc_Receive_Core0	Customer Reserved: Reserve
instance6	7	Ipc_Receive_Core0	Customer Reserved: Reserve

instance7

Instance	Channel	receive core id	Description
instance7	0	Ipc_Receive_Core1	runcmd
instance7	1	Ipc_Receive_Core1	runcmd
instance7	2	Ipc_Receive_Core1	SPI
instance7	3	Ipc_Receive_Core1	SPI
instance7	4	Ipc_Receive_Core1	UART
instance7	5	Ipc_Receive_Core1	UART
instance7	6	Ipc_Receive_Core1	I2C
instance7	7	Ipc_Receive_Core1	I2C

instance8

Instance	Channel	Function	Description
instance8	0	Ipc_Receive_Core0	Reserve
instance8	1	Ipc_Receive_Core0	Reserve
instance8	2	Ipc_Receive_Core0	Reserve
instance8	3	Ipc_Receive_Core0	Reserve
instance8	4	Ipc_Receive_Core0	Reserve
instance8	5	Ipc_Receive_Core0	Reserve
instance8	6	Ipc_Receive_Core0	Reserve
instance8	7	Ipc_Receive_Core0	Crypto Reserve

Application Sample

tip

All application samples run on the Acore side and communicate with MCU1. Therefore, the MCU1 system must be running before use.

How to run: MCU1 Startup Steps

IpcBox Feature Overview

IpcBox is an IPC application extension that uses instance7 to transparently transmit peripheral data and execute CMD applications on the MCU side, referred to as the RunCmd application.

For usage instructions on the Acore side, refer to the IPC Module Introduction section.

Transparent Transmission of Peripheral Data

Implementation Status:

Item	Implementation Status	Remarks
SPI Passthrough	Not Implemented	Not Implemented
I2C Passthrough	Not Implemented	Not Implemented
UART Passthrough	Implemented	Fixed to UART5

tip

Continuously being updated

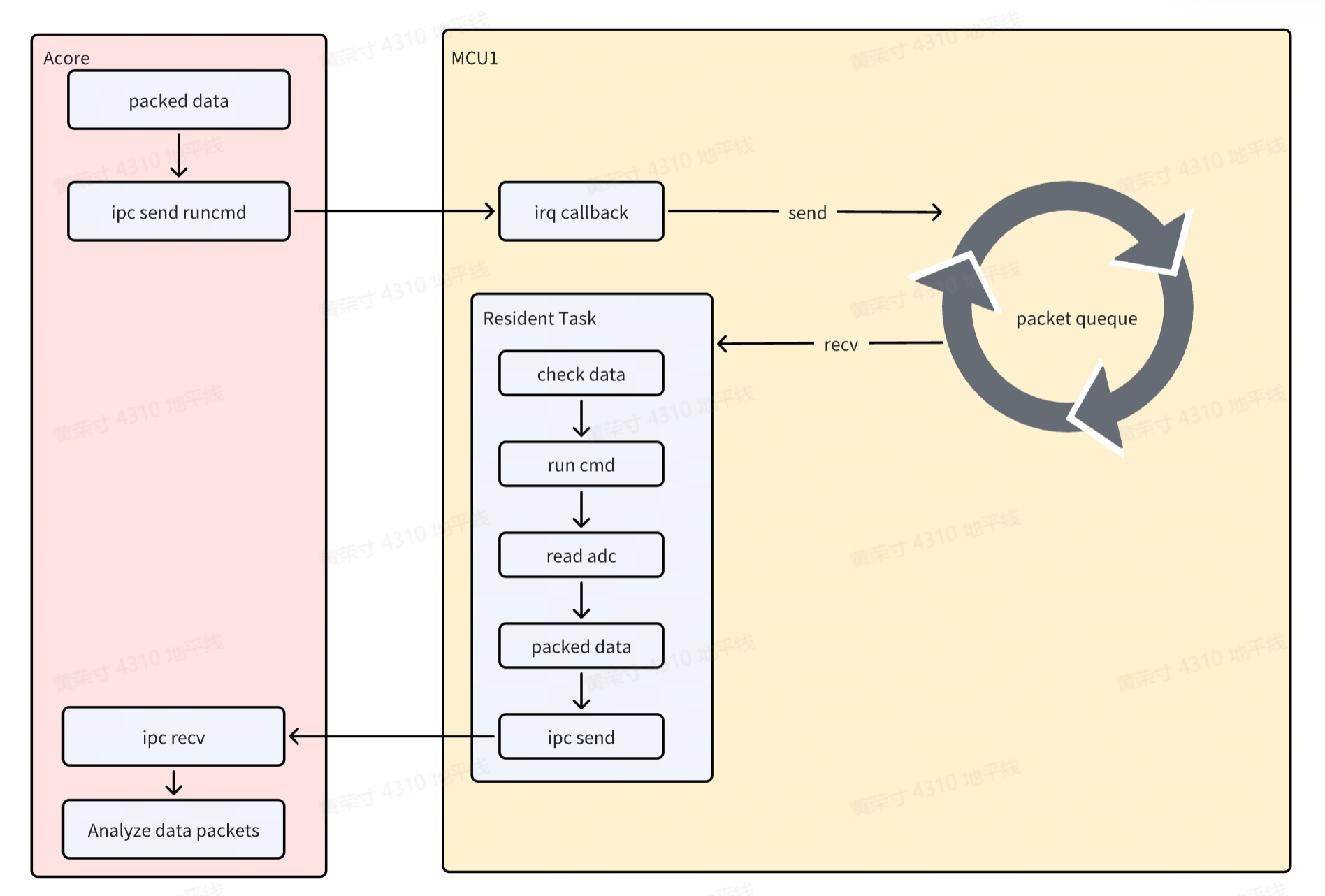

RUNCMD Application

The implementation principle consists mainly of the following two processes:

Receiving Process
When Acore sends data to the MCU, it triggers an interrupt on the MCU. Within the interrupt callback, the data is stored into a queue.
Execution Process
- The MCU runs a persistent thread that continuously checks whether the queue contains data. If data is present, it validates and parses the data, identifies the CMD command, and executes it.
- The CMD application in FreeRTOS is similar to Uboot’s CMD framework. This approach allows users to easily customize their own applications. In this scenario, the executed CMD reads the ADC value and returns it to Acore via IPC.

Architecture Diagram of CAN Data Transparent Transmission between Acore and MCU

Application Programming Interface

This section describes the IPC interfaces on the MCU side.

void Ipc_MDMA_Init(Ipc_InstanceConfigType* pConfigPtr, uint32 InstanceId)

Description: Ipc MDMA Init.

Sync/Async: Synchronous
Parameters (in)
    pConfigPtr: pointer to the device configuration parameters
    InstanceId: Instance ID
Parameters (inout)
    None
Parameters (out)
    None
Return value: None

void Ipc_MDMA_DeInit(uint32 InstanceId)

Description: Subsystem driver deinitialization function.

Sync/Async: Synchronous
Parameters (in)
    InstanceId: Instance ID
Parameters (inout)
    None
Parameters (out)
    None
Return value: None

void Ipc_GetVersionInfo(Std_VersionInfoType * versioninfo)

Description: Get driver version.

Sync/Async: Synchronous
Parameters (in)
    None
Parameters (inout)
    versioninfo: pointer to Version Info
Parameters (out)
    None
Return value: None

Std_ReturnType Ipc_MDMA_CheckRemoteCoreReady(uint32 InstanceId)

Description: Check whether the remote core is ready.

Sync/Async: Synchronous
Parameters (in)
    InstanceId: Instance ID
Parameters (inout)
    None
Parameters (out)
    None
Return value: Std_ReturnType
    E_OK: remote core is ready
    IPC_E_PARAM_ERROR: illegal parameter
    IPC_E_DRIVER_NOT_INIT: Driver is not initialized
    IPC_E_INSTANCE_NOT_READY_ERROR: remote core is not ready
    IPC_E_CHANNEL_NOT_OPEN: Instance is not open

Std_ReturnType Ipc_MDMA_SendMsg(uint32 InstanceId, uint32 ChanId, uint32 Size, uint8* Buf, uint32 Timeout)

Description: Send message.

Sync/Async: Synchronous
Parameters (in)
    InstanceId: Instance ID
    ChanId: Channel ID
    Size: size of the buffer to be sent
    Buf: pointer to the memory containing the data to be sent
    Timeout: timeout (in microseconds)
Parameters (inout)
    None
Parameters (out)
    None
Return value: Std_ReturnType
    E_OK: success
    IPC_E_PARAM_ERROR: illegal parameter
    IPC_E_DRIVER_NOT_INIT: Driver is not initialized
    IPC_E_CHANNEL_NOT_OPEN: Instance is not open
    IPC_E_TIMEOUT_ERROR: send timeout
    IPC_E_NO_MEMORY_ERROR: insufficient memory to send buffer
    IPC_E_CHECKRESERROR: resource check error

tip

DMA hardware requires 16-byte alignment for transfer addresses. The buffer should be defined as follows, ensuring both the starting address and size are 16-byte aligned:
static uint8 attribute((aligned(16))) Ipc_Send_Buf[8192];

Std_ReturnType Ipc_MDMA_PollMsg(uint32 InstanceId)

Description: Poll for messages if the instance does not use interrupts to receive data.

Sync/Async: Synchronous
Parameters (in)
    InstanceId: Instance ID
Parameters (inout)
    None
Parameters (out)
    None
```Return value: Std_ReturnType
    E_OK: success
    IPC_E_PARAM_ERROR: param is illegal
    IPC_E_DRIVER_NOT_INIT: Driver is not init
    IPC_E_CHANNEL_NOT_OPEN: Instance is not open
    IPC_E_NO_DATA_TO_RECEIVE_ERROR: No data to be received

Std_ReturnType Ipc_MDMA_OpenInstance(uint32 InstanceId)

Description: Open an instance pointed to by ID.

Sync/Async: Synchronous
Parameters(in)
    InstanceId: Instance id
Parameters(inout)
    None
Parameters(out)
    None
Return value: Std_ReturnType
    E_OK: success
    IPC_E_DRIVER_NOT_INIT: Driver is not init
    IPC_E_CHANNEL_NOT_CLOSE: Instance has been opened
    IPC_E_PARAM_ERROR: param is illegal

Std_ReturnType Ipc_MDMA_CloseInstance(uint32 InstanceId)

Description: Close an instance pointed to by ID.

Sync/Async: Synchronous
Parameters(in)
    InstanceId: Instance id
Parameters(inout)
    None
Parameters(out)
    None
Return value: Std_ReturnType
    E_OK: success
    IPC_E_DRIVER_NOT_INIT: Driver is not init
    IPC_E_CHANNEL_NOT_CLOSE: Instance has been opened
    IPC_E_PARAM_ERROR: param is illegal

Std_ReturnType Ipc_MDMA_TryGetHwResource(uint32 InstanceId, uint32 ChanId, uint32 BufSize)

Description: Try to get hardware resource.

Sync/Async: Synchronous
Parameters(in)
    InstanceId ChanId BufSize: Instance id Channel Id buf size
Parameters(inout)
    None
Parameters(out)
    None
Return value: Std_ReturnType
    E_OK: success
    IPC_E_DRIVER_NOT_INIT: Driver is not init
    IPC_E_DEVICE_BUSY: Instance is busy.
    IPC_E_MDMA_BUSY: Send MDMA is busy.
    IPC_E_NO_BUF_ERROR: no buffer
    IPC_E_CHANNEL_NOT_OPEN: Instance has been closed

IPC Configuration​

IPC Usage Overview​

instance0​

instance1​

instance2​

instance3​

instance4​

instance5​

instance6​

instance7​

instance8​

Application Sample​

IpcBox Feature Overview​

Transparent Transmission of Peripheral Data​

RUNCMD Application​

Application Programming Interface​

void Ipc_MDMA_Init(Ipc_InstanceConfigType* pConfigPtr, uint32 InstanceId)​

void Ipc_MDMA_DeInit(uint32 InstanceId)​

void Ipc_GetVersionInfo(Std_VersionInfoType * versioninfo)​

Std_ReturnType Ipc_MDMA_CheckRemoteCoreReady(uint32 InstanceId)​

Std_ReturnType Ipc_MDMA_SendMsg(uint32 InstanceId, uint32 ChanId, uint32 Size, uint8* Buf, uint32 Timeout)​

Std_ReturnType Ipc_MDMA_PollMsg(uint32 InstanceId)​

Std_ReturnType Ipc_MDMA_OpenInstance(uint32 InstanceId)​

Std_ReturnType Ipc_MDMA_CloseInstance(uint32 InstanceId)​

Std_ReturnType Ipc_MDMA_TryGetHwResource(uint32 InstanceId, uint32 ChanId, uint32 BufSize)​
