7.6 RDK S100 Build System Development Guide

7.6.1 Overview​

This section is primarily intended for users who need to customize the RDK build system. For instructions on using rdk_gen, please refer to the README.md in the rdk_gen repository.

Basic usage instructions:

# Online image building: download required deb packages from D-Robotics and third-party APT repositories
sudo ./pack_image.sh

# Offline image building: only install deb packages under out/product/deb_packages.
# When using this option, ensure that the deb packages in out/product/deb_packages meet expectations,
# and that precompiled rootfs packages already exist under out/product/rootfs_packages.
sudo ./pack_image.sh -l

# Only set up the deb package build environment without packing an image
sudo ./pack_images.sh -p

# Build all deb packages
./mk_debs.sh

# Build a specific deb package (e.g., hobot-configs)
./mk_debs.sh hobot-configs

7.6.2 Precompiled Root Filesystem Package Build Instructions​

The root filesystem for RDK S100 is generated using multistrap + chroot.

multistrap​

Official Documentation​

Tool Introduction​

In summary, multistrap is an alternative tool to debootstrap for generating root filesystems based on Debian/Ubuntu APT repositories. It uses one or more configuration files to define which APT sources to use and which packages should be included by default in the generated root filesystem.

Key differences from debootstrap include:

  1. Flexibility: multistrap allows users to fully customize all packages within the newly generated root filesystem—including those marked as essential in APT sources—but users must ensure the completeness and usability of the resulting root filesystem themselves.
  2. Build Process: Unlike debootstrap, the multistrap generation process can be summarized in the following steps. The key difference lies in step 4: multistrap only decompresses packages without configuring them (i.e., without executing [pre/post]install scripts):
    1. Read configuration file(s)
    2. Fetch metadata from specified APT sources according to the configuration
    3. Attempt to download specified packages per the configuration
    4. Decompress specified packages per the configuration

In D-Robotics's provided multistrap build script, based on practical experience, we implement package configuration using binfmt-support + chroot under sudo privileges, enabling users to directly flash the generated root filesystem onto the board for immediate use.

Configuration File Introduction​

multistrap supports both single-file and multi-file configurations. In multi-file mode, the include field allows including all content from a base configuration file, enabling version-specific customization—greatly simplifying maintenance across multiple filesystem variants.

Configuration files referenced in the following sections are located at the S100 code path: samplefs/configs:

$ tree samplefs/configs/
samplefs/configs/
├── jammy-base.conf
├── jammy-desktop.conf
├── jammy-server.conf
└── pip-requirements.list

0 directories, 4 files
Basic Format Introduction​

For detailed field descriptions, please refer to the official documentation. Here, we focus on explaining key configurations used in D-Robotics's setup.

  1. Field format: key1=value1 defines the value of field "key1" as "value1".
  2. Field sets (stanzas/sections): Defined by [Some-Section], grouping all fields from that line until the next [Next-Section] into a single "Section".

Key fields explained:

  • include
    Specifies the path to configuration files to be included.
  • bootstrap
    Defines the stanza containing APT sources used to generate the root filesystem and the packages to be downloaded and decompressed.
  • aptsources
    Defines the stanza specifying APT sources to be saved under /etc/sources.list.d/ in the generated root filesystem. Note: These sources do not necessarily need to match those used in bootstrap, but we strongly recommend that the sources defined in aptsources are a superset of those in bootstrap.
  • source / suite / components / omitdebsrc
    Define key parameters for APT sources. Refer to the APT source format definition for details:
    • source: Root URL of the APT repository, corresponding to the "uri" field in APT source format.
    • suite: Suite name of the APT repository, corresponding to the "suite" field (e.g., Ubuntu code names like jammy, focal, or updates/security suites like jammy-updates, jammy-security).
    • components: Repository components, matching the "component" field; multiple components can be specified.
    • omitdebsrc: Whether to skip downloading source packages (*.dsc, etc.) when fetching metadata and packages. Typically set to true to accelerate builds.
  • packages
    Specifies packages to be fetched. Multiple packages can be listed in one packages field (space-separated), and the union of all packages fields forms the final package list.
Multi-file Configuration Example​

Refer to samplefs/configs/jammy-desktop.conf.

RDK S100 Implementation​

Configuration File Design​

By default, RDK S100 splits multistrap configuration into three parts:

  • jammy-base.conf: Configures common defaults for all RDK S100 root filesystems, including APT sources and packages included in all variants.
  • jammy-desktop.conf: Adds desktop-specific packages on top of jammy-base.conf.
  • jammy-server.conf: Adds server-specific packages on top of jammy-base.conf.

Build Process Instructions​

Users typically build the root filesystem using the script samplefs/make_ubuntu_samplefs.sh. If invoked with sudo, the build process includes package configuration, significantly increasing build time.

If invoked without sudo, package configuration is skipped, reducing build time—but on first boot, the board must run the following command to initialize the system and reboot for proper operation:

rm -rf /var/lock/* ; dpkg --configure -a --force-confdef --force-confold ; systemctl enable /etc/systemd/system/S*.service
Tip

It is recommended to invoke samplefs/make_ubuntu_samplefs.sh with sudo.

The script must be run from within the samplefs directory.

Running sudo ./make_ubuntu_samplefs.sh without arguments defaults to building the desktop image using jammy-desktop.conf.

To specify a custom config file:
sudo ./make_ubuntu_samplefs.sh build <config_file_name>
For example, if you create a new config new-desktop.conf, place it in samplefs/configs/ and run:
sudo ./make_ubuntu_samplefs.sh build new-desktop.conf

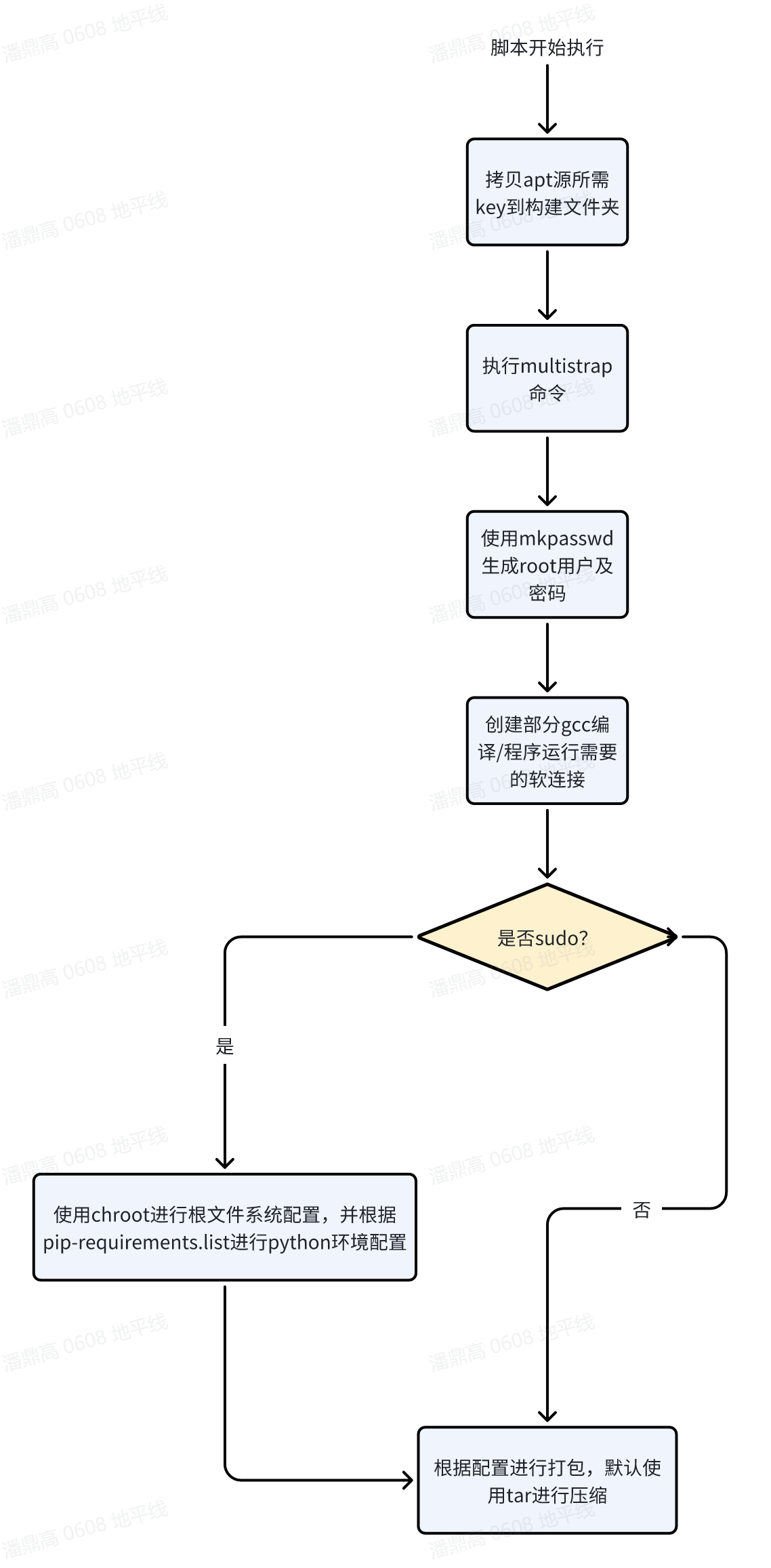

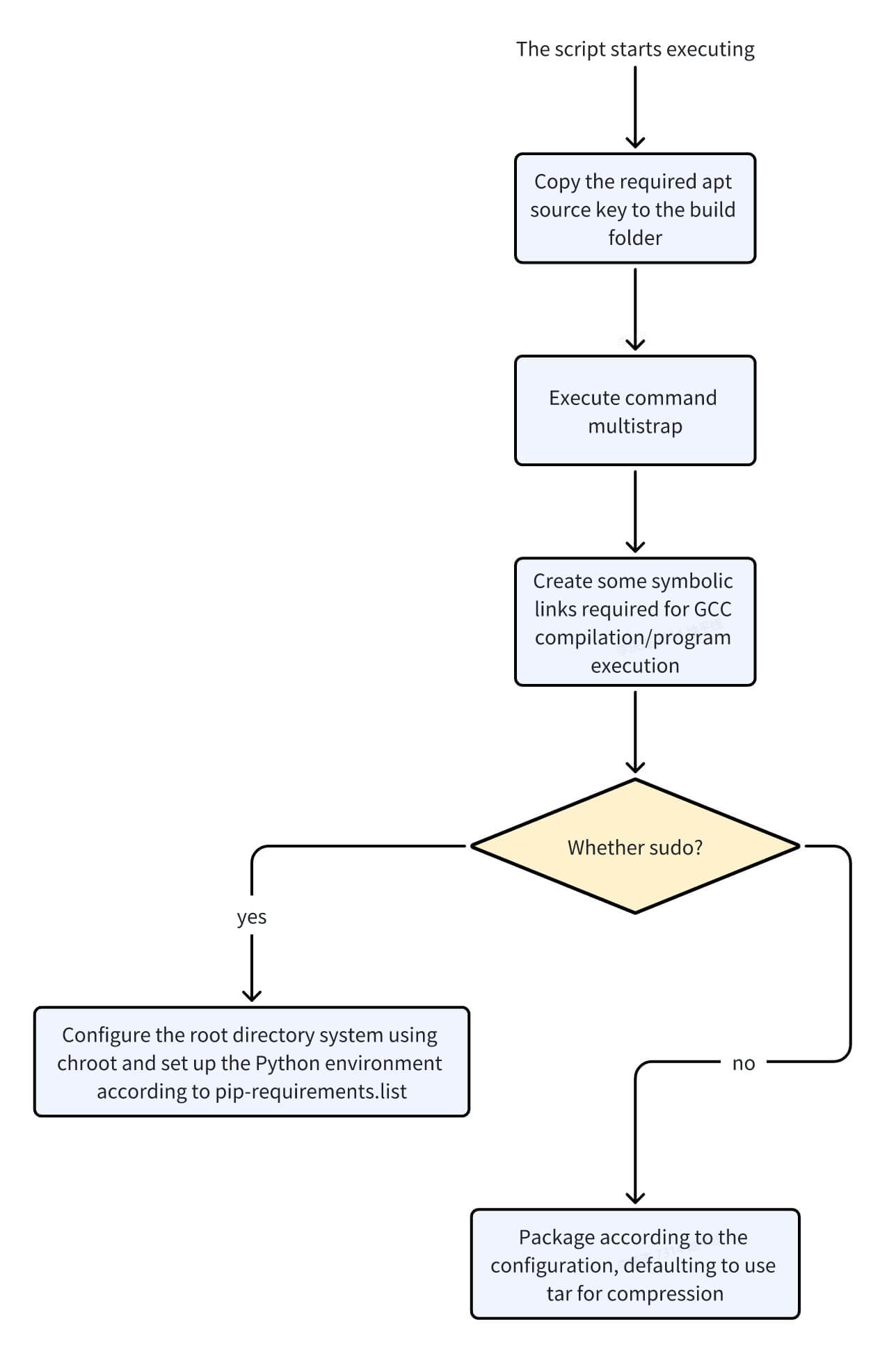

Build workflow diagram: samplefs_flowchart

Methods for Trimming/Customizing the Root Filesystem​

Tip

The Priority field in APT source (deb package control info) determines trimming/customization behavior.
By default, multistrap installs all packages with Priority "Required".
D-Robotics also ensures packages marked as "important" are installed.

Trimming/Customizing Packages Not Marked "important" or "required"​

Users can directly remove unwanted packages from the packages fields in config files like samplefs/configs/jammy-base.conf, or define a new stanza and update the bootstrap field in [General] to exclude the original stanza and include the new one.

Trimming/Customizing Packages Marked "important" or "required"​

Note: APT maintainers typically mark the minimal system package set (for Ubuntu/Debian versions) as "Required", but further trimming is possible. At this level, users must guarantee the completeness and usability of the resulting root filesystem.

Steps:

  1. Add omitrequired=true in the [General] stanza.
  2. Explicitly define all required packages in the Packages stanza.

7.6.3 RDK S100 Deb Package Build Process​

Introduction​

RDK S100 manages D-Robotics-customized user-space features as deb packages. Source code for building these deb packages is stored under the SDK's source/ directory.

Build Script Introduction​

The entry script for building debs is mk_debs.sh, located in the SDK root directory. Users can build repository-contained deb packages via this script.

Deb Package Source Directory Structure​

All directories under source/, except bootloader, kernel, and hobot-drivers, contain source code for D-Robotics-customized deb packages. Directories like hobot-spdev, hobot-camera, and hobot-io include source code for corresponding dynamic libraries; compiling these packages via mk_debs.sh triggers compilation of their source code.

Basic structure of a deb source directory (using hobot-configs as an example):

hobot-configs/
├── LICENSE          # License information for the deb source
├── README.md        # Brief description of the deb package
├── VERSION          # Version number in major.minor.patch format; timestamp appended during build
└── debian           # Root directory for the deb package (mirrors root filesystem upon installation)
    ├── DEBIAN       # Deb metadata
    |   ├── postinst # Standard deb script: runs after file copying during dpkg install
    │   ├── postrm   # Standard deb script: runs after file deletion during dpkg removal
    │   ├── preinst  # Standard deb script: runs before file copying during dpkg install
    │   └── prerm    # Standard deb script: runs before file deletion during dpkg removal
    ├── etc          # Files to copy to rootfs (e.g., this dir → /etc on target)
    ├── lib          # Files to copy to rootfs
    └── usr          # Files to copy to rootfs

For deb packages containing source code (e.g., hobot-camera), additional source directories appear alongside debian:

hobot-camera/
├── LICENSE
├── README.md
├── VERSION
├── debian
│   ├── DEBIAN
│   ├── etc
│   └── usr
├── drivers             # Source code directory requiring compilation
│   ├── Makefile        # Entry Makefile for compilation
│   ├── deserial        # Subdirectory
│   ├── inc
│   └── sensor
├── lib -> ../hobot-multimedia/debian/usr/hobot/lib # Symlink for easier compilation
├── sensor_calibration       # Sensor tuning library (example only; actual libs may vary)
│   └── lib_imx219_linear.so
└── tuning_tool              # D-Robotics-provided sensor tuning tool
    ├── bin
    ├── cfg
    ├── control_tool
    ├── res
    └── scripts

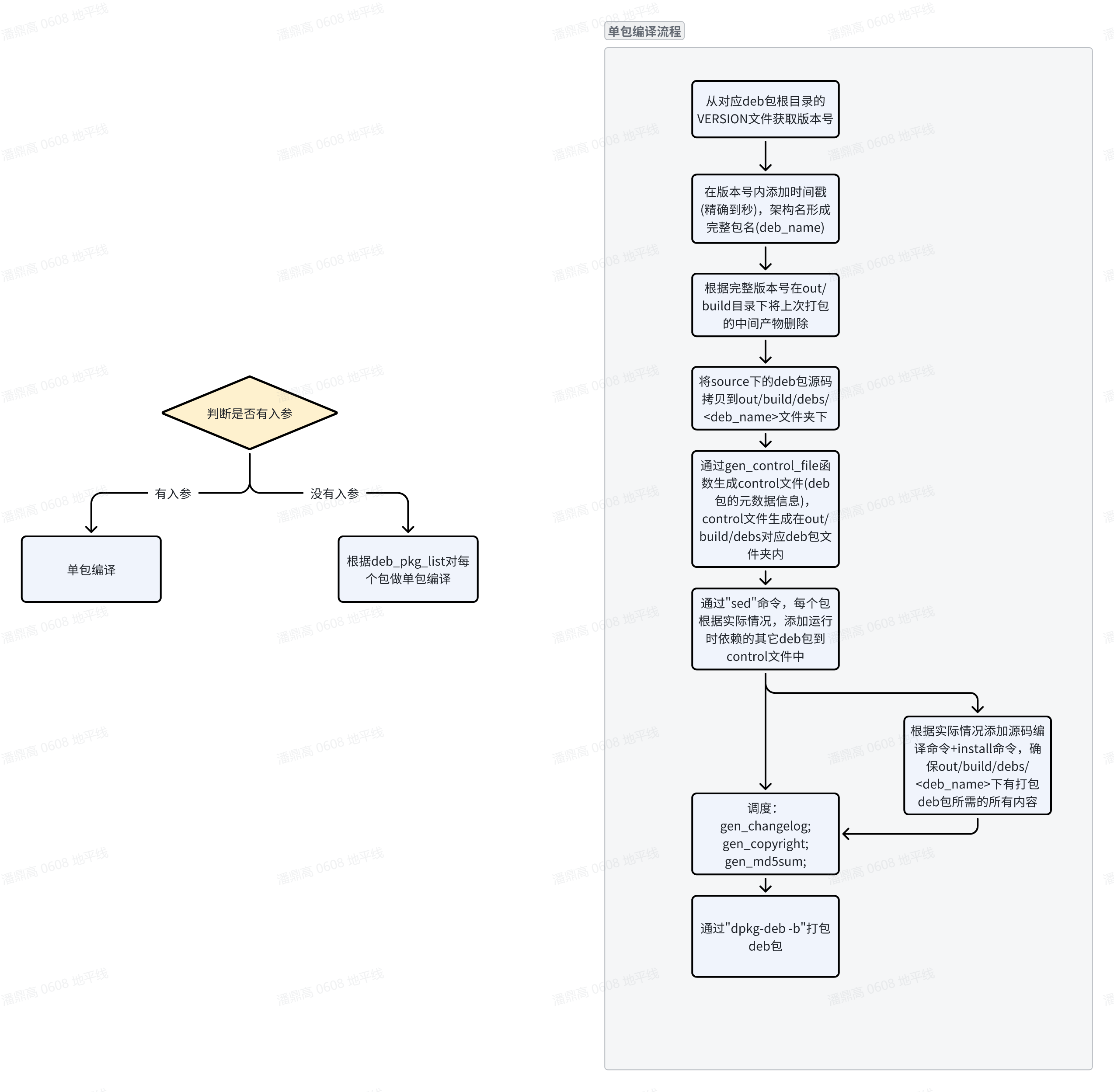

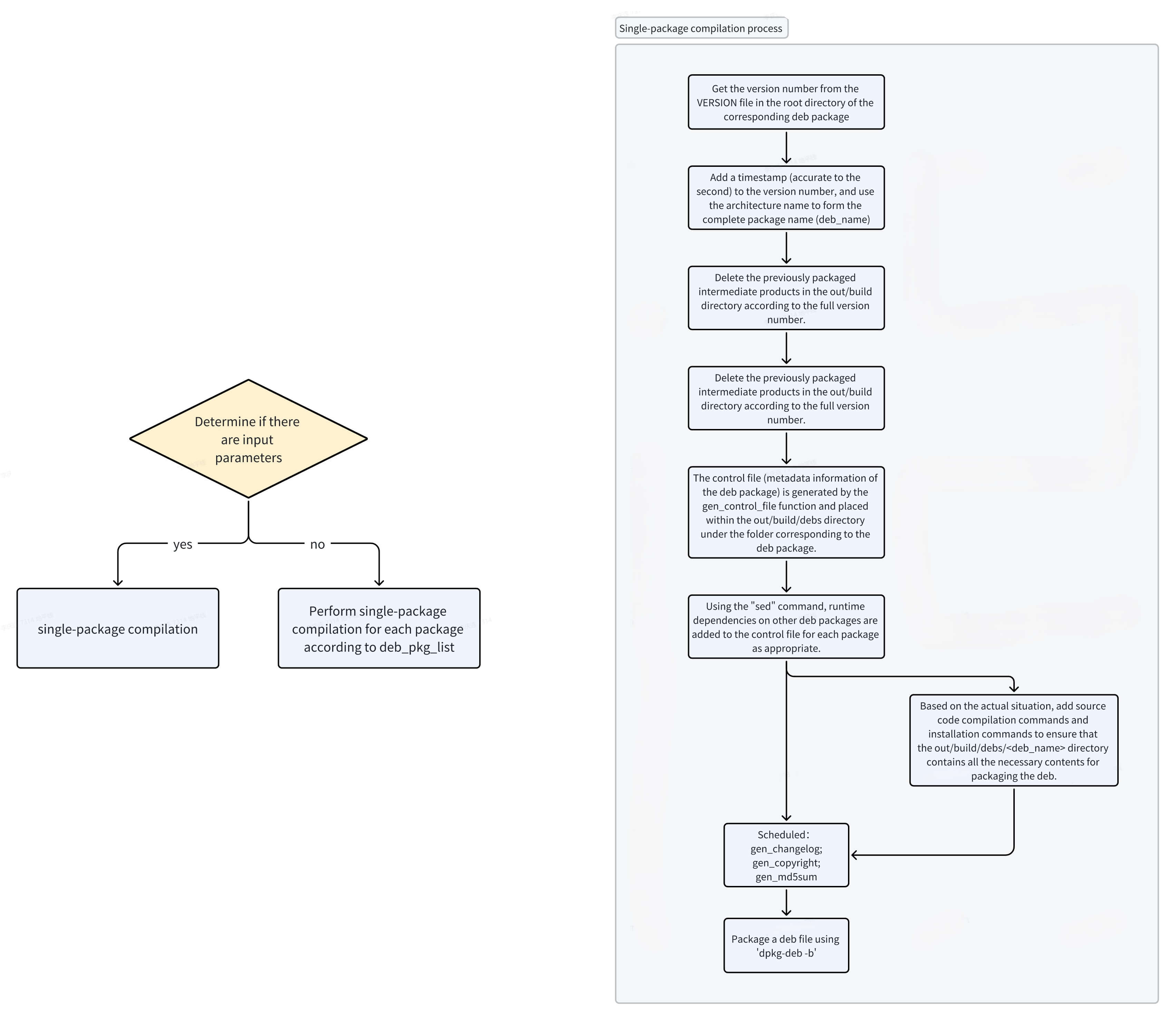

Build Process Overview​

For full details, refer to the mk_debs.sh script implementation. Simplified workflow: mk_debs_flowchart

Custom Deb Package Creation Guide​

  1. Create a new directory under source/ named after your package (e.g., new_package).
  2. Inside source/new_package, create a debian directory containing four (possibly empty) standard deb scripts:
    • preinst: Runs before file copying during package installation.
    • postinst: Runs after file copying during package installation.
    • prerm: Runs before file deletion during package removal.
    • postrm: Runs after file deletion during package removal.
  3. To auto-build this package when running mk_debs.sh without arguments, add new_package to the deb_pkg_list variable in mk_debs.sh.
  4. In the switch block of the make_debian_deb function in mk_debs.sh, add a case for new_package:
    • Call gen_control_file to generate the required control file.
    • Use sed to replace the default "Depends" field with actual dependencies. For example, if new_package depends on dep_pkg1 and dep_pkg2:
      • With dependencies:
        sed -i 's/Depends: .*$/Depends: dep_pkg1,dep_pkg2/' "${deb_dst_dir}"/DEBIAN/control;
      • Without dependencies:
        sed -i 's/Depends: .*$/Depends: /' "${deb_dst_dir}"/DEBIAN/control;
    • (Optional) If source compilation is needed before packaging, add compilation commands—ensuring all outputs go to out/build/debs/new_pkg/debian/.
    • Set is_allowed=1.

7.6.4 Including Deb Packages in Images​

During image building, deb packages are integrated into the board's root filesystem.

Online Image Building​

Process Overview​

When pack_image.sh is run without the -l option, it follows the online image build process:

  1. Retrieve the default build config file from the DEFAULT_CONFIG field in pack_image.sh (e.g., build_params/ubuntu-22.04_desktop_rdk-s100_release.conf).- This configuration file can be specified via the -c option.
  2. Retrieve the RDK_DPKG_DEB_PKG_LIST field from build_params/ubuntu-22.04_desktop_rdk-s100_release.conf;
  3. chroot into the out/deploy/rootfs directory:
    1. Attempt to download all deb packages from the existing on-device apt repositories based on the RDK_DPKG_DEB_PKG_LIST field;
    2. Install all deb packages;

Method to Add Additional Deb Packages​

  1. Identify the name of the package to be installed;
  2. Add the corresponding package name to the RDK_DPKG_DEB_PKG_LIST variable in the specified build configuration file.
Note

For instructions on how to obtain package names, please refer to Method to Obtain Required Deb Package Names

Offline Image Building​

Process Description​

When the -l option is added to pack_image.sh during execution, the offline image building process is triggered. The process is described as follows:

  1. chroot:
    1. Install each deb package based on the existing deb packages in out/product/deb_packages;

Method to Add Additional Deb Packages​

  1. Identify the name of the package to be installed;
  2. Execute the following command to download the corresponding package into out/product/deb_packages:
cd out/product/deb_packages
apt download <package names>
Note

For instructions on how to obtain package names, please refer to Method to Obtain Required Deb Package Names

Method to Obtain Required Deb Package Names​

Package names can be obtained via two methods:

  1. You only know the required file, and the host has never installed the package:
    • It is recommended to use search engines such as Google or Baidu to identify the deb package containing the file and confirm its apt repository. The reference process is as follows:
      • Search for the deb package name by filename on debian.org, noting that you must perform the search under the "Search the contents of packages" section;
      • After confirming the package name, search for its repository on Ubuntu Launchpad to verify that the package exists in components such as main/universe/multiverse under jammy/jammy-updates;
  2. You know the required file, and the host has already installed it:
    • You can obtain the package name using the command dpkg -S <filename>.

7.6.5 Custom Partition Description​

The partition definition file for RDK S100 is stored in the folder source/bootloader/device/rdk/s100/partition_config_files. The default partition table used is: source/bootloader/device/rdk/s100/partition_config_files/s100-gpt.json

{
	"global": {
		"antirollbackUpdate_host": true,
		"antirollbackUpdate_hsm": false,
		"ab_sync": false,
		"backup_dir": "/tmp/ota/backup",
		"AB_part_a": "_a",
		"AB_part_b": "_b",
		"BAK_part_bak": "_bak"
	},
	"fpt": "fpt_common",                //------------------//
	"recovery": "recovery_common",      //                  //
	"misc": "misc_common",              //                  //
	"HB_APDP":"HB_APDP_common",         //                  //
	"keystorage": "keystorage_common",  //                  //
	"HSM_FW": "HSM_FW_common",          //  miniboot_flash  //
	"HSM_RCA": "HSM_RCA_common",        //                  //
	"keyimage": "keyimage_common",      //                  //
	"SBL": "SBL_common",                //                  //
	"scp": "scp_common",                //                  //
	"spl": "spl_common",                //                  //
	"MCU": "MCU_common",                //------------------//

	"quickboot": "quickboot_common",    //------------------// //------------------//
	"veeprom": "veeprom_common",        //                  // //                  //
	"ubootenv": "ubootenv_common",      //                  // //                  //
	"acore_cfg": "acore_cfg_common",    //   miniboot_emmc  // //                  //
	"bl31": "bl31_common",              //                  // //                  //
	"optee": "optee_common",            //                  // //                  //
	"uboot": "uboot_common",            //------------------// //     emmc_disk    //
	"boot": "boot_common",                                     //                  //
	"ota": "ota_common",                                       //                  //
	"log": "log_common",                                       //                  //
	"userdata": "userdata_common",                             //                  //
	"system": "system_common"                                  //------------------//
}

Default Images and Partition Descriptions​

  1. miniboot_flash: Basic boot image stored on the S100 Nor Flash, including images for system components such as HSM/MCU0;
  2. miniboot_emmc: Basic boot image stored on the S100 eMMC, including images for system components such as BL31/Uboot;
  3. emmc_disk: Full image on the S100 eMMC, which includes miniboot_emmc. During compilation, it is automatically converted into an Android Sparse image (Android Sparse Image Format Explanation (third-party website, for reference only)) to reduce system storage space usage;

Configuration File Description​

The overall partition table configuration consists of global shared settings and individual partition settings. Global shared settings are placed under the "global" field and apply to all partitions.

Supported Global Parameters:

  • antirollbackUpdate_host: Whether to update the host's anti-rollback version (true or false);
  • antirollbackUpdate_hsm: Whether to update the HSM's anti-rollback version (true or false);
  • ab_sync: Reserved field for D-Robotics;
  • backup_dir: HSM backup directory;
  • AB_part_a: Suffix for the A partition in AB partitioning;
  • AB_part_b: Suffix for the B partition in AB partitioning;
  • BAK_part_bak: Suffix for backup partitions;

Individual partition configurations follow the format "partition_name": "partition_config_type", allowing different partition configuration types to be selected as needed. For example, for the boot partition, you first need to add a description for the boot partition in the global partition configuration, then create boot.json in the folder source/bootloader/device/rdk/s100/partition_config_files/sub_config and define boot_common as follows:

{
	"boot_common": {
		"components":[
			"${TARGET_DEPLOY_DIR}/rootfs/boot/:60m"
		],
		"pre_cmd": [
			"pack_boot.sh;[ $? -ne 0 ] && exit 1;rm -rf ${TARGET_DEPLOY_DIR}/rootfs/boot/System.map*"
		],
		"post_cmd": [
			"pack_avb_img.sh boot boot"
		],
		"fs_type": "ext4",
		"medium": "emmc",
		"ota_is_update": false,
		"ota_update_mode": "image",
		"part_type": "AB",
		"part_type_guid": "C12A7328-F81F-11D2-BA4B-00A0C93EC93B",
		"size": "60m"
	},
	"boot_ota": {
		"components":[
			"${TARGET_DEPLOY_DIR}/rootfs/boot/:60m"
		],
		"pre_cmd": [
			"pack_boot.sh;[ $? -ne 0 ] && exit 1;rm -rf ${TARGET_DEPLOY_DIR}/rootfs/boot/System.map*"
		],
		"post_cmd": [
			"pack_avb_img.sh boot boot"
		],
		"fs_type": "ext4",
		"medium": "emmc",
		"ota_is_update": true,
		"ota_update_mode": "image",
		"part_type": "AB",
		"part_type_guid": "C12A7328-F81F-11D2-BA4B-00A0C93EC93B",
		"size": "60m"
	}
}

Supported Partition Parameters:

  • depends: Specifies partition dependencies; lists partitions that must be built before the current partition can be built;
  • components: Specifies the contents included in the current partition, which can be sub-image paths or file directories. File directories will be formatted as filesystems. Currently supported filesystems are ext4 and fat16. Append ":" followed by a size to indicate the space this component occupies within the partition. Multiple sub-images are allowed, and it is recommended to place sub-images under the corresponding partition directory in out/xxx/deploy;
  • components_nose: Components for non-secure boot images;
  • pre_cmd: Commands to execute before building the image from the components;
  • post_cmd: Commands to execute after building the image from the components;
  • fs_type: Image filesystem type: None/ext4/fat16/misc;
  • medium: Storage medium for the image: emmc/nor;
  • ota_is_update: Whether the partition is included in full OTA packages;
  • ota_update_mode: OTA update method for the partition; image for full image updates (default), image_diff for differential image updates;
  • is_rootfs: Whether this is the rootfs partition;
  • part_type: Partition type; currently supports AB, BAK, PERMANENT;
  • size: Partition size, with units k, m, or g;
  • magic: Magic value for the partition; only valid for partition images with a flash image header;
  • have_anti_ver: Whether the partition image includes an anti-rollback version (true or false);
  • load_addr: Load address for the image; only valid for partition images with a flash image header;
  • entry_addr: Entry address for the image; only valid for partition images with a flash image header;
  • nose_support: Support for non-secure boot images;
Note
  1. The order of partitions in the JSON file corresponds to the actual partition order on the device;
  2. Partition sizes must be aligned according to the sector size of the storage medium to which the partition belongs;

Partition Modification Instructions​

S100X supports modifying partitions on eMMC/UFS by simply adding, deleting, or modifying the corresponding partition fields in the partition configuration. For modifications to flash partitions, please contact D-Robotics.

Partition Modification Notes
  1. In the partition table, partitions up to and including log are boot partitions, and modifications are generally not recommended.
  2. Other partitions, such as userdata and system, can have their sizes freely adjusted. If adding a new partition, remember to update the fstab file to ensure the partition is properly mounted;

After modifying the partition table, the following steps are required for the changes to take effect:

  1. Build the hobot-miniboot deb package:
    # In RDK Source Root Directory
    ./mk_debs.sh hobot-miniboot
  2. Build the image locally:
    # In RDK Source Root Directory
    sudo ./pack_image.sh -l
tip

The commercial version provides more comprehensive feature support, deeper hardware capability access, and exclusive customization options. To ensure compliance and secure delivery, we will grant access to the commercial version through the following process:

Commercial Version Access Process:

  1. Complete a questionnaire: Submit basic information about your organization and intended use case.
  2. Sign an NDA: We will contact you based on your submission, and both parties will sign a Non-Disclosure Agreement upon mutual confirmation.
  3. Content release: After the agreement is signed, we will provide access to commercial version materials through a private channel.

If you wish to obtain the commercial version, please complete the questionnaire below. We will contact you within 3–5 business days:

Questionnaire link: https://horizonrobotics.feishu.cn/share/base/form/shrcnJQBMIkRm6K79rjXR0hr0Fg

Last updated on
