Meet the BPU¶

Course: RDK Classroom · Chapter 2 Model Zoo · Lesson 1

Boards covered: RDK X5, RDK S100, RDK S100P, RDK S600 (RDK Model Zoo main branch)

Course goal: Understand what the BPU is and how it shares work with the CPU; understand why a floating-point model must be converted and quantized before it can run on the BPU; and use hrt_model_exec and hrut_somstatus on the board to see the BPU at work

Learning format: concept explanation + read-only commands on the board. No PC toolchain is needed for this lesson; you only need a board you can reach over SSH, with network access

Video: Watch on Bilibili (in Chinese)

Slides: Open English HTML slides on GitHub · 中文课件源码

Companion resources¶

Resource	Purpose
RDK Model Zoo	Converted models, board-side inference code, and conversion recipes
ResNet sample directory	The sample used in the hands-on part of this lesson
RDK Resource Center	Official manuals for each board
RDK X5 Algorithm Toolchain Development Guide	X5 toolchain entry point; the reference for versions and environment
RDK S Series Algorithm Toolchain Development Guide	S100 / S100P / S600 toolchain entry point; the reference for versions and environment
X5 PTQ Conversion Principle and Process	The X5 `hb_mapper` conversion flow
S Series hb_compile tool	The S series `hb_compile` conversion tool
hrt_model_exec tool introduction	Inspect models and measure performance on the board

1. What problem does this lesson solve?¶

Start with a contrast: the same ResNet-18 classification model takes about 2.7 ms of pure inference on an RDK X5, and about 0.39 ms on an RDK S600.

But why can't you simply copy the .pt file you trained on your PC onto the board and run it? This lesson answers three questions:

What is the BPU? A unit built for neural networks. How does it share work with the CPU?
Why convert and quantize? Why must a floating-point model be quantized and compiled before it can run on the board?
How do you see the BPU at work? Use board-side commands to view model information, inference speed, and BPU usage.

2. What You Will Be Able to Do¶

Explain how the CPU and BPU divide the work of processing one frame;
Understand the "hybrid heterogeneous model": why a model is split into BPU subgraphs and CPU nodes;
Identify each board's BPU architecture, march, and model format, and know why models cannot be mixed;
Understand the basics of float32 → int8 quantization, calibration, and accuracy checks;
Name the five stages of the official development flow and the tools used on X5 and on the S series;
Run a read-only test on the board with hrt_model_exec model_info / perf and hrut_somstatus.

3. What the BPU is and why it exists¶

BPU stands for Brain Processing Unit. It is the unit in D-Robotics chips dedicated to accelerating neural network inference.

The heaviest part of neural network inference is fixed-point math such as convolution and matrix multiplication, repeated over and over. The CPU is good at general-purpose logic but not at doing the same operation many thousands of times; the BPU is built around an array of multiply-accumulate (MAC) units designed for exactly that.

	CPU	BPU
Good at	General logic, branching	Fixed-point math such as convolution and matrix multiplication
Role in a vision app	Pre-processing (resizing, color-format conversion) and post-processing (drawing boxes, NMS)	The heaviest part of neural network inference

About the GPU

The RDK S100 also has a Mali-G78AE GPU, but it is not the focus of this chapter. Model acceleration in this chapter always means the BPU.

3.1 How one frame gets processed¶

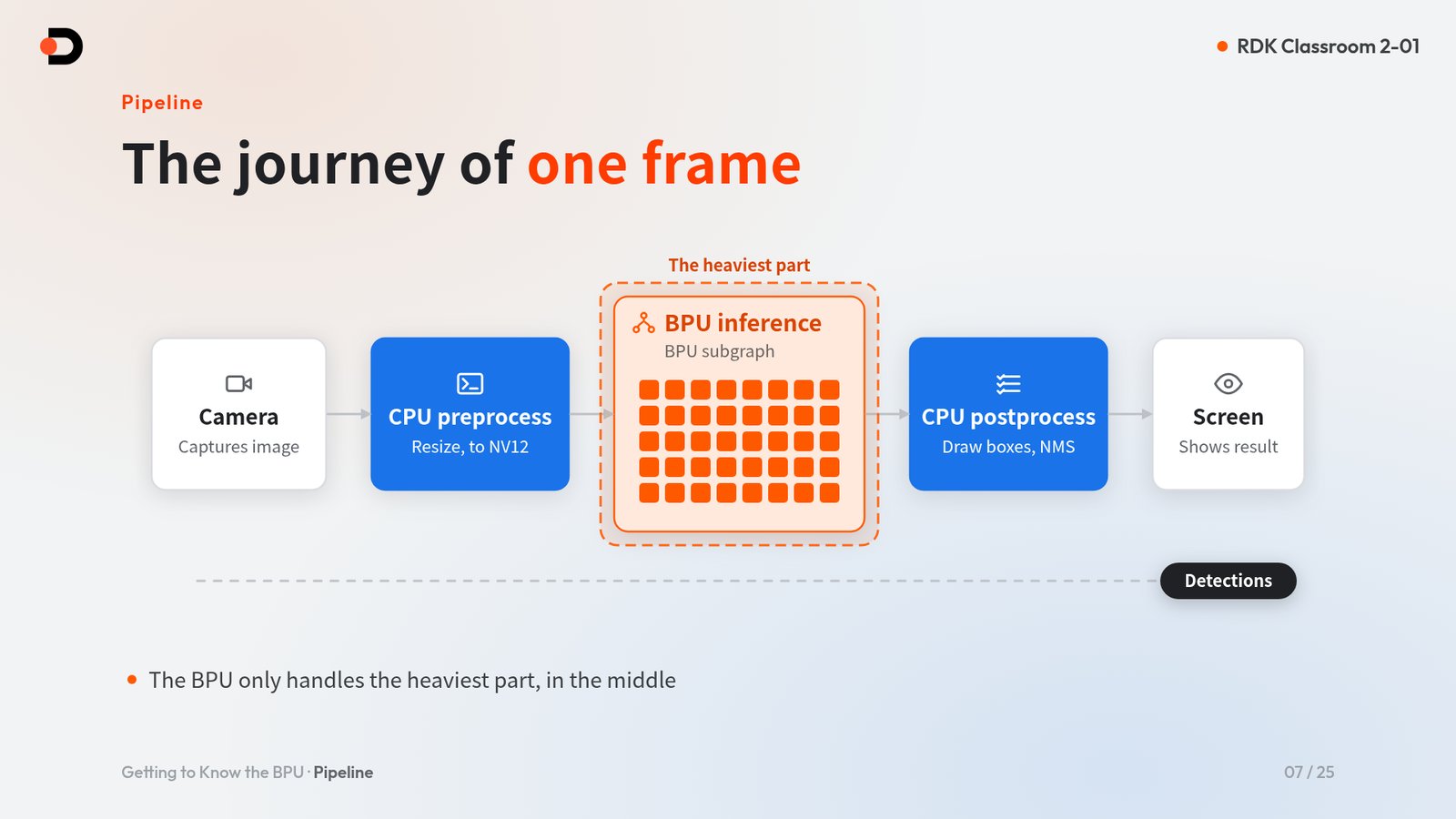

The pipeline for one frame: camera → CPU pre-processing → BPU inference → CPU post-processing → screen

Take camera-based detection as an example. One frame passes through this pipeline:

The camera captures an image;
CPU pre-processing: resize and convert to NV12;
BPU inference: run the model's BPU subgraph;
CPU post-processing: draw boxes, NMS;
The screen shows the result.

The BPU handles only the heaviest stage in the middle; both ends still run on the CPU. So end-to-end frame rate depends not only on the BPU but also on how well pre- and post-processing are written.

4. Hybrid heterogeneous models: not everything runs on the BPU¶

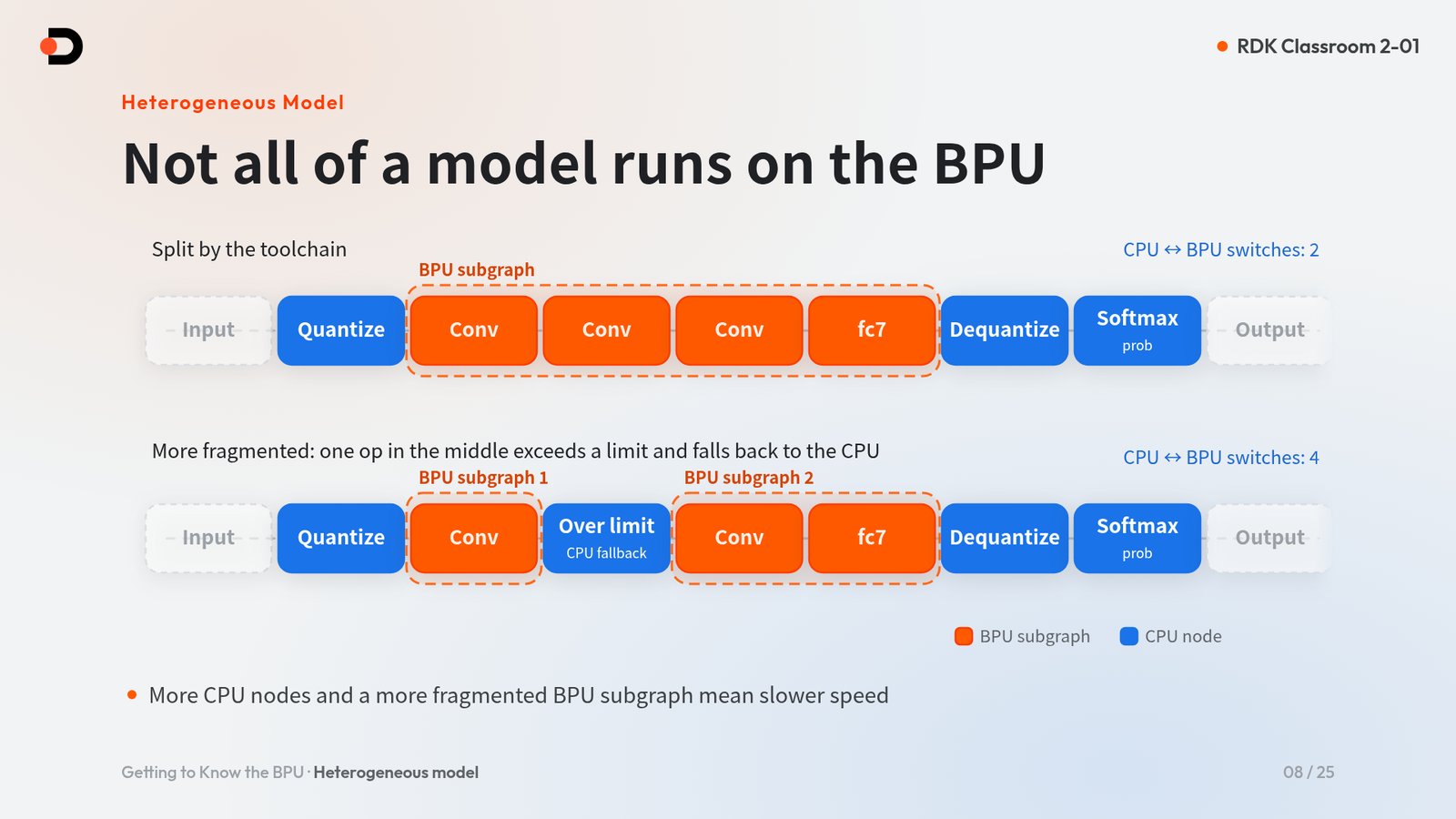

A model after toolchain partitioning: BPU subgraphs and CPU nodes

When the toolchain converts a model, it splits it into BPU subgraphs and CPU nodes. Such a model is called a hybrid heterogeneous model. Using ResNet-18 as an example:

The Conv … fc7 layers in the middle form one BPU subgraph that runs on the BPU;
Quantize at the input, Dequantize at the output, and Softmax (prob) run on the CPU;
There are only 2 CPU ↔ BPU switches in total.

If an operator in the middle exceeds the BPU's limits, it falls back to the CPU and splits the single BPU subgraph into two, raising the number of switches to 4. Each switch costs data movement: the more CPU nodes and the more fragmented the BPU subgraphs, the slower the model runs.

You can see where each operator lands with the toolchain's checker tool on the PC; it lists the placement of every operator (see Sections 7 and 8).

5. The four boards' BPUs¶

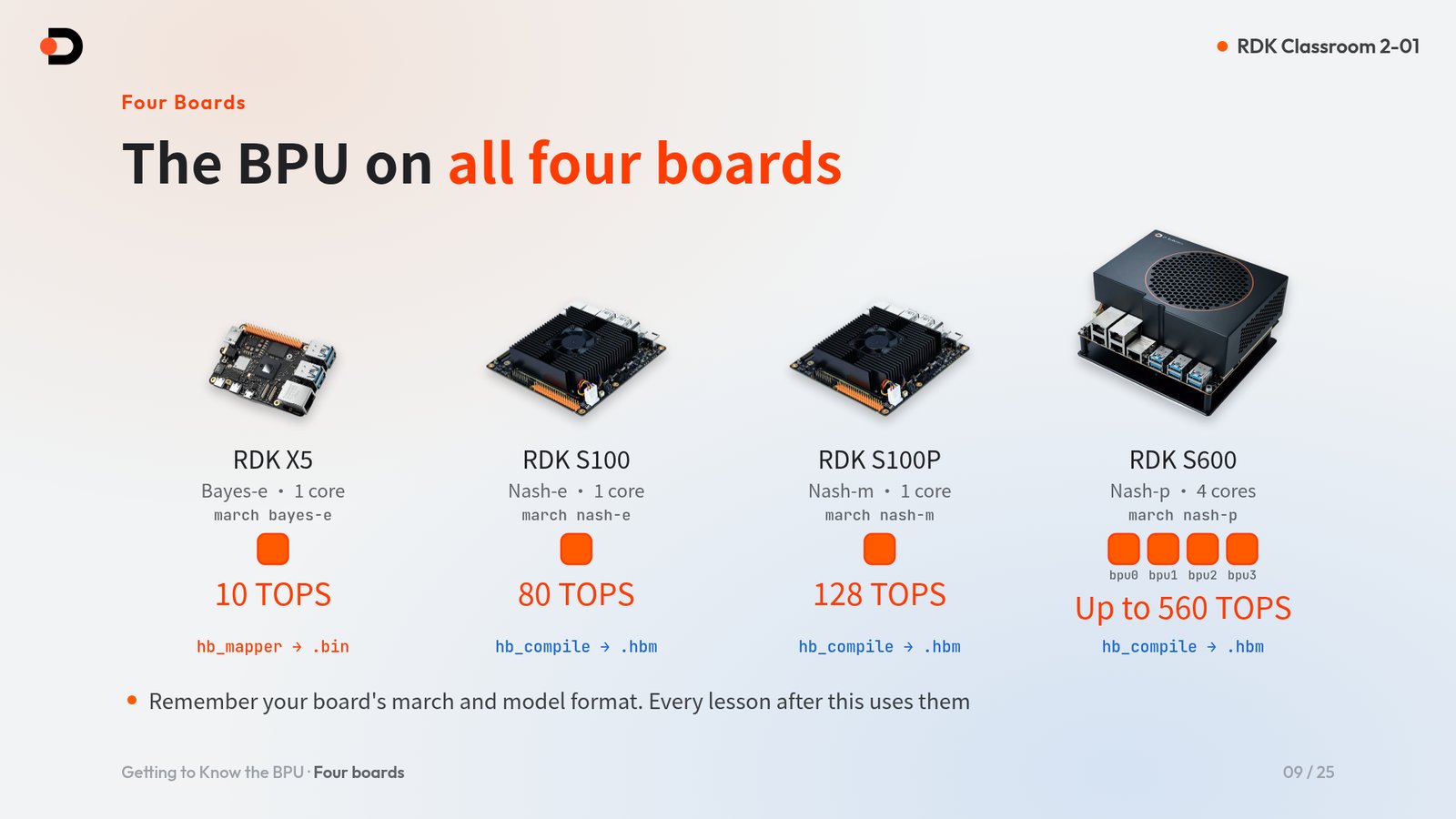

The BPUs of the four boards at a glance

Board	BPU architecture	`march`	BPU cores	Compute	Conversion tool → model format
RDK X5	Bayes-e	`bayes-e`	1	10 TOPS	`hb_mapper` → `.bin`
RDK S100	Nash-e	`nash-e`	1	80 TOPS	`hb_compile` → `.hbm`
RDK S100P	Nash-m	`nash-m`	1	128 TOPS	`hb_compile` → `.hbm`
RDK S600	Nash-p	`nash-p`	4 (bpu0–bpu3)	Up to 560 TOPS	`hb_compile` → `.hbm`

The three S series boards (S100, S100P, S600) share the same toolchain image. For the exact toolchain and image versions, see the toolchain docs.

Remember your board's march and model format; every later lesson uses them.

5.1 Model formats cannot be mixed¶

An X5 .bin will not run on the S series;
An S100P cannot use an S100 .hbm either: nash-e and nash-m are different march values;
Never rename a .hbm to .bin to pass it off as one.

Model inputs also differ between boards. For the Model Zoo ResNet-18:

Board	Input
RDK X5	1 input: one packed NV12 tensor, `1×3×224×224`
S series	2 inputs: a Y plane `(1, 224, 224, 1)` and a UV plane `(1, 112, 112, 2)`

For the exact input names and shapes, go by the output of hrt_model_exec model_info on the board (see Section 9.3).

Exception

X5 can also produce a .hbm through the QAT route. This chapter does not cover it.

6. Conversion and quantization: why a .pt can't run on the board¶

The model you train on a PC is a float32 floating-point model, while the BPU runs int8 fixed-point math and needs a model compiled for its specific architecture (march). So the model must first be converted: optimized, quantized, and compiled.

6.1 float32 → int8¶

	float32	int8
Size per number	4 bytes	1 byte
Representable values	Continuous floating-point	256 levels

Each number shrinks from 4 bytes to 1 byte, and the math can run on the BPU's fixed-point MAC array. According to the official documentation, the accuracy loss after quantization is within 1% for most typical models.

6.2 Calibration: telling quantization each layer's range¶

int8 has only 256 levels, so before quantizing you need to know roughly what range each layer's values fall in. This step is called calibration: run a batch of representative images through the floating-point model and record each layer's value distribution.

The X5 docs suggest 20–100 calibration images;
The Model Zoo ResNet conversion uses a fixed set of 200 COCO images.

6.3 Always check accuracy after quantization¶

"Conversion succeeded" does not mean "accuracy is acceptable". Check at two levels:

Cosine similarity per output node: the Model Zoo standard is ≥ 0.999 for every output node, and never below 0.99;
Task accuracy, such as ResNet-18 Top-1.

ResNet-18	Top-1
Floating-point model	59.35%
On RDK X5	58.91%
On RDK S100	58.79%

6.4 PTQ or QAT?¶

PTQ (post-training quantization) is the default main path: no retraining, just quantize directly with calibration data;
QAT (quantization-aware training) requires retraining and has a higher bar. Consider it only if accuracy still falls short after tuning PTQ.

7. The official five-stage development flow¶

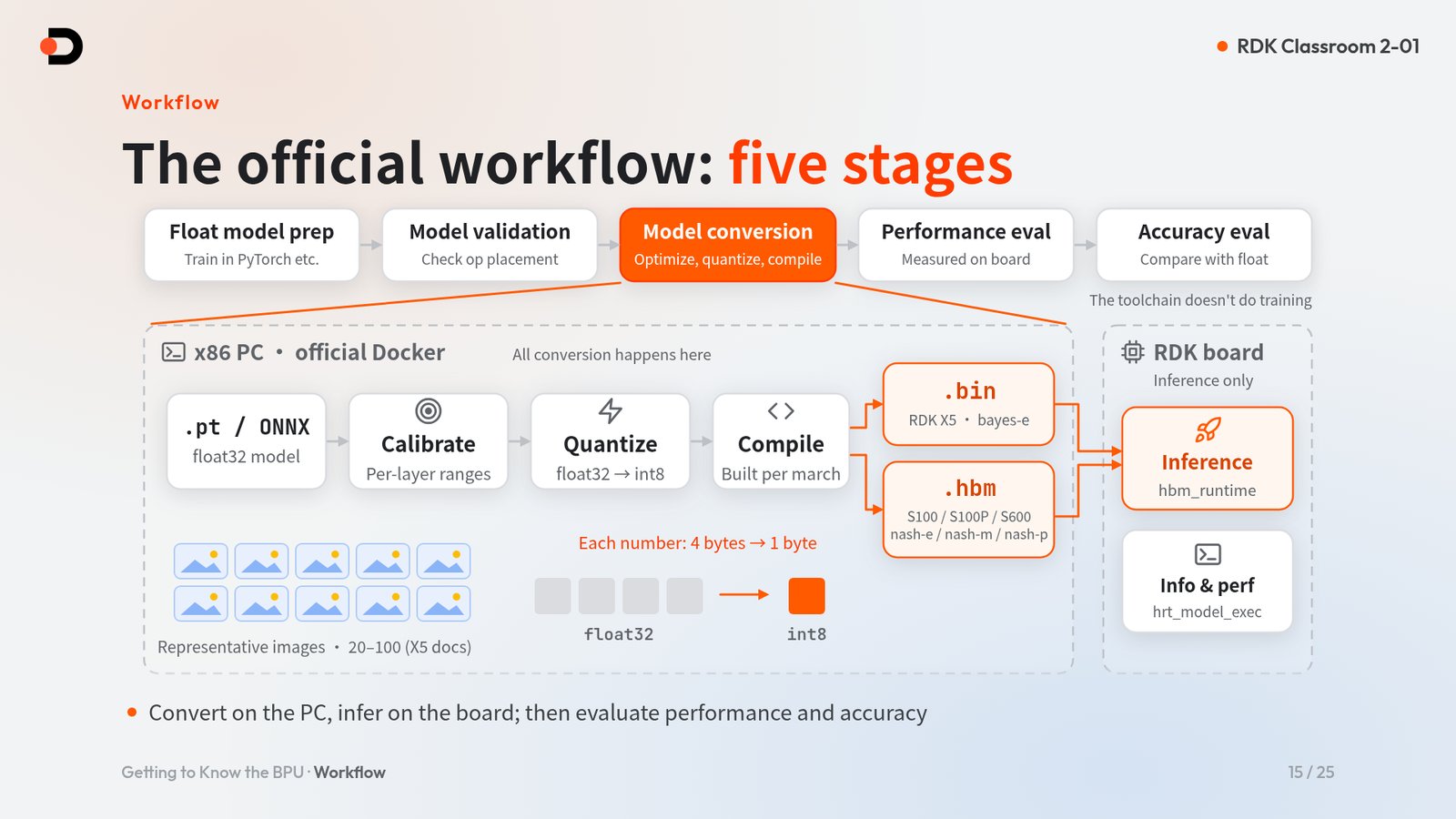

The official workflow: five stages

The official flow divides model deployment into five stages:

Float model preparation: train the model in PyTorch or a similar framework. The toolchain does not do training;
Model validation: check operator placement to see which operators can go on the BPU;
Model conversion: optimize, quantize, compile;
Performance evaluation: measure speed on the board;
Accuracy evaluation: compare accuracy against the floating-point model.

The conversion chain is: PyTorch → ONNX (float32) → calibrate → quantize → compile per march → .bin for X5, .hbm for the S series.

Convert on the PC, infer on the board

All conversion happens in the official Docker on an x86 PC. The board only runs inference: hbm_runtime for inference, and hrt_model_exec to inspect models and measure performance.

7.1 Tools for each step¶

Step	RDK X5	S series (S100 / S100P / S600)
Export	PyTorch → ONNX	PyTorch → ONNX
Model check	`hb_mapper checker --march bayes-e`	`hb_compile -m <model> --march nash-*`
Quantize + compile	`hb_mapper makertbin` → `.bin`	`hb_config_generator` + `hb_compile -c` → `.hbm`
On-board inference	Python `hbm_runtime` or the C/C++ API	Same

For toolchain versions and Docker images, see the toolchain docs: RDK X5 Algorithm Toolchain Development Guide · RDK S Series Algorithm Toolchain Development Guide.

8. What Model Zoo saves you¶

RDK Model Zoo saves you three things along this chain:

What it saves	Details
Converted models	Most samples offer `.bin` / `.hbm` downloads that are ready to run
Board-side inference code	Pre-processing, inference, and post-processing code is already written
Conversion recipes	Follow the `conversion/` directory to convert your own model

Take samples/vision/resnet/ as an example: it contains model/, conversion/, and runtime/, which map to the three parts of the rest of this chapter.

Since RDK Model Zoo v2.0.0, RDK X5, RDK S100, RDK S100P, and RDK S600 all use the main branch. There is one codebase, but models are still board-specific: .bin for X5 and .hbm for the S series. At run time, choose the board with the --target or --platform option declared in each sample's README.

8.1 Operator placement and fallback¶

When you bring your own model to the board, two kinds of operator problems come up most often:

Case	Symptom	What to do
Unsupported operator	The checker fails with `HorizonRT not support these cpu operators`	Check the operator constraint list, or use a custom operator
Operator beyond BPU limits	For example, a shape (C×H×W) above 8192 falls back to the CPU	It runs, but the BPU subgraph is split; CPU ↔ BPU switches go from 2 to 4 and the model slows down

Whether a model can run on the board and how fast it runs there are two different questions. Checking operator placement with the checker before conversion saves far more time than hunting for the cause afterwards.

9. Hands-on: see the BPU at work¶

All commands in this section are read-only and work on all four boards. Log in to the board's terminal and run them in order.

9.1 Identify your board¶

Check how many BPU cores there are:

cat /sys/devices/system/bpu/core_num
ls /sys/devices/system/bpu/

X5, S100, and S100P print 1; S600 prints 4, and you can see four directories, bpu0 to bpu3.

Check the board identity:

cat /sys/class/boardinfo/soc_name /sys/class/socinfo/soc_name 2>/dev/null | tr -d '\0'

X5 prints one of X5U, X5H, or X5M; the S series prints S100, S100P, or S600. Model Zoo samples select the board through the --target / --platform option declared in each README; samples whose README offers --target auto identify the board automatically from this kind of hardware identity.

9.2 Download the ResNet-18 model¶

Clone Model Zoo on the board and run the download script from the repository root:

git clone https://github.com/D-Robotics/rdk_model_zoo.git
cd rdk_model_zoo
bash samples/vision/resnet/model/download.sh x5 18

For another board, change x5 to s100, s100p, or s600. X5 gets resnet18_bayese_224x224_nv12.bin; the S series boards get the matching .hbm (with nashe / nashm / nashp in the file name).

9.3 View model information¶

hrt_model_exec model_info --model_file <model_file>

hrt_model_exec is preinstalled on all four boards; there is nothing extra to install. In the output, look at:

input[...]: input names and valid shape (compare with Section 5.1: one NV12 input on X5, separate Y and UV inputs on the S series);
output[...]: ResNet-18 outputs a 1000-class result, valid shape: (1,1000);
MARCH in [model desc]: it should match your board.

9.4 Measure pure inference performance¶

hrt_model_exec perf --model_file <model_file> --frame_count=200

The syntax is the same on all four boards. In the Perf result at the end of the output, focus on two lines: Average latency (average per-frame latency) and Frame rate.

To measure throughput under concurrency, add --thread_num=<N>:

Key point

--thread_num=<N> is the number of concurrent test threads, not the number of cores: 1–8 on X5, 1–32 on the S series. For a multi-core model, use --core_id to specify the same number of cores as core_num. core_id numbering starts at 1, and 1 means bpu0.

9.5 Check BPU usage¶

While perf is running, open a second terminal and run:

# RDK X5
hrut_somstatus

# RDK S100 / S100P
hrut_somstatus | grep -A4 -i "bpu status"

# RDK S600 (lists bpu0..bpu3 separately)
hrut_somstatus | grep -A6 -i "bpu status"

On X5, read the bpu status section directly; the S series output is longer, so filter it with grep. Here is one sample measured on the S600 while a 4-thread perf run was in progress:

bpu status information---->
        ratio
    bpu0:   70
    bpu1:   64
    bpu2:   41
    bpu3:   18

Check again after perf finishes and every core's usage drops back to 0.

9.6 Reading the results¶

Model Zoo README reference: ResNet-18 average per-frame latency (measured with the CPU governor in performance mode)

Board	Average latency
RDK X5	2.740 ms
RDK S100	0.631 ms
RDK S100P	0.534 ms
RDK S600	0.394 ms

If your results are far off, first check that the CPU is in performance mode.

Measured on S600 · ResNet-18 (--frame_count=200)

`--thread_num`	Average latency	Frame rate
1	0.387 ms	2508 FPS
4	0.522 ms	7440 FPS
12	0.927 ms	12512 FPS

More threads give higher total throughput, while per-inference latency rises slightly. In deployment, choose your concurrency based on whether the application cares more about latency or throughput.

10. Five rules for beginners¶

march and model format map one to one: never reuse models, Runtime, or wheels across platforms;
PTQ first; move to QAT only if PTQ falls short;
Convert in the official Docker on an x86 PC;
Check operator placement with the checker first, then prepare calibration data and the YAML config;
Test performance and accuracy after every conversion; don't stop at "conversion succeeded". On the board, use the system hbm_runtime, not the PyPI package of the same name.

11. Frequently Asked Questions¶

Q1: Can I copy a .pt trained on my PC straight onto the board?¶

No. The BPU only runs models that have been quantized and compiled for the board's march: .bin on X5 and .hbm on the S series. Convert the model in the official Docker on a PC first, or use a converted model from Model Zoo.

Q2: Can an S100 .hbm be used on an S100P or S600?¶

No. The march values of S100, S100P, and S600 are nash-e, nash-m, and nash-p, and a model must be compiled for each. When you use the Model Zoo download script, pass the matching board argument to get the right model.

Q3: The conversion succeeded, so why isn't it fast?¶

Whether a model can run on the board and how fast it runs are two different questions. If operators fall back to the CPU, the BPU subgraph is split and CPU ↔ BPU switches increase. Check operator placement with the checker, and check that the board's CPU is in performance mode.

Q4: Does `--thread_num=4` mean four BPU cores are used?¶

No. --thread_num is the number of concurrent test threads, not the number of cores. For a multi-core model, use --core_id to specify the same number of cores as core_num.

Q5: Do I need to install the toolchain for this lesson's hands-on part?¶

No. This lesson only runs read-only commands on the board; hrt_model_exec and hrut_somstatus are preinstalled. A board you can reach over SSH, with network access, is all you need.

Lesson Summary¶

The BPU is a unit dedicated to accelerating neural network inference: the CPU handles general logic and pre/post-processing, while the BPU handles the heaviest fixed-point math;
A converted model is a hybrid heterogeneous model; the more CPU nodes and the more fragmented the BPU subgraphs, the slower it runs;
Each of the four boards has its own march: .bin for X5, .hbm for the S series, and models cannot be mixed;
A floating-point model needs calibration, int8 quantization, and compilation before it can run on the board, and accuracy must be checked afterwards;
Conversion happens in the official Docker on a PC; the board only runs inference;
Model Zoo provides converted models, board-side code, and conversion recipes, and since v2.0.0 all four boards use the main branch.

Completion Checklist¶

I can name my board's BPU architecture, march, core count, and model format;
I can explain why a .pt cannot run directly on the board;
I downloaded the ResNet-18 model that matches my board with download.sh;
I viewed the model's inputs and outputs with hrt_model_exec model_info;
I measured Average latency and Frame rate with hrt_model_exec perf and compared them with the README reference;
I watched BPU usage change in a second terminal with hrut_somstatus.

Extension Exercises¶

Run perf with different --thread_num values and record how Average latency and Frame rate change;
Run hrut_somstatus several times while perf is running and watch how BPU usage changes as the test starts and ends;
Read the algorithm toolchain development guide for your board, find the description of the checker tool, and see how it lists operator placement.

Appendix: Command Quick Reference¶

# BPU core count
cat /sys/devices/system/bpu/core_num

# Board identity
cat /sys/class/boardinfo/soc_name /sys/class/socinfo/soc_name 2>/dev/null | tr -d '\0'

# Download ResNet-18 (from the rdk_model_zoo repository root; replace x5 with s100 / s100p / s600)
bash samples/vision/resnet/model/download.sh x5 18

# Model information
hrt_model_exec model_info --model_file <model_file>

# Pure inference performance
hrt_model_exec perf --model_file <model_file> --frame_count=200

# BPU usage (run directly on X5; use -A4 on S100 / S100P and -A6 on S600)
hrut_somstatus
hrut_somstatus | grep -A6 -i "bpu status"

The next lesson covers Opening Model Zoo: how the main branch supports all four boards with one codebase, running your first sample, and seeing ResNet-18 output white wolf.
