hbmem sample

功能概述

hbmem api使用说明，包括com buffer、graphic buffer、graphic buffer group、queue、pool、share pool的创建使用，多进程共享等。

软件架构说明

本sample基于libhbmem API实现，调用libhbmem提供的API，实现不同buffer类型的内存申请和进程间共享。

代码位置及目录结构

1. 代码位置：/app/communication_demo/hbmem_demo/sample_hbmem
2. 目录结构：
    ./
    ├── Makefile
    ├── sample_alloc.c
    ├── sample.c
    ├── sample_common.c
    ├── sample_common.h
    ├── sample_pool.c
    ├── sample_queue.c
    ├── sample_share.c
    └── sample_share_pool.c

API流程说明

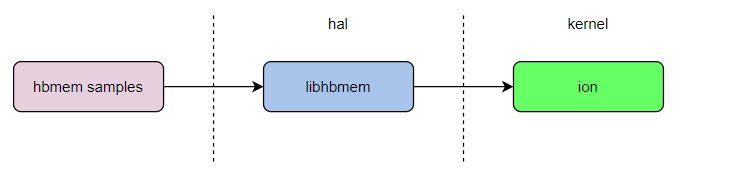

libhbmem库调用ion进行buffer分配

![hbmem_sample_call_sequence]https://rdk-doc.oss-cn-beijing.aliyuncs.com/doc/img/07_Advanced_development/03_multimedia_development/02 _S100/hbmem/hbmem_sample_call_sequence.png)

com buffer、graph buffer、graphic buffer group 分配流程图

queue使用流程图

pool使用流程图

share pool 使用流程图

编译

编译环境

本sample支持在板端直接编译。

编译说明

本sample主要依赖libhbmem提供的头文件：

#include <hb_mem_mgr.h>
#include <hb_mem_err.h>

编译依赖的库有如下：

LIBS += -lhbmem -lpthread -lalog -ldl -lstdc++

编译命令

# 进入sample所在目录：
cd /app/communication_demo/hbmem_demo/sample_hbmem
# 编译本sample:
make
# 输出文件:
/app/communication_demo/hbmem_demo/sample_hbmem/libhbmem_sample

运行

支持平台

• RDK S100/RDK S100P

运行指南

运行方法

创建com buffer

/app/communication_demo/hbmem_demo/sample_hbmem/libhbmem_sample -m 1

创建cache，noncached com buffer，赋值，比较耗时

/app/communication_demo/hbmem_demo/sample_hbmem/libhbmem_sample -m 2

在各个heaps里，创建com buffer

/app/communication_demo/hbmem_demo/sample_hbmem/libhbmem_sample -m 3

创建graph buffer

/app/communication_demo/hbmem_demo/sample_hbmem/libhbmem_sample -m 4

在各个heaps里，创建graph buffer

/app/communication_demo/hbmem_demo/sample_hbmem/libhbmem_sample -m 5

创建graph buffer group

/app/communication_demo/hbmem_demo/sample_hbmem/libhbmem_sample -m 6

在各个heaps里，创建graph buffer group

/app/communication_demo/hbmem_demo/sample_hbmem/libhbmem_sample -m 7

进程内common buffer共享

/app/communication_demo/hbmem_demo/sample_hbmem/libhbmem_sample -m 8

进程内common buffer共享，consume_cnt

/app/communication_demo/hbmem_demo/sample_hbmem/libhbmem_sample -m 9

进程间common buffer共享

/app/communication_demo/hbmem_demo/sample_hbmem/libhbmem_sample -m 10

进程内graphic buffer共享

/app/communication_demo/hbmem_demo/sample_hbmem/libhbmem_sample -m 11

进程内graphic buffer共享，consume_cnt

/app/communication_demo/hbmem_demo/sample_hbmem/libhbmem_sample -m 12

进程间graphic buffer共享

/app/communication_demo/hbmem_demo/sample_hbmem/libhbmem_sample -m 13

进程内graphic buffer group共享

/app/communication_demo/hbmem_demo/sample_hbmem/libhbmem_sample -m 14

进程内graphic buffer group共享，consume_cnt

/app/communication_demo/hbmem_demo/sample_hbmem/libhbmem_sample -m 15

进程间graphic buffer group共享

/app/communication_demo/hbmem_demo/sample_hbmem/libhbmem_sample -m 16

进程间share pool 共享

/app/communication_demo/hbmem_demo/sample_hbmem/libhbmem_sample -m 17

share pool使用

/app/communication_demo/hbmem_demo/sample_hbmem/libhbmem_sample -m 18

buffer queue 使用

/app/communication_demo/hbmem_demo/sample_hbmem/libhbmem_sample -m 19

pool使用

/app/communication_demo/hbmem_demo/sample_hbmem/libhbmem_sample -m 20

在graphic buffer与common buffer之间实现buffer转换

/app/communication_demo/hbmem_demo/sample_hbmem/libhbmem_sample -m 21

增加common buffer用户态引用计数

/app/communication_demo/hbmem_demo/sample_hbmem/libhbmem_sample -m 22

增加graphic buffer用户态引用计数

/app/communication_demo/hbmem_demo/sample_hbmem/libhbmem_sample -m 23

运行参数说明

• -m 指定sample用例，具体见运行结果展示

测试结果说明

• 如果log最后以xxxx done结尾，则表示sample执行成功

运行结果展示

创建com buffer

/app/communication_demo/hbmem_demo/sample_hbmem/libhbmem_sample -m 1
sample_mode = 1
=================================================
Ready to sample_alloc_com_buf
alloc com buf, share_id: 16
[1752:1752] Do system command cat /sys/kernel/debug/ion/clients/1752*.
        heap_name:    size_in_bytes :  handle refcount :    handle import :       buffer ptr :  buffer refcount :  buffer share id : buffer share count
        ion_cma:           400000 :                1 :                1 :         fd48e1ab :                3:               16 :                1
[1752:1752] Do system command cat /sys/kernel/debug/ion/heaps/ion_cma | grep -w 1752 | grep -w libhbmem_sample.
        libhbmem_sample             1752          4194304
        libhbmem_sample             1752            other          4194304 0
[1752:1752] Result 0.
free com buf
[1752:1752] Do system command cat /sys/kernel/debug/ion/clients/1752*.
        heap_name:    size_in_bytes :  handle refcount :    handle import :       buffer ptr :  buffer refcount :  buffer share id : buffer share count
[1752:1752] Do system command cat /sys/kernel/debug/ion/heaps/ion_cma | grep -w 1752 | grep -w libhbmem_sample.
[1752:1752] Result 256.
sample_alloc_com_buf done
=================================================

（其他运行结果展示部分保持原有文本结构，仅作格式转换和关键词替换，此处略去重复内容）
