hbmem sample usage instructions

Function Overview​

Instructions for using hbmem APIs, including creation and usage of com buffer, graphic buffer, graphic buffer group, queue, pool, share pool, and multi-process sharing.

Software Architecture Description​

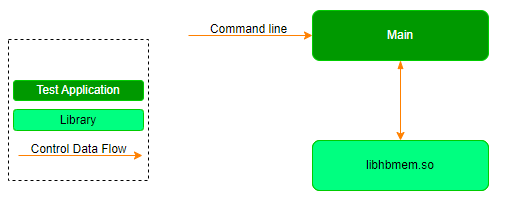

This sample is implemented based on the libhbmem API, invoking APIs provided by libhbmem to allocate memory for different buffer types and enable inter-process sharing.

hbmem_sample_block_diagram

Code Location and Directory Structure​

1. Code location: /app/communication_demo/hbmem_demo/sample_hbmem
2. Directory structure:
    ./
    ├── Makefile
    ├── sample_alloc.c
    ├── sample.c
    ├── sample_common.c
    ├── sample_common.h
    ├── sample_pool.c
    ├── sample_queue.c
    ├── sample_share.c
    └── sample_share_pool.c

API Workflow Description​

The libhbmem library calls ION to allocate buffers.

hbmem_sample_call_sequence

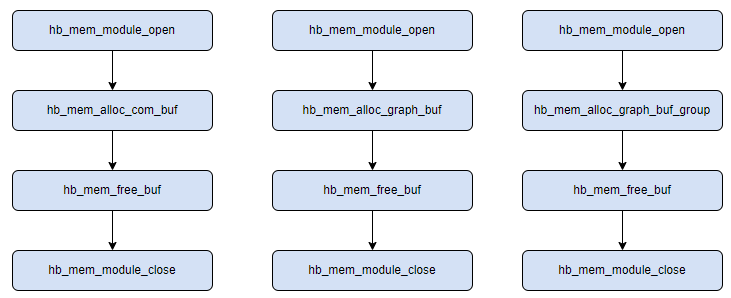

Allocation flowchart for com buffer, graph buffer, and graphic buffer group:

hbmem_alloc_buf

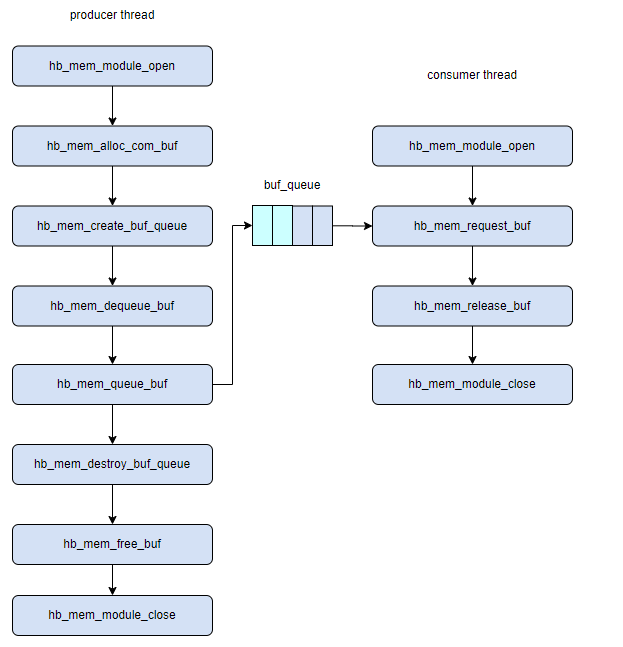

Queue usage flowchart:

hbmem_queue

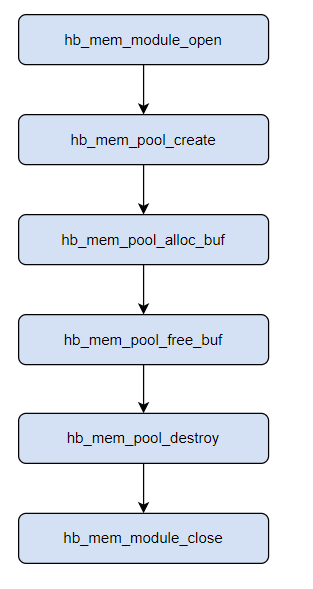

Pool usage flowchart:

hbmem_pool

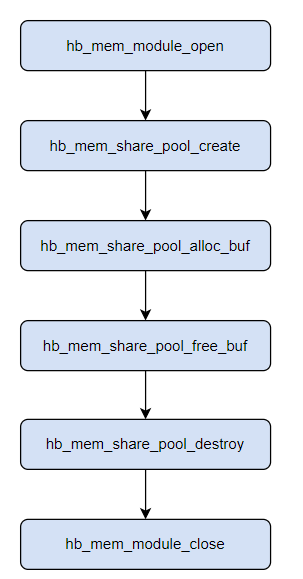

Share pool usage flowchart:

hbmem_share_pool

Compilation​

Compilation Environment​

This sample supports direct compilation on the board.

Compilation Instructions​

This sample primarily depends on header files provided by libhbmem:

#include <hb_mem_mgr.h>
#include <hb_mem_err.h>

Compilation dependencies include the following libraries:

LIBS += -lhbmem -lpthread -lalog -ldl -lstdc++

Compilation Commands​

# Enter the sample directory:
cd /app/communication_demo/hbmem_demo/sample_hbmem
# Compile the sample:
make
# Output file:
/app/communication_demo/hbmem_demo/sample_hbmem/libhbmem_sample

Execution​

Supported Platforms​

  • RDK S100 / RDK S100P

Running Guide​

Execution Methods​

Create a com buffer:

/app/communication_demo/hbmem_demo/sample_hbmem/libhbmem_sample -m 1

Create cached and non-cached com buffers, perform assignment, and measure execution time:

/app/communication_demo/hbmem_demo/sample_hbmem/libhbmem_sample -m 2

Create com buffers in various heaps:

/app/communication_demo/hbmem_demo/sample_hbmem/libhbmem_sample -m 3

Create a graphic buffer:

/app/communication_demo/hbmem_demo/sample_hbmem/libhbmem_sample -m 4

Create graphic buffers in various heaps:

/app/communication_demo/hbmem_demo/sample_hbmem/libhbmem_sample -m 5

Create a graphic buffer group:

/app/communication_demo/hbmem_demo/sample_hbmem/libhbmem_sample -m 6

Create graphic buffer groups in various heaps:

/app/communication_demo/hbmem_demo/sample_hbmem/libhbmem_sample -m 7

Intra-process common buffer sharing:

/app/communication_demo/hbmem_demo/sample_hbmem/libhbmem_sample -m 8

Intra-process common buffer sharing with consume_cnt:

/app/communication_demo/hbmem_demo/sample_hbmem/libhbmem_sample -m 9

Inter-process common buffer sharing:

/app/communication_demo/hbmem_demo/sample_hbmem/libhbmem_sample -m 10

Intra-process graphic buffer sharing:

/app/communication_demo/hbmem_demo/sample_hbmem/libhbmem_sample -m 11

Intra-process graphic buffer sharing with consume_cnt:

/app/communication_demo/hbmem_demo/sample_hbmem/libhbmem_sample -m 12

Inter-process graphic buffer sharing:

/app/communication_demo/hbmem_demo/sample_hbmem/libhbmem_sample -m 13

Intra-process graphic buffer group sharing:

/app/communication_demo/hbmem_demo/sample_hbmem/libhbmem_sample -m 14

Intra-process graphic buffer group sharing with consume_cnt:

/app/communication_demo/hbmem_demo/sample_hbmem/libhbmem_sample -m 15

Inter-process graphic buffer group sharing:

/app/communication_demo/hbmem_demo/sample_hbmem/libhbmem_sample -m 16

Inter-process share pool sharing:

/app/communication_demo/hbmem_demo/sample_hbmem/libhbmem_sample -m 17

Share pool usage:

/app/communication_demo/hbmem_demo/sample_hbmem/libhbmem_sample -m 18
```buffer queue usage

```bash
/app/communication_demo/hbmem_demo/sample_hbmem/libhbmem_sample -m 19

pool usage

/app/communication_demo/hbmem_demo/sample_hbmem/libhbmem_sample -m 20

Implement buffer conversion between graphic buffer and common buffer

/app/communication_demo/hbmem_demo/sample_hbmem/libhbmem_sample -m 21

Increment user-space reference count of common buffer

/app/communication_demo/hbmem_demo/sample_hbmem/libhbmem_sample -m 22

Increment user-space reference count of graphic buffer

/app/communication_demo/hbmem_demo/sample_hbmem/libhbmem_sample -m 23

Runtime Parameter Description​

  • -m specifies the sample test case; refer to the execution output for details.

Test Result Description​

  • If the log ends with xxxx done, it indicates the sample executed successfully.

Execution Output Examples​

Create com buffer​

/app/communication_demo/hbmem_demo/sample_hbmem/libhbmem_sample -m 1
sample_mode = 1
=================================================
Ready to sample_alloc_com_buf
alloc com buf, share_id: 16
[1752:1752] Do system command cat /sys/kernel/debug/ion/clients/1752*.
        heap_name:    size_in_bytes :  handle refcount :    handle import :       buffer ptr :  buffer refcount :  buffer share id : buffer share count
        ion_cma:           400000 :                1 :                1 :         fd48e1ab :                3:               16 :                1
[1752:1752] Do system command cat /sys/kernel/debug/ion/heaps/ion_cma | grep -w 1752 | grep -w libhbmem_sample.
        libhbmem_sample             1752          4194304
        libhbmem_sample             1752            other          4194304 0
[1752:1752] Result 0.
free com buf
[1752:1752] Do system command cat /sys/kernel/debug/ion/clients/1752*.
        heap_name:    size_in_bytes :  handle refcount :    handle import :       buffer ptr :  buffer refcount :  buffer share id : buffer share count
[1752:1752] Do system command cat /sys/kernel/debug/ion/heaps/ion_cma | grep -w 1752 | grep -w libhbmem_sample.
[1752:1752] Result 256.
sample_alloc_com_buf done
=================================================

(Other execution output examples retain the original text structure, with only formatting and keyword adjustments applied; repetitive content omitted here.)
